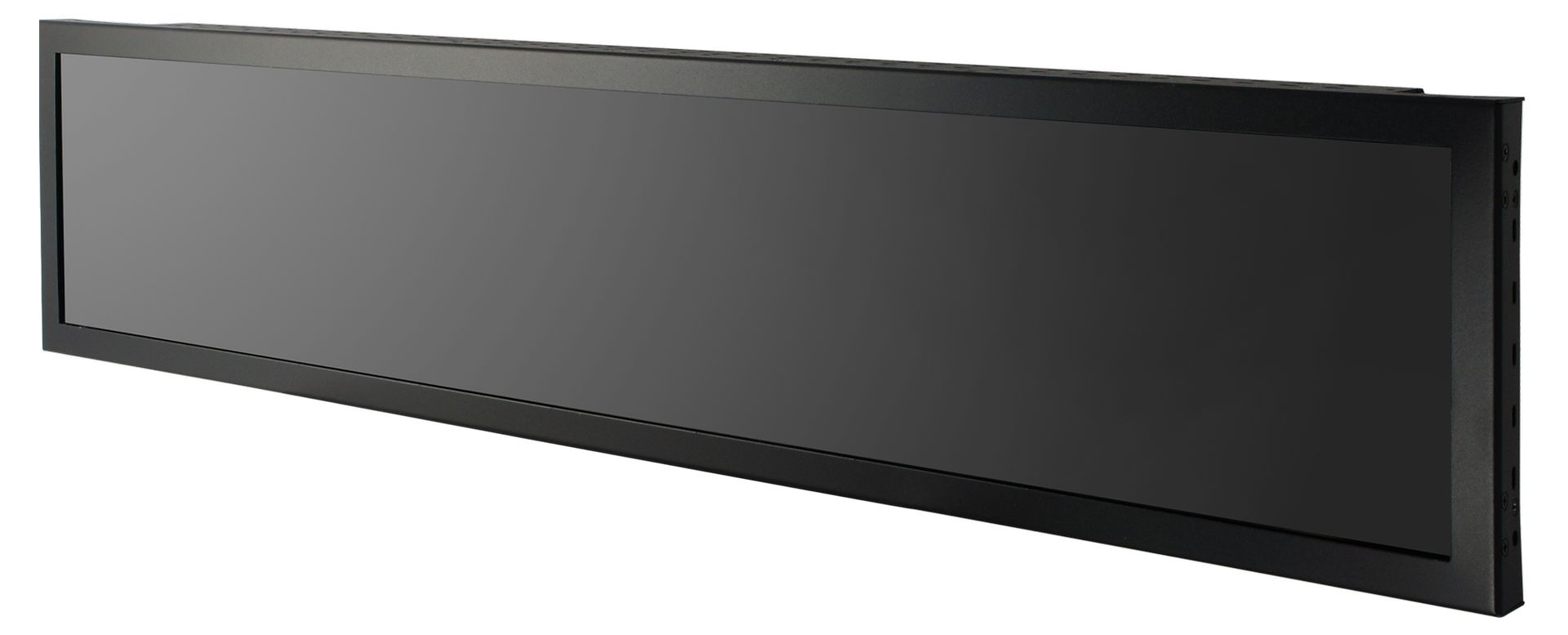

Bar-Type Panel PC
The product is EOL (End Of Life)!
// 27.6" TFT LCD Panel-PC
// Intel Atom E3825
// Passive cooled
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// 64 GB SSD (mSATA)
// 1 x G-LAN (Back side)
// 2 x USB (internal)
// 3 x Mini-PCIe
// Power Supply DC 12V
Sales only to business customers.
Delivery time: upon request
Basic Module: IBASE ARD-028-N
| General information | ||||
| SKU / Item Number | ARD-028-N | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | Intel Bay Trail | ||
| Number | Intel Atom E3825 | |||
| CPU cores | 2 Pce | |||
| Threads | 2 Pce | |||
| Socket | BGA 1170 | |||
| Base frequency | 1,33 GHz | |||
| Cache | 1 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Frequency | 800 / 1066 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 4 GB | |||
| Internal memory | 2 GB | |||
| Storage | Solid State Drive (mSATA) | 64 GB | ||
| Power supply - Input | Solid State Drive (mSATA) 64 GB | |||
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Display | ||||
| Display Typ | 27.6" TFT LCD | |||
| Max. Resolution | 1920 x 360 | |||
| Aspect Ratio | 16 : 3 | |||
| Contrast | 3000:1 | |||
| Luminance | 1000 cd/m² | |||
| Viewing angle | Horizontal | 170 ° | ||
| Vertical | 170 ° | |||
| Backlight | Type | LED | ||
| Lifetime | 50000 h | |||
| Extension | ||||
| Mini-PCIe | Half building depth | Quantity | 1 Pce | |
| mSATA support | Yes | |||
| Full installation depth | Quantity | 2 Pce | ||
| PCIe Interfaces | 3x Mini-PCIe slots | |||
| Storage | mSATA | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8367N (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||

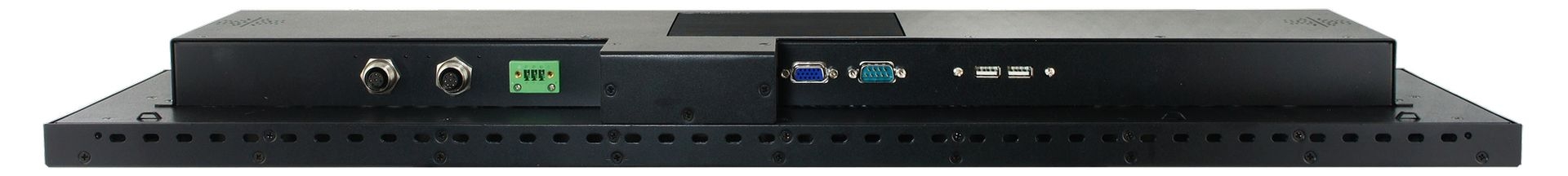

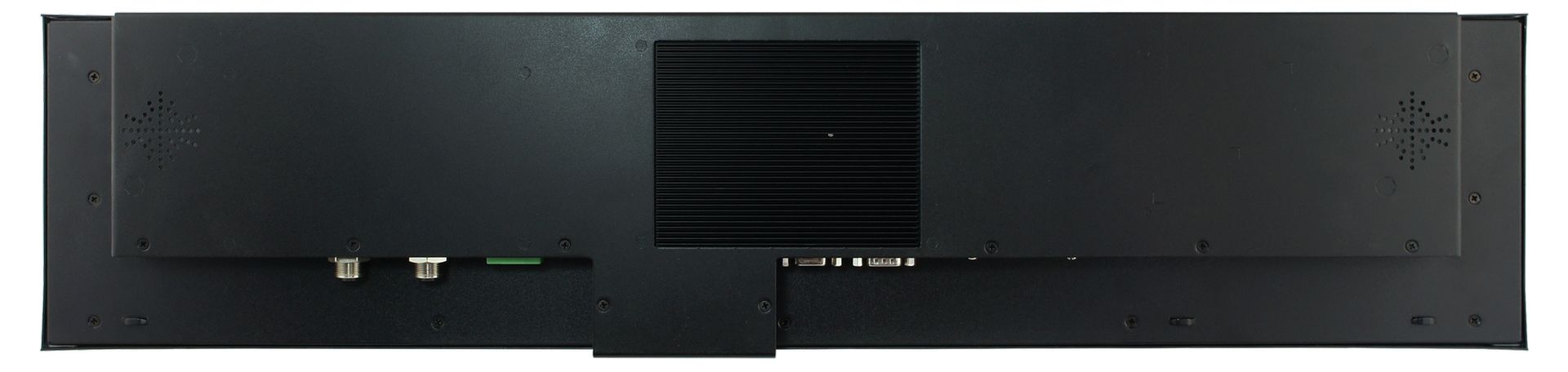

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Ethernet | M12 connectors | 1 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 12V | |
| Connector | 3-pin terminal connector | |||
| Power supply - Input | DC: 12V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20°C to 55°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Storage | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | 27.6" | ||
| Width | 171 mm | |||
| Deep | 729 mm | |||
| Height | 54 mm | |||
| Vibration | Reference Standard | IEC 61373 | ||
| Weight | 5400 g | |||
| Color | Black | |||
| Material | Aluminum, Steel | |||
| OS / Software | ||||
| Windows | Windows 7 (32/64-bit) | is supported | ||
| Windows 8 (32-bit) | is supported | |||
| Windows 8 (64-bit) | is supported | |||
| Windows 8.1 (32-bit) | is supported | |||
| Windows 8.1 (64-bit) | is supported | |||
| Windows 10 (64-bit) | is supported | |||
| Supported OS | Windows | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | VCCI | |||
