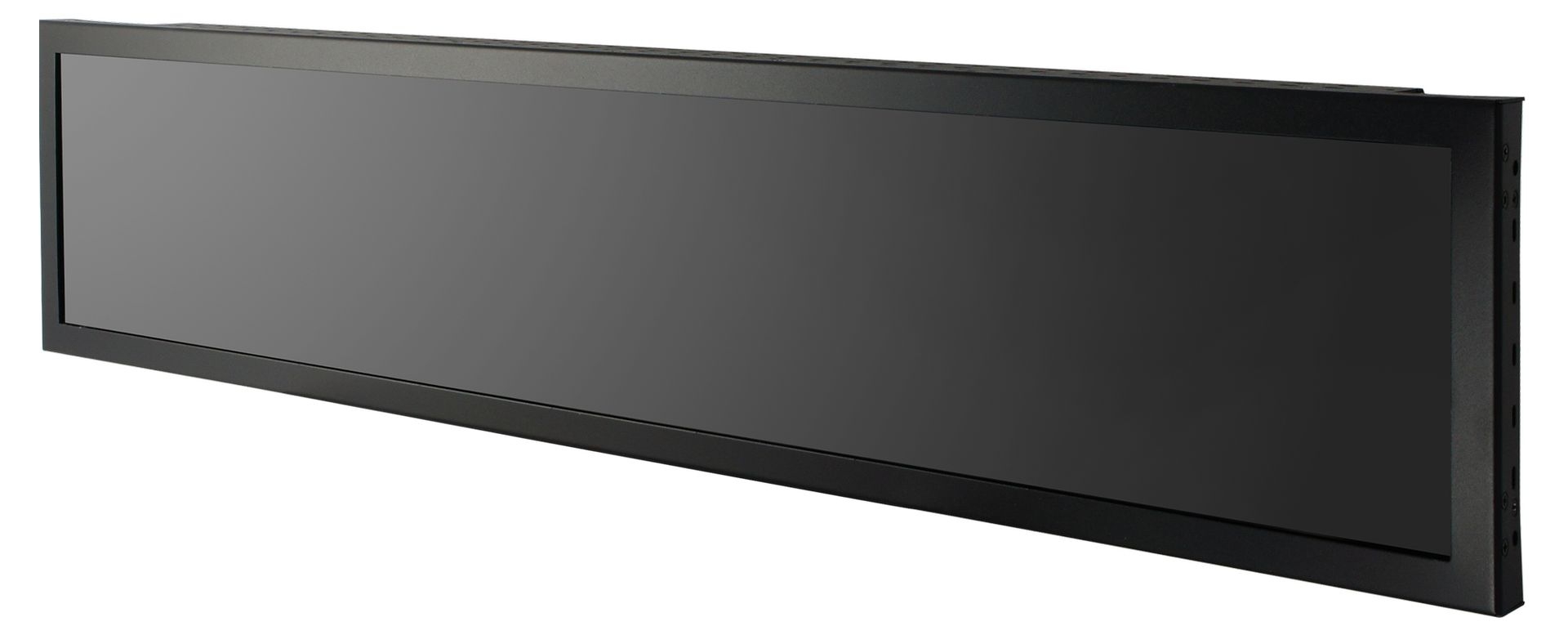

Bar-Type Panel PC
// 42" TFT LCD Panel-PC
// Intel Pentium N4200
// Passive cooled
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// 64 GB SSD (mSATA)
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// Power Supply DC 24V
Sales only to business customers.
Delivery time: upon request
Basic Module: IBASE ARD-042-N
| General information | ||||
| SKU / Item Number | ARD-042-N | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | Intel Apollo Lake | ||
| Number | Intel Pentium N4200 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1296 | |||
| Base frequency | 1,1 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Frequency | 1600 / 1866 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 8 GB | |||
| Internal memory | 2 GB | |||
| Storage | Solid State Drive (mSATA) | 64 GB | ||
| Power supply - Input | Solid State Drive (mSATA) 64 GB | |||
| Graphics | ||||
| Processor | Intel HD Graphics 9th Generation | |||
| HDMI | Version | 1.4 | ||
| DisplayPort | Version | 1.2 | ||
| Display | ||||
| Display Typ | 42" TFT LCD | |||
| Max. Resolution | 1920 x 480 | |||
| Aspect Ratio | 4 : 1 | |||
| Contrast | 3500:1 | |||
| Luminance | 700 cd/m² | |||
| Viewing angle | Horizontal | 178 ° | ||
| Vertical | 178 ° | |||
| Backlight | Type | LED | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Supported dimensions | 3042 | |||
| M.2 Key IDs | B | |||
| Storage | M.2, mSATA | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.0 | 4 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 24V | |
| Connector | DC barrel connector | |||
| Power supply - Input | DC: 24V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Storage | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | 42-inch | ||
| Width | 288 mm | |||
| Deep | 1.065 mm | |||
| Height | 70 mm | |||
| Vibration | Reference Standard | IEC 61373 | ||
| Weight | 14800 g | |||
| Color | Black | |||
| Material | Aluminum, Steel | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Supported OS | Windows | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | VCCI | |||
