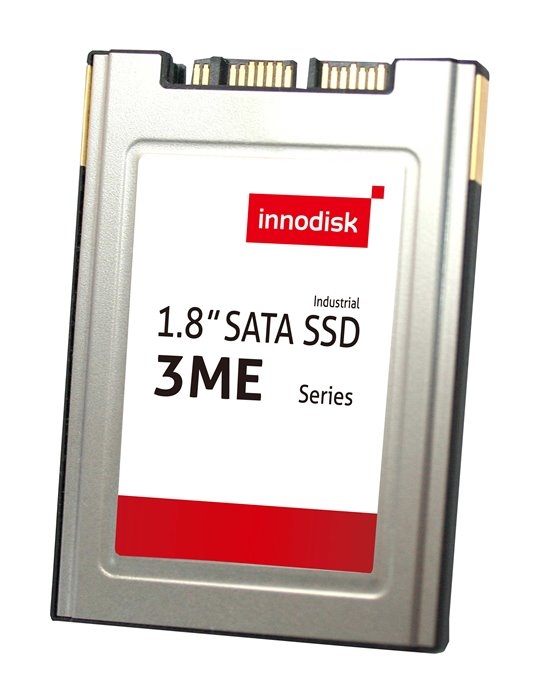

Innodisk 1.8 SATA SSD 3ME

DES18-08GD06RC1DC, DES18-08GD06SW1DC, DES18-16GD06RC1DC, DES18-16GD06SW1DC, DES18-32GD06RC1QC, DES18-32GD06SW1QC, DES18-64GD06RC1QC, DES18-64GD06SW1QC, DES18-A28D06RC1QC, DES18-A28D06SW1QC, DES18-B56D06SC1QC, DES18-B56D06SW1QC, DES18-C12D06SC1QC, DES18-C12D06SW1QC

1.8" SATA SSD

The product is EOL (End Of Life)!

PRODUCT FEATURES

// 1.8"
// MLC (Multi-Layer Cell)
// SATA 3
// 3ME
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 1.8 SATA SSD 3ME

General information
SKU / Item Number1.8 SATA SSD 3MEDES18-08GD06RC1DC, DES18-08GD06SW1DC, DES18-16GD06RC1DC, DES18-16GD06SW1DC, DES18-32GD06RC1QC, DES18-32GD06SW1QC, DES18-64GD06RC1QC, DES18-64GD06SW1QC, DES18-A28D06RC1QC, DES18-A28D06SW1QC, DES18-B56D06SC1QC, DES18-B56D06SW1QC, DES18-C12D06SC1QC, DES18-C12D06SW1QC
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3ME
Connection (Interface)SATA 3
Flash structureSSD
Flash typeMLC (Multi-Layer Cell)
Write/Erase cycles (P/E limit)3000
Capacity8 GB, 16 GB, 32 GB, 64 GB, 128 GB, 256 GB, 512 GB
ControllerID106
Channel2, 4
Maximum current draw2,8 W
PerformanceFlash chipKioxia (Toshiba)
Measuring instrumentQueue Depth 32
Sequential reading120 MB/s, 240 MB/s, 300 MB/s, 460 MB/s
Sequential writing20 MB/s, 35 MB/s, 80 MB/s, 160 MB/s, 240 MB/s, 290 MB/s
Temperature sensor-, Yes
TRIMis supported
Flash modeSynchronous NAND
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 95°C
Relative humidityStorage10 to 95%, non-condensing
DimensionsForm factor1.8"
Width54 mm
Deep79 mm
Height5 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
FCCClass BYes
RoHS compliantYes
