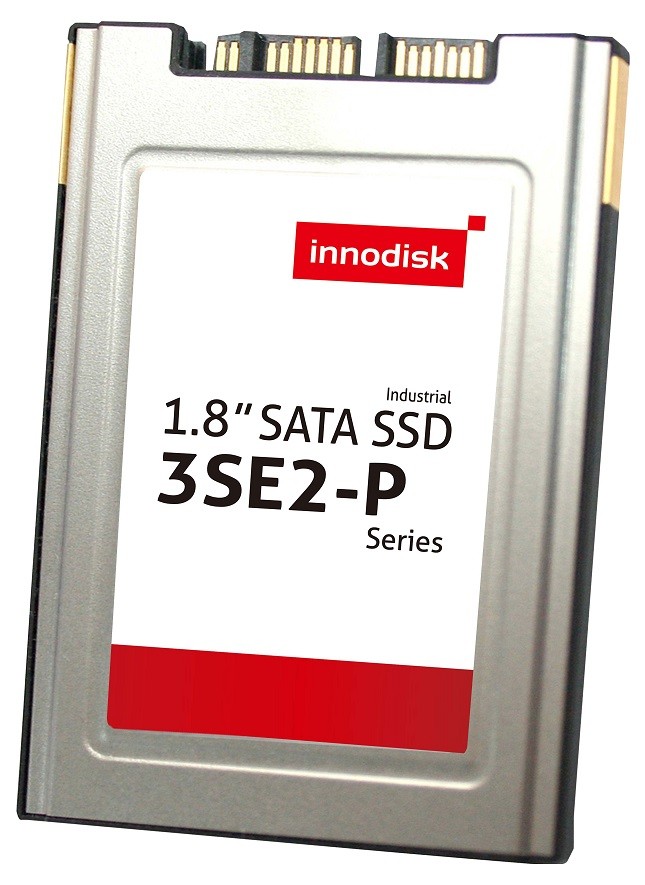

Innodisk 1.8 SATA SSD 3SE2-P

DES18-32GD81SWAQB, DES18-A28D81SWAQB

1.8" SATA SSD

The product is EOL (End Of Life)!

PRODUCT FEATURES

// 1.8"
// SLC
// SATA 3
// 3SE2-P
// -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 1.8 SATA SSD 3SE2-P

General information
SKU / Item Number1.8 SATA SSD 3SE2-PDES18-32GD81SWAQB, DES18-A28D81SWAQB
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3SE2-P
Connection (Interface)SATA 3
Flash structureSSD
Flash typeSLC
chip enclosureBGA (Ball Grid Array) A
Capacity32 GB, 128 GB
ControllerID201
Channel4
iCellis supported
PerformanceFlash chipKioxia (Toshiba)
Sequential reading530 MB/s
Sequential writing250 MB/s, 420 MB/s
4KB random (QD32) read52400 IOPS, 54700 IOPS
4KB Random (QD32) Write2600 IOPS, 4200 IOPS
Temperature sensorYes
TRIMis supported
External DRAM bufferis supported
Flash modeSynchronous NAND
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation-40°C to 85°C
Storage-55°C to 95°C
Relative humidityStorage10 to 95%, non-condensing
DimensionsForm factor1.8"
Width54 mm
Deep79 mm
Height5 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
Weight55 g
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
FCCClass BYes
Additional certificates / compliance approvalsEN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT)
RoHS compliantYes
