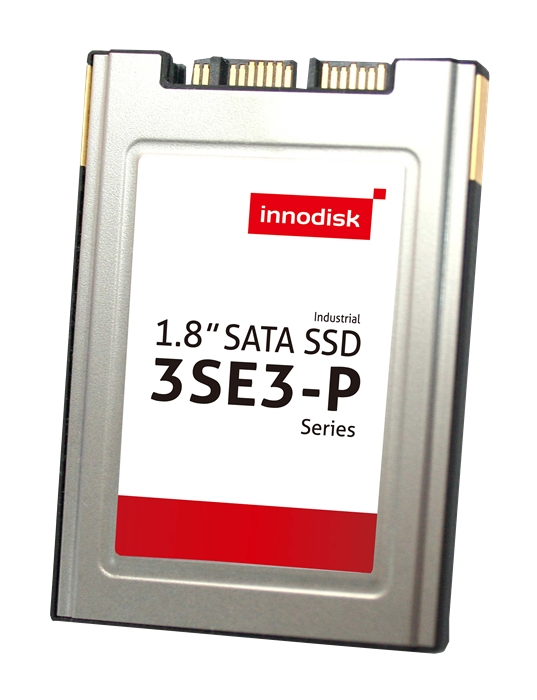

Innodisk 1.8 SATA SSD 3SE3-P

DES18-08GD70SCBQB, DES18-08GD70SWBQB, DES18-16GD70SCBQB, DES18-16GD70SWBQB, DES18-32GD70SCBQB, DES18-32GD70SWBQB, DES18-64GD70SCBQB, DES18-64GD70SWBQB, DES18-A28D70SCBQB, DES18-A28D70SWBQB, DES18-B56D70SCBQB, DES18-B56D70SWBQB, DES18-C12D70SCBQT, DES18-C12D70SWBQT

1.8" SATA SSD

The product is EOL (End Of Life)!

PRODUCT FEATURES

// 1.8"
// SLC
// SATA 3
// 3SE3-P
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 1.8 SATA SSD 3SE3-P

General information
SKU / Item Number1.8 SATA SSD 3SE3-PDES18-08GD70SCBQB, DES18-08GD70SWBQB, DES18-16GD70SCBQB, DES18-16GD70SWBQB, DES18-32GD70SCBQB, DES18-32GD70SWBQB, DES18-64GD70SCBQB, DES18-64GD70SWBQB, DES18-A28D70SCBQB, DES18-A28D70SWBQB, DES18-B56D70SCBQB, DES18-B56D70SWBQB, DES18-C12D70SCBQT, DES18-C12D70SWBQT
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3SE3-P
Connection (Interface)SATA 3
Flash structureSSD
Flash typeSLC
Capacity8 GB, 16 GB, 32 GB, 64 GB, 128 GB, 256 GB, 512 GB
ControllerID170 (JMF670H)
Channel4
Maximum current draw1,5 W
PerformanceFlash chipKioxia (Toshiba), Micron
Measuring instrumentQueue Depth 32
Sequential reading330 MB/s, 360 MB/s, 460 MB/s, 470 MB/s, 490 MB/s
Sequential writing110 MB/s, 120 MB/s, 220 MB/s, 230 MB/s, 240 MB/s, 250 MB/s
4KB random (QD32) read28800 IOPS, 29600 IOPS, 33900 IOPS, 34500 IOPS, 36700 IOPS, 40000 IOPS
4KB Random (QD32) Write11400 IOPS, 12900 IOPS, 20000 IOPS, 22400 IOPS, 22600 IOPS, 23400 IOPS
Temperature sensor-, Yes
TRIMis supported
External DRAM bufferis supported
Flash modeSynchronous NAND
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 95°C
Relative humidityStorage10 to 95%, non-condensing
DimensionsForm factor1.8"
Width54 mm
Deep79 mm
Height5 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
Weight45 g
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
FCCClass BYes
RoHS compliantYes
