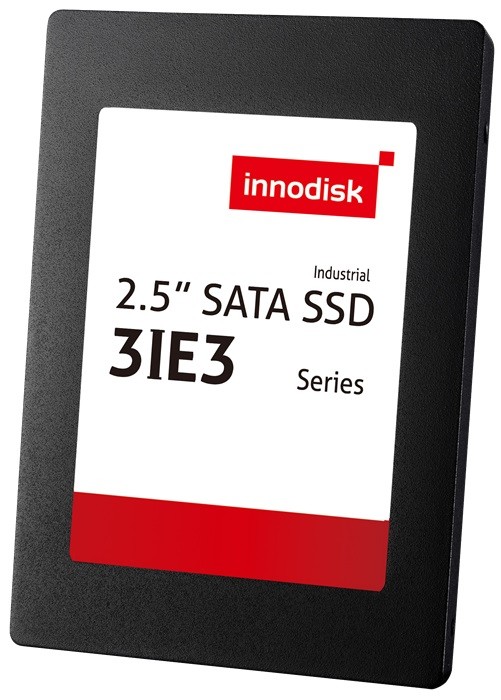

Innodisk 2.5 SATA SSD 3IE3

DHS25-08GD09BC1DC, DHS25-08GD09BC1SC, DHS25-08GD09BW1DC, DHS25-08GD09BW1SC, DHS25-16GD08BC3QC, DHS25-16GD08BW3QC, DHS25-16GD09BC1DC, DHS25-16GD09BW1DC, DHS25-32GD08BC3QC, DHS25-32GD08BW3QC, DHS25-64GD08BC3QC, DHS25-64GD08BW3QC, DHS25-A28D08BC1QC, DHS25-A28D08BC3QC, DHS25-A28D08BW1QC, DHS25-A28D08BW3QC, DHS25-B56D08BC1QC, DHS25-B56D08BW1QC

2.5" SATA SSD

PRODUCT FEATURES

// 2.5"
// iSLC
// SATA 3
// 3IE3
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3IE3

General information
SKU / Item Number2.5 SATA SSD 3IE3DHS25-08GD09BC1DC, DHS25-08GD09BC1SC, DHS25-08GD09BW1DC, DHS25-08GD09BW1SC, DHS25-16GD08BC3QC, DHS25-16GD08BW3QC, DHS25-16GD09BC1DC, DHS25-16GD09BW1DC, DHS25-32GD08BC3QC, DHS25-32GD08BW3QC, DHS25-64GD08BC3QC, DHS25-64GD08BW3QC, DHS25-A28D08BC1QC, DHS25-A28D08BC3QC, DHS25-A28D08BW1QC, DHS25-A28D08BW3QC, DHS25-B56D08BC1QC, DHS25-B56D08BW1QC
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3IE3
Connection (Interface)SATA 3
Flash structureSSD
Flash typeiSLC
Write/Erase cycles (P/E limit)20000
Capacity8 GB, 16 GB, 32 GB, 64 GB, 128 GB, 256 GB
Controller8-16 GB, 16-256GB, ID108, ID109
Channel1, 2, 4
Maximum current draw2,8 W
iDataGuardis supported
PerformanceFlash chipKioxia (Toshiba) 15 nm
Sequential reading100 MB/s, 110 MB/s, 200 MB/s, 215 MB/s, 415 MB/s, 420 MB/s, 440 MB/s, 450 MB/s
Sequential writing40 MB/s, 50 MB/s, 100 MB/s, 180 MB/s, 200 MB/s, 245 MB/s, 250 MB/s
4KB random (QD32) read5000 IOPS, 6600 IOPS, 8900 IOPS, 10600 IOPS, 11000 IOPS, 11700 IOPS
4KB Random (QD32) Write8700 IOPS, 12200 IOPS, 18900 IOPS, 25800 IOPS, 29000 IOPS, 30400 IOPS
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 95°C
Relative humidityOperation10 to 95%, non-condensing
DimensionsForm factor2.5"
Width69,85 mm
Deep100 mm
Height6,9 mm
Weight8 g
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
FCCClass BYes
RoHS compliantYes
