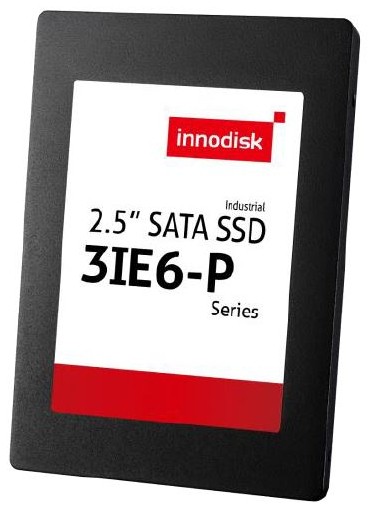

Innodisk 2.5 SATA SSD 3IE6-P InnoNAND iCell

DHS25-1T2M71KCAQLP, DHS25-1T2M71KWAQLP, DHS25-A60M71KCAQLP, DHS25-A60M71KWAQLP, DHS25-D2GM71KCAQLP, DHS25-D2GM71KWAQLP, DHS25-F4GM71KCAQLP, DHS25-F4GM71KWAQLP

2.5" SATA SSD

PRODUCT FEATURES

// 2.5"
// Innodisk marking SanDisk & WD 3D TLC
// SATA 3
// 3IE6-P
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3IE6-P InnoNAND iCell

General information
SKU / Item Number2.5 SATA SSD 3IE6-P InnoNAND iCellDHS25-1T2M71KCAQLP, DHS25-1T2M71KWAQLP, DHS25-A60M71KCAQLP, DHS25-A60M71KWAQLP, DHS25-D2GM71KCAQLP, DHS25-D2GM71KWAQLP, DHS25-F4GM71KCAQLP, DHS25-F4GM71KWAQLP
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3IE6-P
Connection (Interface)SATA 3
Flash structureSSD
Flash typeInnodisk marking SanDisk & WD 3D TLC
Capacity1.28 TB, 160 GB, 320 GB, 640 GB
Controller88SS1080 (SATA)
ECC (Error-Correcting Code)Supported (24 bits per 1 KB)
Channel4
Maximum current draw6,2 W
iCellis supported
iDataGuardis supported
iPowerguardis supported
PerformanceFlash chipInnodisk
Temperature sensorYes
TRIMis supported
External DRAM bufferis supported
Flash mode112/128 Layer 3D Flash
ATA SecurityYes
Advanced Encryption Standard (AES)Yes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-40°C to 85°C
Relative humidityOperation10 to 95%, non-condensing
DimensionsForm factor2.5"
Width69,85 mm
Deep100 mm
Height7 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelecordia SR-332 GB
Certificates / Conformities
CEYes
RoHS compliantYes
