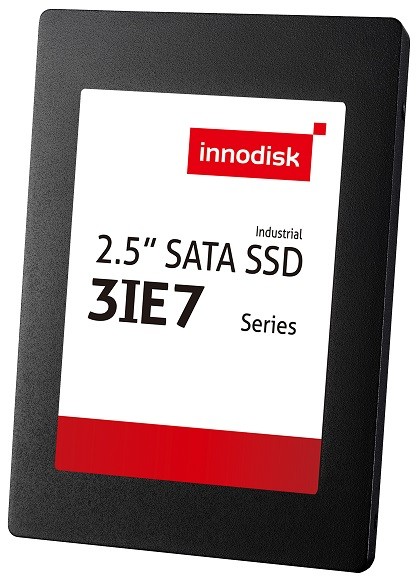

Innodisk 2.5 SATA SSD 3IE7 InnoNAND

DHS25-40GDK1GCCDL, DHS25-40GDK1GWCDL, DHS25-40GDK1KCCDL, DHS25-40GDK1KWCDL, DHS25-80GDK1GCCDL, DHS25-80GDK1GCCQL, DHS25-80GDK1GWCDL, DHS25-80GDK1GWCQL, DHS25-80GDK1KCCDL, DHS25-80GDK1KCCQL, DHS25-80GDK1KWCDL, DHS25-80GDK1KWCQL, DHS25-A60DK1GCCQL, DHS25-A60DK1GWCQL, DHS25-A60DK1KCCQL, DHS25-A60DK1KWCQL, DHS25-D2GDK1GCAQL, DHS25-D2GDK1GCCQL, DHS25-D2GDK1GWAQL, DHS25-D2GDK1GWCDL, DHS25-D2GDK1KCCQL, DHS25-D2GDK1KWCQL, DHS25-F4GDK1GCAQL, DHS25-F4GDK1GCCQL, DHS25-F4GDK1GWAQL, DHS25-F4GDK1GWCQL, DHS25-F4GDK1KCCQL, DHS25-F4GDK1KWCQL

2.5" SATA SSD

Attention, EOL Notice: Details

PRODUCT FEATURES

// 2.5"
// iSLC
// SATA 3
// 3IE7
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3IE7 InnoNAND

General information
SKU / Item Number2.5 SATA SSD 3IE7 InnoNANDDHS25-40GDK1GCCDL, DHS25-40GDK1GWCDL, DHS25-40GDK1KCCDL, DHS25-40GDK1KWCDL, DHS25-80GDK1GCCDL, DHS25-80GDK1GCCQL, DHS25-80GDK1GWCDL, DHS25-80GDK1GWCQL, DHS25-80GDK1KCCDL, DHS25-80GDK1KCCQL, DHS25-80GDK1KWCDL, DHS25-80GDK1KWCQL, DHS25-A60DK1GCCQL, DHS25-A60DK1GWCQL, DHS25-A60DK1KCCQL, DHS25-A60DK1KWCQL, DHS25-D2GDK1GCCQL, DHS25-D2GDK1GWCDL, DHS25-D2GDK1KCCQL, DHS25-D2GDK1KWCQL, DHS25-F4GDK1GCCQL, DHS25-F4GDK1GWCQL, DHS25-F4GDK1KCCQL, DHS25-F4GDK1KWCQL, DHS25-D2GDK1GCAQL, DHS25-D2GDK1GWAQL, DHS25-F4GDK1GCAQL, DHS25-F4GDK1GWAQL
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3IE7
Connection (Interface)SATA 3
Flash structureSSD
Flash typeiSLC
chip enclosureBGA (Ball Grid Array) A, Slim inside
Write/Erase cycles (P/E limit)30000
Capacity40 GB, 80 GB, 160 GB, 320 GB, 640 GB
ControllerID301 (MK8215 with Innodisk logo)
Channel2, 4
Maximum current draw3,3 W
iDataGuardis supported
iPowerguardis supported
PerformanceFlash chipInnodisk
Temperature sensorYes
Flash mode96-Layer 3D Flash, 112/128 Layer 3D Flash
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-40°C to 85°C
DimensionsForm factor2.5"
Width69,8 mm
Deep100 mm
Height6,8 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
Weight57 g
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelecordia SR-232 GB
Certificates / Conformities
CEYes
