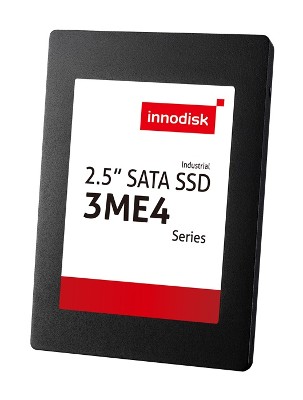

Innodisk 2.5 SATA SSD 3ME4

DES25-08GM41BC1SC, DES25-08GM41BW1SC, DES25-16GM41BC1DC, DES25-16GM41BC1SC, DES25-16GM41BW1DC, DES25-16GM41BW1SC, DES25-32GM41BC1DC, DES25-32GM41BW1DC, DES25-64GM41BC1DC, DES25-64GM41BW1DC, DES25-A28M41BC1DC, DES25-A28M41BW1DC, DES25-B56M41BC1DC, DES25-B56M41BW1DC

2.5" SATA SSD

PRODUCT FEATURES

// 2.5"
// MLC (Multi-Layer Cell)
// SATA 3
// 3ME4
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3ME4

General information
SKU / Item Number2.5 SATA SSD 3ME4DES25-08GM41BC1SC, DES25-08GM41BW1SC, DES25-16GM41BC1DC, DES25-16GM41BC1SC, DES25-16GM41BW1DC, DES25-16GM41BW1SC, DES25-32GM41BC1DC, DES25-32GM41BW1DC, DES25-64GM41BC1DC, DES25-64GM41BW1DC, DES25-A28M41BC1DC, DES25-A28M41BW1DC, DES25-B56M41BC1DC, DES25-B56M41BW1DC
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3ME4
Connection (Interface)SATA 3
Flash structureSSD
Flash typeMLC (Multi-Layer Cell)
Write/Erase cycles (P/E limit)3000
Capacity8 GB, 16 GB, 32 GB, 64 GB, 128 GB, 256 GB
Controller88NV1120 (SATA)
Channel1, 2
Maximum current draw0,8 W
iDataGuardis supported
PerformanceFlash chipKioxia (Toshiba) 15 nm
Measuring instrumentQueue Depth 32
Sequential reading140 MB/s, 220 MB/s, 270 MB/s, 450 MB/s, 530 MB/s
Sequential writing25 MB/s, 50 MB/s, 60 MB/s, 100 MB/s, 190 MB/s, 210 MB/s
4KB random (QD32) read8700 IOPS, 10000 IOPS, 15000 IOPS, 17000 IOPS, 27000 IOPS, 32000 IOPS
4KB Random (QD32) Write6100 IOPS, 6900 IOPS, 12000 IOPS, 14000 IOPS, 25000 IOPS, 30000 IOPS, 31000 IOPS
Temperature sensorYes
TRIMis supported
Software write protectionYes
Flash modeSynchronous NAND, Kioxia (Toshiba) 15 nm
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 95°C
Relative humidityStorage10 to 95%, non-condensing
DimensionsForm factor2.5"
Width70 mm
Deep100 mm
Height7 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
FCCClass BYes
RoHS compliantYes
