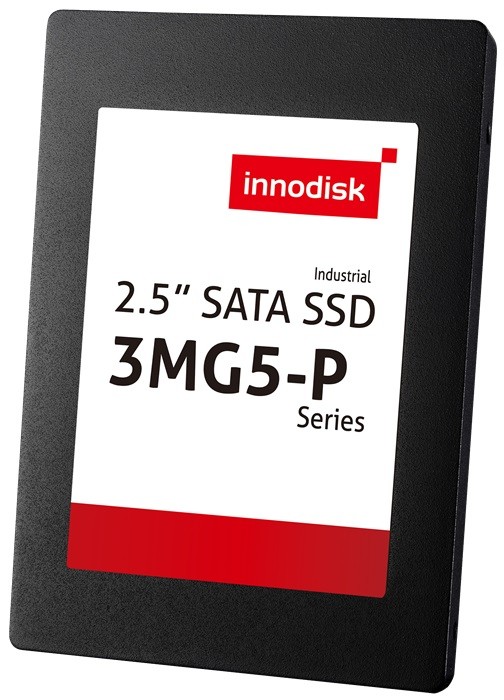

Innodisk 2.5 SATA SSD 3MG5-P

DGS25-A28D21CCAQG, DGS25-A28D21CCAQGP, DGS25-B56D21CCAQG, DGS25-B56D21CCAQGP, DGS25-C12D21CCAQG, DGS25-C12D21CCAQGP

2.5" SATA SSD

The product is EOL (End Of Life)!

PRODUCT FEATURES

// 2.5"
// 3D MLC
// SATA 3
// 3MG5-P
// 0°C to 70°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3MG5-P

General information
SKU / Item Number2.5 SATA SSD 3MG5-PDGS25-A28D21CCAQG, DGS25-A28D21CCAQGP, DGS25-B56D21CCAQG, DGS25-B56D21CCAQGP, DGS25-C12D21CCAQG, DGS25-C12D21CCAQGP
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3MG5-P
Connection (Interface)SATA 3
Flash structureSSD
Flash type3D MLC
Write/Erase cycles (P/E limit)3000
Capacity128 GB, 256 GB, 512 GB
ControllerID204
Channel4
Maximum current draw3,6 W
iCell-, is supported
iDataGuardis supported
PerformanceFlash chipMicron
Measuring instrumentQueue Depth 32
Sequential reading560 MB/s
Sequential writing500 MB/s, 520 MB/s
4KB random (QD32) read47000 IOPS, 83000 IOPS, 90000 IOPS
4KB Random (QD32) Write86000 IOPS, 87000 IOPS
Temperature sensorYes
TRIMis supported
External DRAM bufferis supported
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C
Storage-55°C to 95°C
DimensionsForm factor2.5"
Width70 mm
Deep100 mm
Height7 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
FCCClass BYes
Additional certificates / compliance approvalsEN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
RoHS compliantYes
