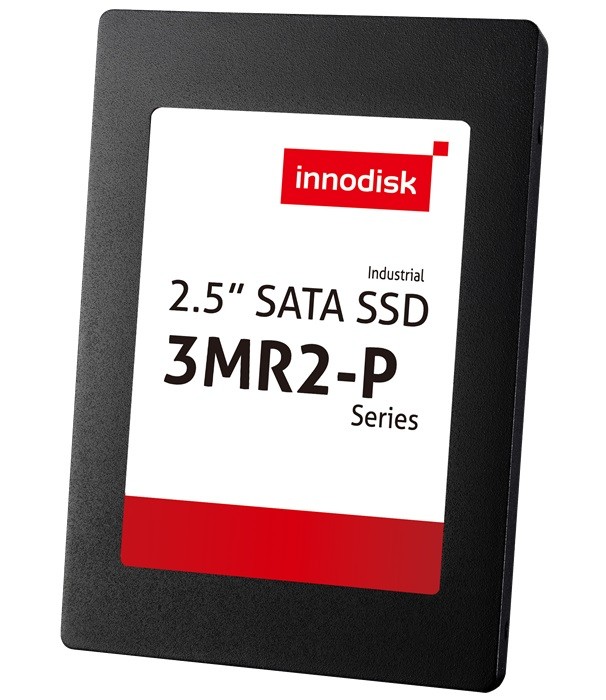

Innodisk 2.5 SATA SSD 3MR2-P

DRS25-01TD81BCAQCP, DRS25-01TD81BWAQCP, DRS25-02TD81BCAQC, DRS25-02TD81BWAQC, DRS25-08GD81BC1SCP, DRS25-08GD81BW1SCP, DRS25-16GD81BC1SCP, DRS25-16GD81BW1SCP, DRS25-32GD81BC1DCP, DRS25-32GD81BC1QCP, DRS25-32GD81BW1DCP, DRS25-32GD81BW1QCP, DRS25-64GD81BC1QCP, DRS25-64GD81BW1QCP, DRS25-A28D81BC1QCP, DRS25-A28D81BW1QCP, DRS25-B56D81BC1QCP, DRS25-B56D81BW1QCP, DRS25-C12D81BC1QCP, DRS25-C12D81BW1QCP

2.5" SATA SSD

PRODUCT FEATURES

// 2.5"
// MLC (Multi-Layer Cell)
// SATA 3
// 3MR2-P
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3MR2-P

General information
SKU / Item Number2.5 SATA SSD 3MR2-PDRS25-01TD81BCAQCP, DRS25-01TD81BWAQCP, DRS25-08GD81BC1SCP, DRS25-08GD81BW1SCP, DRS25-16GD81BC1SCP, DRS25-16GD81BW1SCP, DRS25-32GD81BC1DCP, DRS25-32GD81BC1QCP, DRS25-32GD81BW1DCP, DRS25-32GD81BW1QCP, DRS25-64GD81BC1QCP, DRS25-64GD81BW1QCP, DRS25-A28D81BC1QCP, DRS25-A28D81BW1QCP, DRS25-B56D81BC1QCP, DRS25-B56D81BW1QCP, DRS25-C12D81BC1QCP, DRS25-C12D81BW1QCP, DRS25-02TD81BCAQC, DRS25-02TD81BWAQC
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3MR2-P
Connection (Interface)SATA 3
Flash structureSSD
Flash typeMLC (Multi-Layer Cell)
Write/Erase cycles (P/E limit)3000
Capacity1 TB, 2 TB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB, 256 GB, 512 GB
ControllerSMI 2246EN
Maximum current draw5,8 W
iCell-, is supported
PerformanceFlash chipKioxia (Toshiba) 15 nm
Temperature sensorYes
TRIMis supported
External DRAM bufferis supported
Software write protectionYes
Quick EraseYes
Flash modeSynchronous NAND, Kioxia (Toshiba) 15 nm
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 95°C
DimensionsForm factor2.5"
Width69,85 mm
Deep100 mm
Height9,5 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
Additional certificates / compliance approvalsMIL-STD 810F/G
RoHS compliantYes
