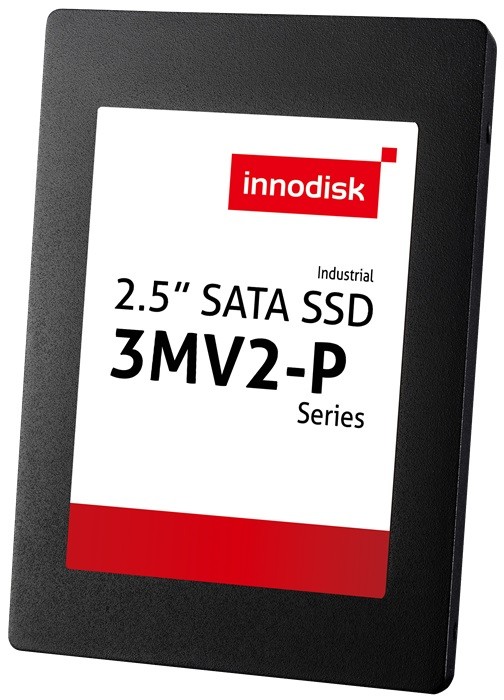

Innodisk 2.5 SATA SSD 3MV2-P

DVS25-01TD81BCAQC, DVS25-01TD81BCAQCP, DVS25-01TD81BWAQC, DVS25-01TD81BWAQCP, DVS25-02TD81BCAQC, DVS25-02TD81BWAQC, DVS25-08GD81BC1SC, DVS25-08GD81BC1SCP, DVS25-08GD81BW1SC, DVS25-08GD81BW1SCP, DVS25-16GD81BC1DC, DVS25-16GD81BC1SCP, DVS25-16GD81BW1DC, DVS25-16GD81BW1SCP, DVS25-32GD81BC1QC, DVS25-32GD81BC1QCP, DVS25-32GD81BW1QC, DVS25-32GD81BW1QCP, DVS25-64GD81BC1QC, DVS25-64GD81BC1QCP, DVS25-64GD81BW1QC, DVS25-64GD81BW1QCP, DVS25-A28D81BC1QC, DVS25-A28D81BC1QCP, DVS25-A28D81BW1QC, DVS25-A28D81BW1QCP, DVS25-B56D81BC1QC, DVS25-B56D81BC1QCP, DVS25-B56D81BW1QC, DVS25-B56D81BW1QCP, DVS25-C12D81BC1QC, DVS25-C12D81BC1QCP, DVS25-C12D81BW1QC, DVS25-C12D81BW1QCP

2.5" SATA SSD

PRODUCT FEATURES

// 2.5"
// MLC (Multi-Layer Cell)
// SATA 3
// 3MV2-P
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3MV2-P

General information
SKU / Item Number2.5 SATA SSD 3MV2-PDVS25-01TD81BCAQC, DVS25-01TD81BCAQCP, DVS25-01TD81BWAQC, DVS25-01TD81BWAQCP, DVS25-02TD81BCAQC, DVS25-02TD81BWAQC, DVS25-08GD81BC1SC, DVS25-08GD81BC1SCP, DVS25-08GD81BW1SC, DVS25-08GD81BW1SCP, DVS25-16GD81BC1DC, DVS25-16GD81BC1SCP, DVS25-16GD81BW1DC, DVS25-16GD81BW1SCP, DVS25-32GD81BC1QC, DVS25-32GD81BC1QCP, DVS25-32GD81BW1QC, DVS25-32GD81BW1QCP, DVS25-64GD81BC1QC, DVS25-64GD81BC1QCP, DVS25-64GD81BW1QC, DVS25-64GD81BW1QCP, DVS25-A28D81BC1QC, DVS25-A28D81BC1QCP, DVS25-A28D81BW1QC, DVS25-A28D81BW1QCP, DVS25-B56D81BC1QC, DVS25-B56D81BC1QCP, DVS25-B56D81BW1QC, DVS25-B56D81BW1QCP, DVS25-C12D81BC1QC, DVS25-C12D81BC1QCP, DVS25-C12D81BW1QC, DVS25-C12D81BW1QCP
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3MV2-P
Connection (Interface)SATA 3
Flash structureSSD
Flash typeMLC (Multi-Layer Cell)
Write/Erase cycles (P/E limit)3000
Capacity1 TB, 2 TB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB, 256 GB, 512 GB
ControllerSMI 2246EN
Channel1, 2, 4
Maximum current draw5,8 W
iCell-, is supported
iDataGuardis supported
PerformanceFlash chipKioxia (Toshiba) 15 nm
Temperature sensorYes
TRIMis supported
External DRAM bufferis supported
Software write protectionYes
Quick EraseYes
Flash modeSynchronous NAND, Kioxia (Toshiba) 15 nm
ATA SecurityYes
Advanced Encryption Standard (AES)Yes
S.M.A.R.T.Yes
TCG OpalYes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 95°C
DimensionsForm factor2.5"
Width69,85 mm
Deep100 mm
Height6,9 mm, 9,5 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
FCCClass BYes
Additional certificates / compliance approvalsEN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
RoHS compliantYes
