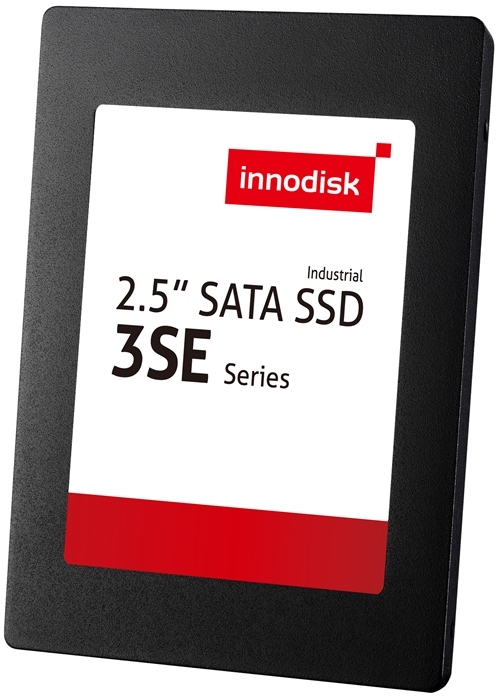

Innodisk 2.5 SATA SSD 3SE

DES25-02GD07SC1SB, DES25-02GD07SW1SB, DES25-04GD07AC1DB, DES25-04GD07AW1DB, DES25-04GD07SC1DB, DES25-04GD07SW1DB, DES25-08GD06SCCQB, DES25-08GD06SWCQB, DES25-16GD06SCCQB, DES25-16GD06SWCQB, DES25-32GD06SCCQB, DES25-32GD06SWCQB

2.5" SATA SSD

PRODUCT FEATURES

// 2.5"
// SLC
// SATA 3
// 3SE
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3SE

General information
SKU / Item Number2.5 SATA SSD 3SEDES25-04GD07AC1DB, DES25-04GD07AW1DB, DES25-04GD07SC1DB, DES25-04GD07SW1DB, DES25-08GD06SCCQB, DES25-08GD06SWCQB, DES25-16GD06SCCQB, DES25-16GD06SWCQB, DES25-32GD06SCCQB, DES25-32GD06SWCQB, DES25-02GD07SC1SB, DES25-02GD07SW1SB
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3SE
Connection (Interface)SATA 3
Flash structureSSD
Flash typeSLC
chip enclosureSlim inside, TSOP 1
Capacity2 GB, 4 GB, 8 GB, 16 GB, 32 GB
ControllerJmicron JM606, Jmicron JM607
Channel1, 2, 4
Maximum current draw3 W
Flash modeAsynchronous NAND, Synchronous NAND
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 95°C
Relative humidityOperation10 to 95%, non-condensing
DimensionsForm factor2.5"
Width69,85 mm
Deep99,85 mm
Height9,2 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
RoHS compliantYes
