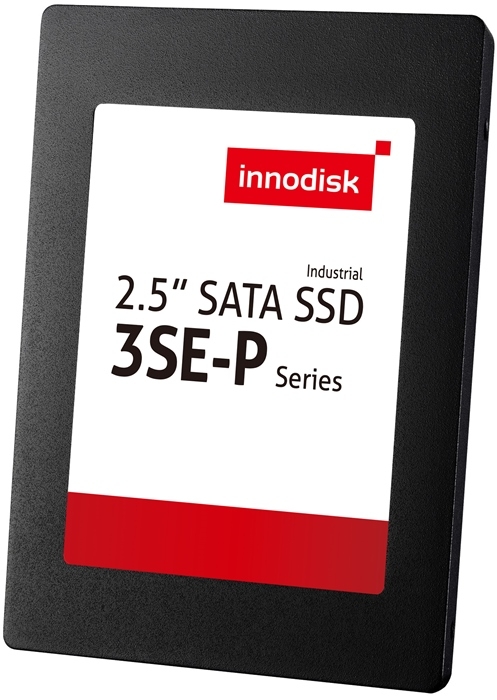

Innodisk 2.5 SATA SSD 3SE-P

DES25-08GD67SCCQB, DES25-08GD67SCCQBP, DES25-08GD67SWCQB, DES25-08GD67SWCQBP, DES25-16GD67SCCQB, DES25-16GD67SCCQBP, DES25-16GD67SWCQB, DES25-16GD67SWCQBP, DES25-32GD67SCCQB, DES25-32GD67SCCQBP, DES25-32GD67SWCQB, DES25-32GD67SWCQBP, DES25-64GD67SCCQB, DES25-64GD67SCCQBP, DES25-64GD67SWCQB, DES25-64GD67SWCQBP, DES25-A28D67SCCQB, DES25-A28D67SCCQBP, DES25-A28D67SWCQB, DES25-A28D67SWCQBP, DES25-B56D67SCCQB, DES25-B56D67SCCQBP, DES25-B56D67SWCQB, DES25-B56D67SWCQBP

2.5" SATA SSD

The product is EOL (End Of Life)!

PRODUCT FEATURES

// 2.5"
// SLC
// SATA 3
// 3SE-P
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3SE-P

General information
SKU / Item Number2.5 SATA SSD 3SE-PDES25-08GD67SCCQB, DES25-08GD67SCCQBP, DES25-08GD67SWCQB, DES25-08GD67SWCQBP, DES25-16GD67SCCQB, DES25-16GD67SCCQBP, DES25-16GD67SWCQB, DES25-16GD67SWCQBP, DES25-32GD67SCCQB, DES25-32GD67SCCQBP, DES25-32GD67SWCQB, DES25-32GD67SWCQBP, DES25-64GD67SCCQB, DES25-64GD67SCCQBP, DES25-64GD67SWCQB, DES25-64GD67SWCQBP, DES25-A28D67SCCQB, DES25-A28D67SCCQBP, DES25-A28D67SWCQB, DES25-A28D67SWCQBP, DES25-B56D67SCCQB, DES25-B56D67SCCQBP, DES25-B56D67SWCQB, DES25-B56D67SWCQBP
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3SE-P
Connection (Interface)SATA 3
Flash structureSSD
Flash typeSLC
Capacity8 GB, 16 GB, 32 GB, 64 GB, 128 GB, 256 GB
ControllerID167
Channel4
Maximum current draw3 W
iCell-, is supported
PerformanceFlash chipKioxia (Toshiba)
Sequential reading400 MB/s, 470 MB/s, 490 MB/s
Sequential writing120 MB/s, 210 MB/s, 240 MB/s, 300 MB/s, 340 MB/s
Temperature sensor-, Yes
External DRAM bufferis supported
Flash modeSynchronous NAND
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 95°C
Relative humidityOperation10 to 95%, non-condensing
DimensionsForm factor2.5"
Width70 mm
Deep100 mm
Height9 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
FCCClass BYes
Additional certificates / compliance approvalsEN 55022, EN 55024, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT)
RoHS compliantYes
