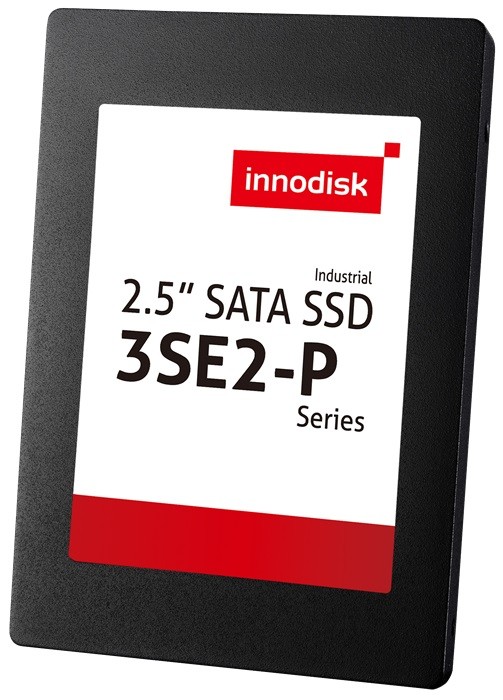

Innodisk 2.5 SATA SSD 3SE2-P AES

DES25-16GD82SCAQB, DES25-16GD82SCAQBP, DES25-16GD82SWAQB, DES25-16GD82SWAQBP, DES25-32GD82SCAQB, DES25-32GD82SCAQBP, DES25-32GD82SWAQB, DES25-32GD82SWAQBP, DES25-64GD82SCAQB, DES25-64GD82SCAQBP, DES25-64GD82SWAQB, DES25-64GD82SWAQBP, DES25-A28D82SCAQB, DES25-A28D82SCAQBP, DES25-A28D82SWAQB, DES25-A28D82SWAQBP, DES25-B56D82SCAQB, DES25-B56D82SCAQBP, DES25-B56D82SWAQB, DES25-B56D82SWAQBP, DES25-C12D82SCBQB, DES25-C12D82SWBQB, DES25-08GD82SCAQB, DES25-08GD82SCAQBP, DES25-08GD82SWAQB, DES25-08GD82SWAQBP

2.5" SATA SSD

PRODUCT FEATURES

// 2.5"
// SLC
// SATA 3
// 3SE2-P (AES)
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3SE2-P AES

General information
SKU / Item Number2.5 SATA SSD 3SE2-P AESDES25-08GD82SCAQB, DES25-08GD82SCAQBP, DES25-08GD82SWAQB, DES25-08GD82SWAQBP, DES25-16GD82SCAQB, DES25-16GD82SCAQBP, DES25-16GD82SWAQB, DES25-16GD82SWAQBP, DES25-32GD82SCAQB, DES25-32GD82SCAQBP, DES25-32GD82SWAQB, DES25-32GD82SWAQBP, DES25-64GD82SCAQB, DES25-64GD82SCAQBP, DES25-64GD82SWAQB, DES25-64GD82SWAQBP, DES25-A28D82SCAQB, DES25-A28D82SCAQBP, DES25-A28D82SWAQB, DES25-A28D82SWAQBP, DES25-B56D82SCAQB, DES25-B56D82SCAQBP, DES25-B56D82SWAQB, DES25-B56D82SWAQBP, DES25-C12D82SCBQB, DES25-C12D82SWBQB
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3SE2-P (AES)
Connection (Interface)SATA 3
Flash structureSSD
Flash typeSLC
Write/Erase cycles (P/E limit)60000
Capacity8 GB, 16 GB, 32 GB, 64 GB, 128 GB, 256 GB, 512 GB
Channel4
Maximum current draw4,4 W
iCell-, is supported
iDataGuardis supported
PerformanceFlash chipKioxia (Toshiba)
Temperature sensorYes
TRIMis supported
External DRAM bufferis supported
ATA SecurityYes
Advanced Encryption Standard (AES)Yes
S.M.A.R.T.Yes
DEVSLP modeYes (Power consumption > 3 mW)
Sleep ModeYes (power consumption > 30 mW)
TCG OpalYes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 95°C
Relative humidityOperation10 to 95%, non-condensing
DimensionsForm factor2.5"
Width70 mm
Deep100 mm
Height9,2 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
FCCClass BYes
Additional certificates / compliance approvalsEN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT)
RoHS compliantYes
