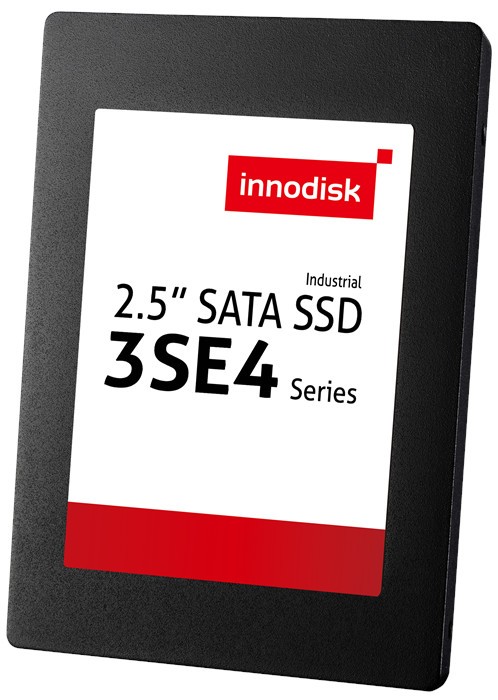

Innodisk 2.5 SATA SSD 3SE4

DES25-08GM41SCADB, DES25-08GM41SWADB, DES25-16GM41SCADB, DES25-16GM41SWADB, DES25-32GM41SCADB, DES25-32GM41SWADB, DES25-64GM41SCADB, DES25-64GM41SWADB

2.5" SATA SSD

PRODUCT FEATURES

// 2.5"
// SLC
// SATA 3
// 3SE4
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3SE4

General information
SKU / Item Number2.5 SATA SSD 3SE4DES25-08GM41SCADB, DES25-08GM41SWADB, DES25-16GM41SCADB, DES25-16GM41SWADB, DES25-32GM41SCADB, DES25-32GM41SWADB, DES25-64GM41SCADB, DES25-64GM41SWADB
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3SE4
Connection (Interface)SATA 3
Flash structureSSD
Flash typeSLC
Write/Erase cycles (P/E limit)60000
Capacity8 GB, 16 GB, 32 GB, 64 GB
Controller88NV1120 (SATA)
Channel2
Maximum current draw1,1 W
PerformanceFlash chipKioxia (Toshiba)
Measuring instrumentQueue Depth 32
Temperature sensorYes
TRIMis supported
Software write protectionYes
Flash modeSynchronous NAND
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 95°C
Relative humidityOperation10 to 95%, non-condensing
DimensionsForm factor2.5"
Width69,8 mm
Deep100 mm
Height6,9 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
FCCClass BYes
RoHS compliantYes
