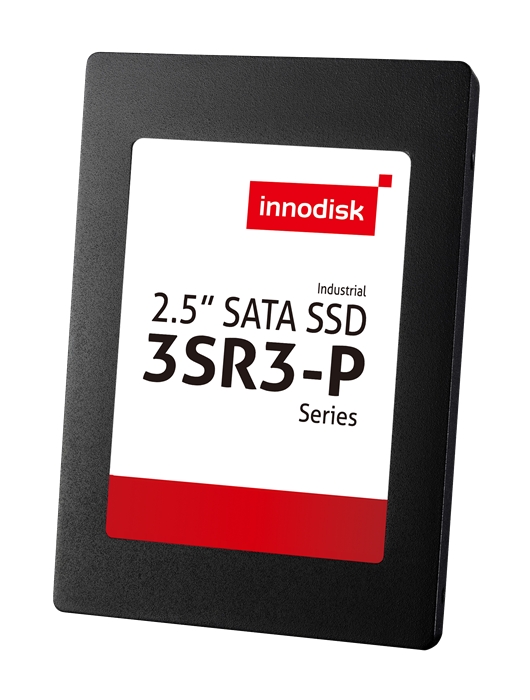

Innodisk 2.5 SATA SSD 3SR3-P

DRS25-08GD70SCAQB, DRS25-08GD70SWAQB, DRS25-16GD70SCAQB, DRS25-16GD70SWAQB, DRS25-32GD70SCAQB, DRS25-32GD70SWAQB, DRS25-64GD70SCAQB, DRS25-64GD70SWAQB, DRS25-A28D70SCAQB, DRS25-A28D70SWAQB, DRS25-B56D70SCAQB, DRS25-B56D70SWAQB, DRS25-C12D70SCAQT, DRS25-C12D70SWAQT

2.5" SATA SSD

The product is EOL (End Of Life)!

PRODUCT FEATURES

// 2.5"
// SLC
// SATA 3
// 3SR3-P
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3SR3-P

General information
SKU / Item Number2.5 SATA SSD 3SR3-PDRS25-08GD70SCAQB, DRS25-08GD70SWAQB, DRS25-16GD70SCAQB, DRS25-16GD70SWAQB, DRS25-32GD70SCAQB, DRS25-32GD70SWAQB, DRS25-64GD70SCAQB, DRS25-64GD70SWAQB, DRS25-A28D70SCAQB, DRS25-A28D70SWAQB, DRS25-B56D70SCAQB, DRS25-B56D70SWAQB, DRS25-C12D70SCAQT, DRS25-C12D70SWAQT
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3SR3-P
Connection (Interface)SATA 3
Flash structureSSD
Flash typeSLC
Capacity8 GB, 16 GB, 32 GB, 64 GB, 128 GB, 256 GB, 512 GB
ControllerID170 (JMF670H)
Channel4
Maximum current draw2,65 W
iCellis supported
PerformanceFlash chip-, Kioxia (Toshiba)
Sequential reading340 MB/s, 370 MB/s, 460 MB/s, 470 MB/s, 490 MB/s
Sequential writing120 MB/s, 190 MB/s, 230 MB/s, 240 MB/s, 280 MB/s
4KB random (QD32) read28000 IOPS, 29000 IOPS, 33000 IOPS, 33400 IOPS, 36000 IOPS, 38000 IOPS
4KB Random (QD32) Write9700 IOPS, 21000 IOPS, 22000 IOPS, 23000 IOPS, 35000 IOPS
Temperature sensorYes
TRIMis supported
External DRAM bufferis supported
Hardware Write ProtectionYes
Flash modeSynchronous NAND
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 95°C
Relative humidityOperation10 to 95%, non-condensing
DimensionsForm factor2.5"
Width70 mm
Deep100 mm
Height9 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
FCCClass BYes
RoHS compliantYes
