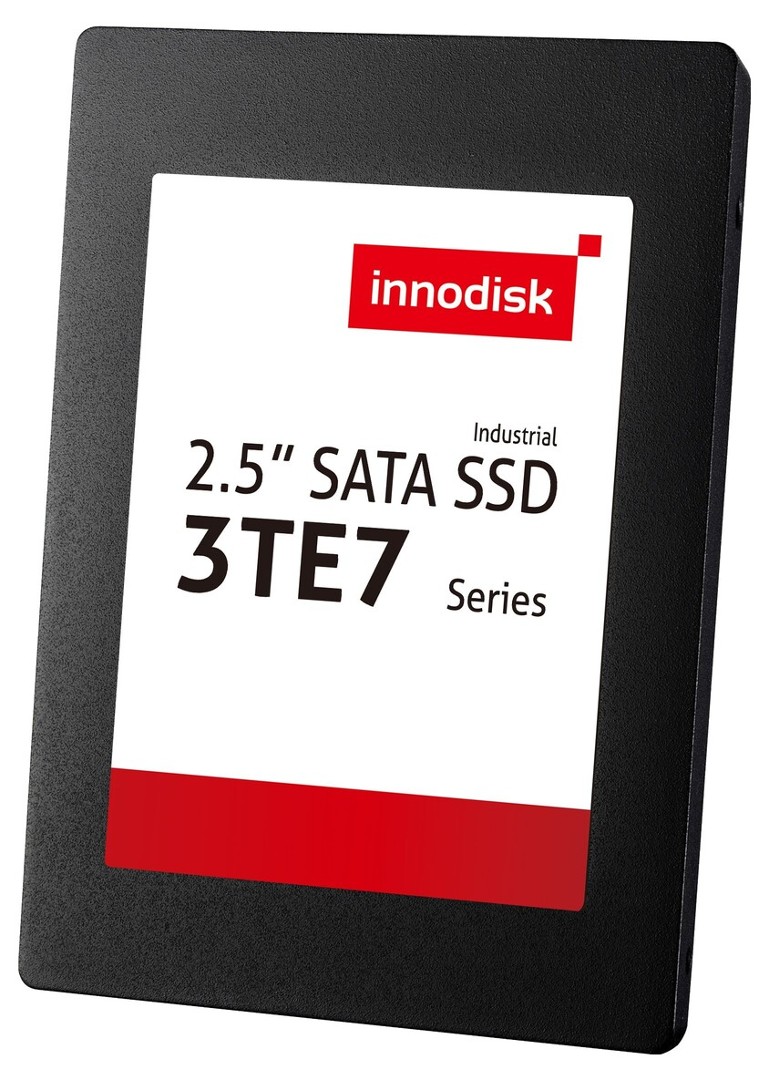

Innodisk 2.5 SATA SSD 3TE7

DES25-01TDK1EC1QF, DES25-01TDK1EW1QF, DES25-01TDK1KCCQF, DES25-01TDK1KWCQF, DES25-02TDK1KCCQF, DES25-02TDK1KWCQF, DES25-32GDK1EC3SF, DES25-32GDK1EW3SF, DES25-64GDK1EC3DF, DES25-64GDK1EW3DF, DES25-64GDK1KWCSF, DES25-A28DK1EC3QF, DES25-A28DK1EW3QF, DES25-A28DK1KCCDF, DES25-A28DK1KWCDF, DES25-B56DK1EC3QF, DES25-B56DK1EW3QF, DES25-B56DK1KCCQF, DES25-B56DK1KWCQF, DES25-C12DK1EC3QF, DES25-C12DK1EW3QF, DES25-C12DK1KCCQF, DES25-C12DK1KWCQF

2.5" SATA SSD

PRODUCT FEATURES

// 2.5"
// 3D TLC
// SATA 3
// 3TE7
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3TE7

General information
SKU / Item Number2.5 SATA SSD 3TE7DES25-32GDK1EC3SF, DES25-01TDK1EC1QF, DES25-01TDK1EW1QF, DES25-32GDK1EW3SF, DES25-64GDK1EC3DF, DES25-64GDK1EW3DF, DES25-A28DK1EC3QF, DES25-A28DK1EW3QF, DES25-B56DK1EC3QF, DES25-B56DK1EW3QF, DES25-C12DK1EC3QF, DES25-C12DK1EW3QF, DES25-01TDK1KCCQF, DES25-02TDK1KCCQF, DES25-A28DK1KCCDF, DES25-B56DK1KCCQF, DES25-C12DK1KCCQF, DES25-01TDK1KWCQF, DES25-02TDK1KWCQF, DES25-A28DK1KWCDF, DES25-B56DK1KWCQF, DES25-C12DK1KWCQF, DES25-64GDK1KWCSF
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3TE7
Connection (Interface)SATA 3
Flash structureSSD
Flash type3D TLC
chip enclosureSlim inside, TSOP 1, TSOP 3
Write/Erase cycles (P/E limit)3000
Capacity1 TB, 2 TB, 32 GB, 64 GB, 128 GB, 256 GB, 512 GB
ControllerID301 (MK8215 with Innodisk logo)
ECC (Error-Correcting Code)Supported (24 bits per 1 KB)
Channel1, 2, 4
Maximum current draw2,1 W
iDataGuardis supported
iPowerguardis supported
PerformanceFlash chipKioxia (Toshiba)
Measuring instrumentCrystalDiskMark 5.1.2
Sequential reading180 MB/s, 350 MB/s, 420 MB/s, 530 MB/s, 540 MB/s, 550 MB/s, 560 MB/s, -
Sequential writing35 MB/s, 70 MB/s, 150 MB/s, 290 MB/s, 330 MB/s, 340 MB/s, 500 MB/s, 510 MB/s, 520 MB/s, -
4KB random (QD32) read8300 IOPS, 12000 IOPS, 22000 IOPS, 37000 IOPS, 44000 IOPS, 56000 IOPS, 77000 IOPS, 80000 IOPS, 82000 IOPS, 83000 IOPS, 370020 IOPS, -
4KB Random (QD32) Write9000 IOPS, 18000 IOPS, 21000 IOPS, 36000 IOPS, 41000 IOPS, 67000 IOPS, 71000 IOPS, 73000 IOPS, 74000 IOPS, -
Temperature sensorYes
TRIMis supported
Flash mode64-layer 3D flash (BiCS3 / B16 / B17), 112/128 Layer 3D Flash
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-40°C to 85°C
Relative humidityOperation10 to 95%, non-condensing
DimensionsForm factor2.5"
InterfaceSATA III
Width69,8 mm
Deep100 mm
Height6,8 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
RoHS compliantYes
