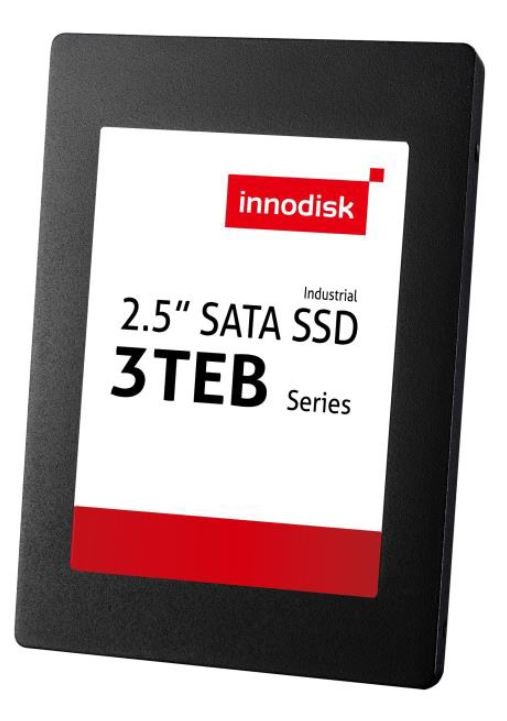

2.5" SATA SSD
// 2.5"
// Kioxia 3D TLC
// SATA 3
// 3TEB
// 0°C to 70°C | -40°C to 85°C
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Innodisk 2.5 SATA SSD 3TEB
| General information | ||||
| SKU / Item Number | 2.5 SATA SSD 3TEB | |||
| Product Basic Data | ||||
| Manufacturer | Innodisk | |||
| Flash storage media | ||||
| Series | 3TEB | |||
| Connection (Interface) | SATA 3 | |||
| Flash structure | SSD | |||
| Flash type | Kioxia 3D TLC | |||
| Write/Erase cycles (P/E limit) | 3000 | |||
| Capacity | 1 TB, 2 TB, 64 GB, 128 GB, 256 GB, 512 GB | |||
| ECC (Error-Correcting Code) | Supported (24 bits per 1 KB) | |||
| Channel | 1, 2 | |||
| Maximum current draw | 1,3 W | |||
| iDataGuard | is supported | |||
| iPowerguard | is supported | |||
| Temperature sensor | Yes | |||
| TRIM | is supported | |||
| Flash mode | 112/128 Layer 3D Flash | |||
| ATA Security | Yes | |||
| S.M.A.R.T. | Yes | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0°C to 70°C, -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | 2.5" | ||
| Width | 69,8 mm | |||
| Deep | 100 mm | |||
| Height | 7 mm | |||
| Vibration | Vibration | 20G, 7-2000Hz, 3 axes | ||
| Reference Standard | IEC 68-2-6 | |||
| Shock | Measurement Data | 1500G, 0.5 ms, 3 axes | ||
| Reference Standard | IEC 68-2-27 | |||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 3.000.000 h | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
