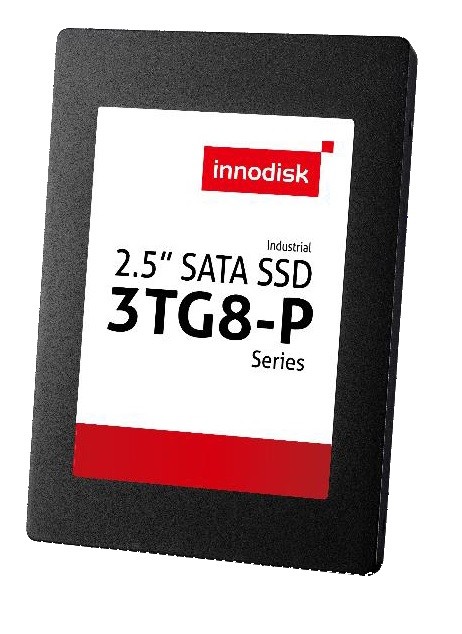

Innodisk 2.5 SATA SSD 3TG8-P eTLC

DGS25-01TDE1NCAEFP, DGS25-01TDE1NWAEFP, DGS25-01TDE2NCAEFP, DGS25-01TDE2NWAEFP, DGS25-02TDE1NCAEFP, DGS25-02TDE1NWAEFP, DGS25-02TDE2NCAEFP, DGS25-02TDE2NWAEFP, DGS25-04TDE1NCAEFP, DGS25-04TDE1NWAEFP, DGS25-04TDE2NCAEFP, DGS25-04TDE2NWAEFP, DGS25-08TDE1NCAEFP, DGS25-08TDE1NWAEFP, DGS25-08TDE2NCAEFP, DGS25-08TDE2NWAEFP

2.5" SATA SSD

The product is EOL (End Of Life)!

PRODUCT FEATURES

// 2.5"
// 3D TLC
// SATA 3
// 3TG8-P
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3TG8-P eTLC

General information
SKU / Item Number2.5 SATA SSD 3TG8-P eTLCDGS25-01TDE1NCAEFP, DGS25-01TDE1NWAEFP, DGS25-01TDE2NCAEFP, DGS25-01TDE2NWAEFP, DGS25-02TDE1NCAEFP, DGS25-02TDE1NWAEFP, DGS25-02TDE2NCAEFP, DGS25-02TDE2NWAEFP, DGS25-04TDE1NCAEFP, DGS25-04TDE1NWAEFP, DGS25-04TDE2NCAEFP, DGS25-04TDE2NWAEFP, DGS25-08TDE1NCAEFP, DGS25-08TDE1NWAEFP, DGS25-08TDE2NCAEFP, DGS25-08TDE2NWAEFP
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3TG8-P
Connection (Interface)SATA 3
Flash structureSSD
Flash type3D TLC
chip enclosureBGA (Ball Grid Array) A
Write/Erase cycles (P/E limit)7000
Capacity1 TB, 2 TB, 4 TB, 8 TB
Channel8
Maximum current draw5,2 W
iCellis supported
iDataGuardis supported
External DRAM bufferis supported
Flash mode3D TLC, 112 layers (P/E cycles: 7,000)
ATA SecurityYes
Advanced Encryption Standard (AES)Yes
S.M.A.R.T.Yes
TCG OpalNo, Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-40°C to 85°C
DimensionsForm factor2.5"
Width69,8 mm
Deep100 mm
Height7 mm
VibrationVibration20G, 7-2000Hz, 3 axes
ShockMeasurement Data1500G, 0.5 ms, 3 axes
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Certificates / Conformities
CEYes
RoHS compliantYes
