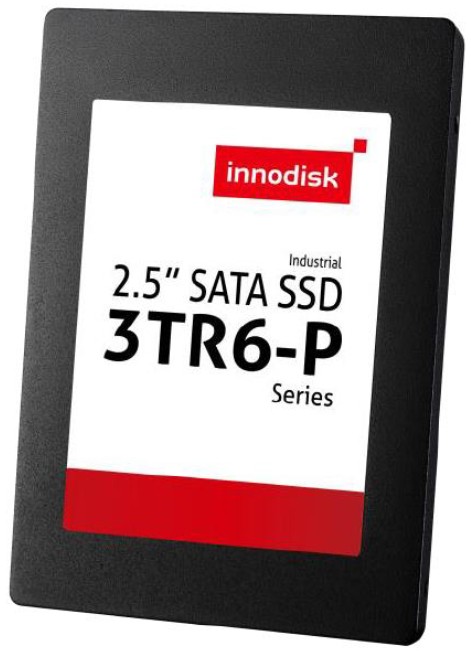

Innodisk 2.5 SATA SSD 3TR6-P

DRS25-01TM72EC1QFP, DRS25-01TM72EW1QFP, DRS25-02TM72ECAQFP, DRS25-02TM72EWAQFP, DRS25-A28M72EC1QFP, DRS25-A28M72EW1QFP, DRS25-B56M72EC1QFP, DRS25-B56M72EW1QFP, DRS25-C12M72EC1QFP, DRS25-C12M72EW1QFP

2.5" SATA SSD

PRODUCT FEATURES

// 2.5"
// 3D TLC
// 3TR6-P
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3TR6-P

General information
SKU / Item Number2.5 SATA SSD 3TR6-PDRS25-01TM72EC1QFP, DRS25-01TM72EW1QFP, DRS25-02TM72ECAQFP, DRS25-02TM72EWAQFP, DRS25-A28M72EC1QFP, DRS25-A28M72EW1QFP, DRS25-B56M72EC1QFP, DRS25-B56M72EW1QFP, DRS25-C12M72EC1QFP, DRS25-C12M72EW1QFP
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3TR6-P
Flash structureSSD
Flash type3D TLC
chip enclosureBGA (Ball Grid Array) A, TSOP 1
Write/Erase cycles (P/E limit)3000
Capacity1 TB, 2 TB, 128 GB, 256 GB, 512 GB
Controller88SS1080 (SATA + AES)
ECC (Error-Correcting Code)Supported (24 bits per 1 KB)
Channel4
Maximum current draw4,2 W
iCellis supported
iDataGuardis supported
iPowerguardis supported
Performance Measuring instrumentCrystalDiskMark 5.1.2
Sequential reading500 MB/s, 540 MB/s, 550 MB/s, 560 MB/s
Sequential writing130 MB/s, 280 MB/s, 420 MB/s, 460 MB/s, 500 MB/s
4KB random (QD32) read41000 IOPS, 65000 IOPS, 67000 IOPS
4KB Random (QD32) Write34000 IOPS, 57000 IOPS, 59500 IOPS, 61000 IOPS
TRIMis supported
External DRAM bufferis supported
Quick EraseYes
Flash mode64-layer 3D flash (BiCS3 / B16 / B17)
ATA SecurityYes
Advanced Encryption Standard (AES)Yes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-40°C to 85°C
Relative humidityOperation10 to 95%, non-condensing
Storage10 to 95%, non-condensing
DimensionsForm factor2.5"
InterfaceSATA III
Width69,85 mm
Deep100 mm
Height6,8 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardMIL-STD-810G
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardMIL-STD-810G
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelecordia SR-332 GB
Certificates / Conformities
CEYes
RoHS compliantYes
