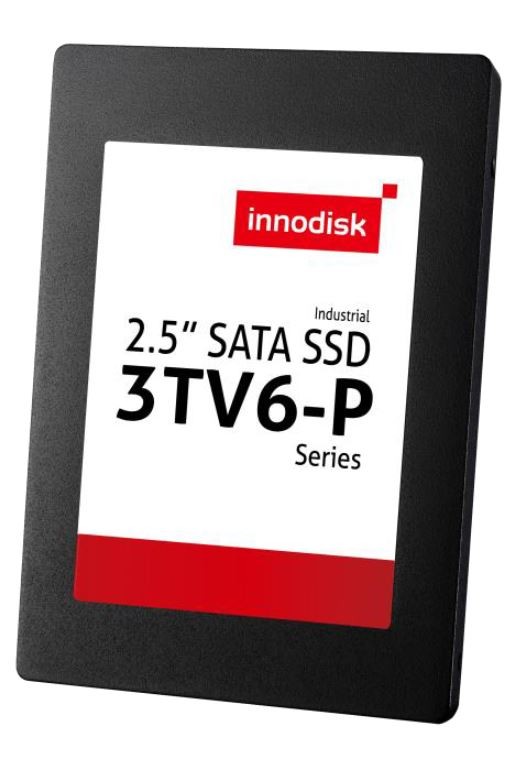

Innodisk 2.5 SATA SSD 3TV6-P

DVS25-01TM72KCAQFP, DVS25-01TM72KWAQFP, DVS25-02TM72KCAQFP, DVS25-02TM72KWAQFP, DVS25-04TM72KCAQFP, DVS25-04TM72KWAQFP, DVS25-A28M72KCASFP, DVS25-A28M72KWASFP, DVS25-B56M72KCADFP, DVS25-B56M72KWADFP, DVS25-C12M72KCAQFP, DVS25-C12M72KWAQFP

2.5" SATA SSD

PRODUCT FEATURES

// 2.5"
// Kioxia 3D TLC
// SATA 3
// 3TV6-P
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 SATA SSD 3TV6-P

General information
SKU / Item Number2.5 SATA SSD 3TV6-PDVS25-01TM72KCAQFP, DVS25-02TM72KCAQFP, DVS25-A28M72KCASFP, DVS25-B56M72KCADFP, DVS25-C12M72KCAQFP, DVS25-04TM72KCAQFP, DVS25-01TM72KWAQFP, DVS25-02TM72KWAQFP, DVS25-04TM72KWAQFP, DVS25-A28M72KWASFP, DVS25-B56M72KWADFP, DVS25-C12M72KWAQFP
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series3TV6-P
Connection (Interface)SATA 3
Flash structureSSD
Flash typeKioxia 3D TLC
chip enclosureBGA (Ball Grid Array) A
Write/Erase cycles (P/E limit)3000
Capacity1 TB, 2 TB, 4 TB, 128 GB, 256 GB, 512 GB
Controller88SS1080 (SATA + AES)
ECC (Error-Correcting Code)Supported (24 bits per 1 KB)
Channel1, 2, 4
Maximum current draw3,5 W
iCellis supported
iDataGuardis supported
Temperature sensorYes
External DRAM bufferis supported
Flash mode112/128 Layer 3D Flash
ATA SecurityYes
Advanced Encryption Standard (AES)Yes
S.M.A.R.T.Yes
TCG OpalYes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-40°C to 85°C
Relative humidityOperation10 to 95%, non-condensing
Storage10 to 95%, non-condensing
DimensionsForm factor2.5"
Width69,85 mm
Deep100 mm
Height9,5 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelecordia SR-332 GB
Certificates / Conformities
CEYes
FCCClass AYes
Additional certificates / compliance approvalsEN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT), EN 61000-4-5 (2 kV Surge Protection), EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
RoHS compliantYes
