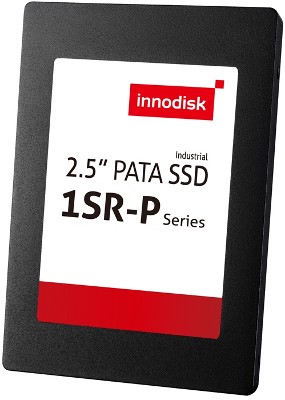

Innodisk 2.5 PATA SSD 1SR-P

DRP25-08GD67AC1QB, DRP25-08GD67AW1QB, DRP25-16GD67AC1QB, DRP25-16GD67AW1QB, DRP25-32GD67AC1QB, DRP25-32GD67AW1QB, DRP25-64GD67AC1QB, DRP25-64GD67AW1QB, DRP25-A28D67AC1QB, DRP25-A28D67AW1QB, DRP25-B56D67AC1QB, DRP25-B56D67AW1QB

PATA SSD

The product is EOL (End Of Life)!

PRODUCT FEATURES

// PATA
// SLC
// PATA
// 1SR-P
// 0°C to 70°C | -40°C to 85°C

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Innodisk 2.5 PATA SSD 1SR-P

General information
SKU / Item Number2.5 PATA SSD 1SR-PDRP25-08GD67AC1QB, DRP25-08GD67AW1QB, DRP25-16GD67AC1QB, DRP25-16GD67AW1QB, DRP25-32GD67AC1QB, DRP25-32GD67AW1QB, DRP25-64GD67AC1QB, DRP25-64GD67AW1QB, DRP25-A28D67AC1QB, DRP25-A28D67AW1QB, DRP25-B56D67AC1QB, DRP25-B56D67AW1QB
Product Basic Data
ManufacturerInnodisk
Flash storage media
Series1SR-P
Connection (Interface)PATA
Flash structureSSD
Flash typeSLC
Write/Erase cycles (P/E limit)100000
Capacity8 GB, 16 GB, 32 GB, 64 GB, 128 GB, 256 GB
ControllerID106
Channel4
Maximum current draw2,5 W
PerformanceFlash chipKioxia (Toshiba)
Sequential reading90 MB/s
Sequential writing70 MB/s, 90 MB/s
Temperature sensorYes
External DRAM bufferis supported
Flash modeAsynchronous NAND
ATA SecurityYes
S.M.A.R.T.Yes
Mechanical / Environment
TemperatureOperation0°C to 70°C, -40°C to 85°C
Storage-55°C to 95°C
Relative humidityOperation10 to 95%, non-condensing
DimensionsForm factorPATA
Width70 mm
Deep100 mm
Height9 mm
VibrationVibration20G, 7-2000Hz, 3 axes
Reference StandardIEC 68-2-6
ShockMeasurement Data1500G, 0.5 ms, 3 axes
Reference StandardIEC 68-2-27
MTBF (Mean Time Between Failures)MTBF at 25°C3.000.000 h
Calculation modelTelcordia SR-332 GB
Certificates / Conformities
CEYes
FCCClass BYes
Additional certificates / compliance approvalsEN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (Electrostatic Discharge), EN 61000-4-3, EN 61000-4-4 (EFT)
RoHS compliantYes
