COM Express Basic
// COM Express Basic
// [Intel Core Ultra 5 325 | Intel Core Ultra 5 336H | Intel Core Ultra 7 356H | Intel Core Ultra X7 Processor 358H | Intel Core Ultra X7 Processor 368H | Intel Core Ultra X9 Processor 388H]
// 262-pin SO-DIMM DDR5
// LVDS|DDI
// 1 x G-LAN
// 12 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

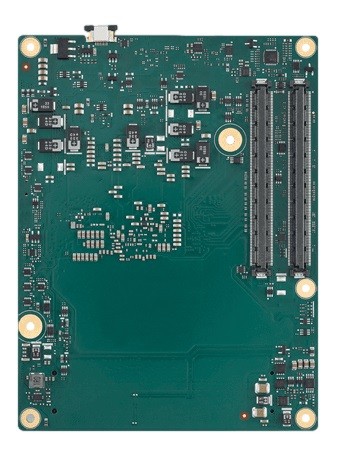

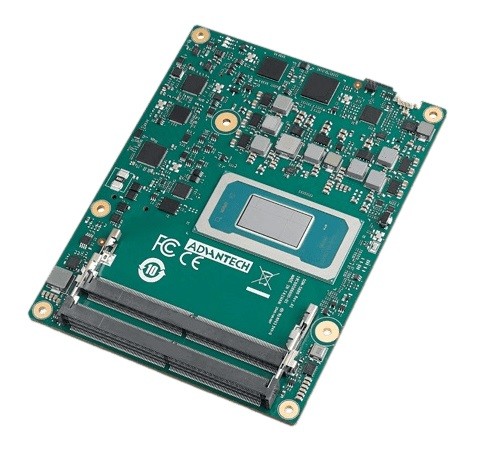

Basic Module: Advantech SOM-5886
| General information | ||||
| SKU / Item Number | SOM-5886 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | Intel Panther Lake | ||
| Number | Intel Core Ultra 5 325, Intel Core Ultra 5 336H, Intel Core Ultra 7 356H, Intel Core Ultra X7 Processor 358H, Intel Core Ultra X7 Processor 368H, Intel Core Ultra X9 Processor 388H | |||
| CPU cores | 8 Pce, 12 Pce, 16 Pce | |||
| Threads | 8 Pce, 12 Pce, 16 Pce | |||
| Socket | BGA 2540 | |||
| Performance core base clock frequency | 1,9 GHz, 2 GHz, 2,1 GHz | |||
| Performance Core Max Turbo Frequency | 4,5 GHz, 4,6 GHz, 4,7 GHz, 4,8 GHz, 5 GHz, 5,1 GHz | |||
| Efficient-core base clock frequency | 1,5 GHz, 1,6 GHz | |||
| Efficient-core Max Turbo Frequency | 3,4 GHz, 3,5 GHz, 3,8 GHz | |||
| Cache | 12 MB, 18 MB | |||
| Basic power consumption of the processor | 25 W | |||
| Maximum Turbo Power Consumption | 55 W, 80 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM/CSO-DIMM | |||
| DIMM data transfer rate | 7200 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 128 GB | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Graphics | ||||
| Processor | Intel Arc B390, Intel Graphics | |||
| Performance | TOPS (INT8) | 47, 50 | ||
| Screens (Multi-display) | 4 displays | |||
| HDMI | Version | 2.1 | ||
| DisplayPort | Version | 2.1 | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| DDI (Digital Display Interfaces) | DP | Maximum resolution | 4096 x 2304 at 60 Hz | |
| HDMI | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| eDP (Embedded DisplayPort) | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Extension | ||||
| PCI Express version | 4.0 | |||
| Max. PCI Express lanes | 8 Pce | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||
| Internal I/O | ||||
| USB | USB 2.0 | Interface | 8 Pce | |
| USB 3.2 | Generation | Gen. 2 | ||
| Interface | 4 Pce | |||
| USB 4.0 | Interface | 2 Pce | ||
| Serial | RS-232 | Interface | 2 Pce | |
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| LPC | 1 Pce | |||
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Serial ATA | SATA R3.0 (Interface) | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| OS / Software | ||||
| Windows | Windows 11 | Supported | ||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows, Windows Embedded | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | COM Express Basic | ||
| Width | 125 mm | |||
| Deep | 95 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Compatibility | PICMG COM Express R3.1, Type 6 | |||
| RoHS compliant | Yes | |||
