COM-HPC
// COM HPC Client Mini
// Qualcomm Dragonwing QCS9075
// 36 GB
// 2 x G-LAN
// 6 x USB (internal)
// 1 x CAN Bus [CAN-FD]
// Digital I/O (12-Bit)
Sales only to business customers.
Delivery time: upon request

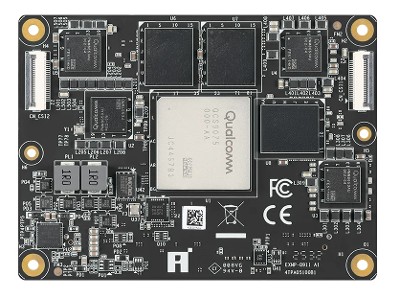

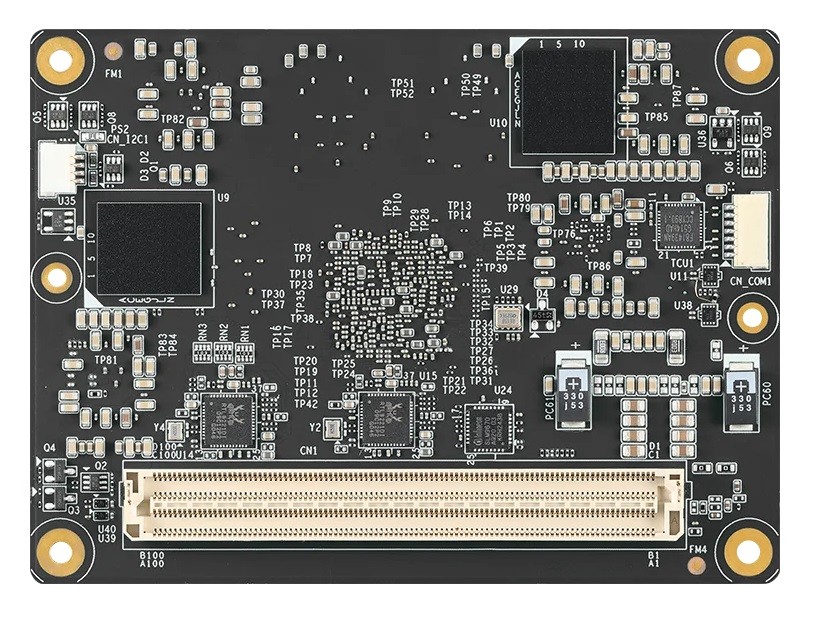

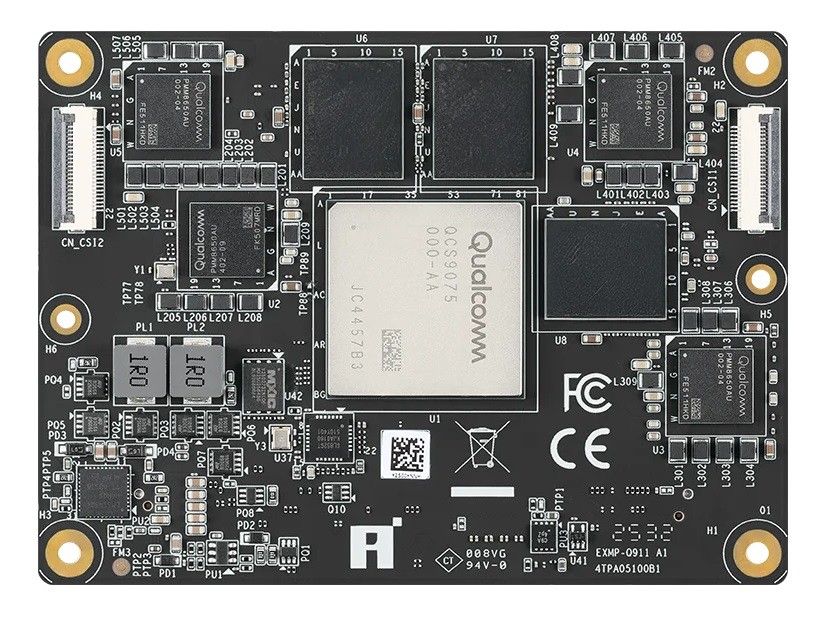

Basic Module: Innodisk EXMP-Q911
| General information | ||||
| SKU / Item Number | EXMP-Q911 | |||
| Product Basic Data | ||||
| Manufacturer | Innodisk | |||
| Product ID | EXMP-Q911-00A1-W1 | |||
| System | ||||
| Processor | Number | Qualcomm Dragonwing QCS9075 | ||
| CPU cores | 8 Pce | |||
| Max Turbo Frequency | 2,36 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| Internal memory | 36 GB | |||
| Storage | Universal Flash Storage (UFS) | Memory | 128 GB GB | |
| Version | 3.1 | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81439 | |
| Graphics | ||||
| Processor | Qualcomm Adreno 663 | |||
| Performance | TOPS (INT8) | 100 | ||
| DisplayPort | Version | 1.2 | ||
| Extension | ||||
| PCIe x2 | Generation | 4 | ||
| x2 Signal (Interface) | 1 Pce | |||
| PCIe x4 | Generation | 4 | ||
| x4 signal (interface) | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x2, 1x PCIe x4 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8221D (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| USB | USB 2.0 | Interface | 4 Pce | |
| USB 3.2 | Generation | Gen. 2 | ||
| Interface | 2 Pce | |||
| Serial | RS-232 / 422 / 485 | Interface | 1 Pce | |
| Digital I/O | Bits | 12-bit | 1 Pce | |
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| UART | Tx/Rx | 1 Pce | ||
| Tx/Rx/CTS/RTS | 1 Pce | |||
| Image Capture Interfaces | Camera Input 1 | Quantity | 2 Pce | |
| Lanes | 4 Pce | |||
| Standard | MIPI CSI-2 | |||
| CAN bus | Version 2.0B (Interface) | 1 Pce | ||
| Protocol | CAN-FD | |||
| Audio | Verstärker | 1 Pce | ||
| I²S | 4 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| OS / Software | ||||
| Linux | Distribution | Ubuntu 22.04, Yocto 3.0 | ||
| Supported OS | Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 85°C | ||
| Storage | -40°C to 90°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | COM HPC Client Mini | ||
| Width | 95 mm | |||
| Deep | 70 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 30G, 18 ms | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 54 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | EN 61000-4-2 (Electrostatic Discharge) | |||
| RoHS compliant | Yes | |||
