Edge Device Module
// [Nvidia Jetson T4000 | Nvidia Jetson T5000]
// [64 GB | 128 GB]
// 2 x G-LAN
// 5 x USB
// [0 | 4] x CAN Bus [CAN-FD]
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

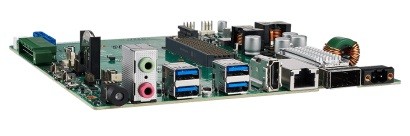

Basic Module: Advantech MIB-742-AT
| General information | ||||
| SKU / Item Number | MIB-742-AT | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Number | Nvidia Jetson T4000, Nvidia Jetson T5000 | ||
| CPU cores | 12 Pce, 14 Pce | |||
| Basic power consumption of the processor | 40 W | |||
| Maximum Turbo Power Consumption | 70 W, 130 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| Internal memory | 64 GB, 128 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 1024 GB | ||
| Graphics | ||||
| Processor | Nvidia Blackwell | |||
| Cores | RT Cores | 1536 Pce, 2560 Pce | ||
| Tensor | 64 Pce, 96 Pce | |||
| Performance | TFLOPS (FP4-Sparse) | 1.200, 2.070 | ||
| HDMI | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), USB 2.0, Wi-Fi | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, USB 2.0, USB 3.0 | |||
| Supported dimensions | 3042, 3052 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | B, E, M | |||
| External I/O | ||||
| Ethernet | RJ-45 | 1 Pce | ||
| QSFP28 | 1 Pce | |||
| USB | USB 3.2 (Gen 2) | 4 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Display | HDMI | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Internal I/O | ||||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| CAN bus | Version 2.0B (with isolation) | 4 Pce, - | ||
| Protocol | CAN-FD | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Debug port | is supported | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 19 to 36V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 19~36V | |||
| OS / Software | ||||
| Linux | Distribution | Linux | ||
| Supported OS | Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -10° to 60°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Width | 180 mm | ||
| Deep | 180 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Weight | 1000 g | |||
| Mounting option | Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
