Open Standard Module (OSM)
// Open Standard Module (OSM 1.1)
// [Rockchip RK3588 | Rockchip RK3588J]
// [Rockchip RK3588 | Rockchip RK3588J]
// [4 GB | 8 GB]
// 2 x G-LAN
// 6 x USB (internal)
// [32 GB | 64 GB] eMMC
// Digital I/O (8-Bit)
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

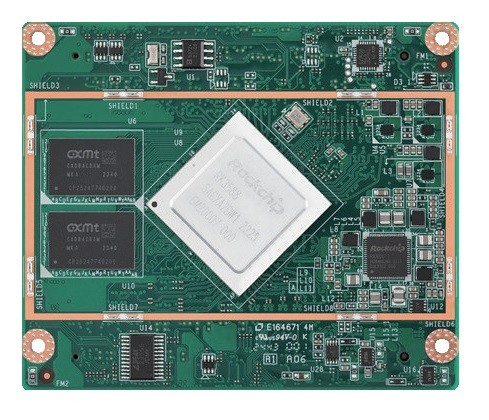

Basic Module: Advantech AOM-3821
| General information | ||||
| SKU / Item Number | AOM-3821 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | ARM Cortex-A76 | ||
| Number | Rockchip RK3588, Rockchip RK3588J | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 2,4 GHz | |||
| Processor 2 | Series | ARM Cortex-A55 | ||
| Number | Rockchip RK3588, Rockchip RK3588J | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 1,8 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Maximum expansion | 32 GB | |||
| Internal memory | 4 GB, 8 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 32 GB, 64 GB | ||
| Graphics | ||||
| Processor | ARM Mali-G610 MP4 | |||
| HDMI | Version | 2.0 | ||
| DisplayPort | Version | 1.4 | ||
| Extension | ||||
| PCIe x2 | x2 Signal (Interface) | 2 Pce | ||
| PCIe x4 | Generation | 3 | ||
| x4 signal (interface) | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x4, 2x PCIe x2 | |||
| External I/O | ||||
| Ethernet | Interface | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Interface | 3 Pce | |
| USB 3.0 | Interface | 2 Pce | ||
| USB On-The-Go (USB OTG) | Interface | 1 Pce | ||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial Peripheral Interface (SPI) | 2 Pce | |||
| I²C (Inter-Integrated Circuit) | 2 Pce | |||
| UART | Tx/Rx | 1 Pce | ||
| Tx/Rx/CTS/RTS | 1 Pce | |||
| Image Capture Interfaces | Camera Input 1 | Quantity | 2 Pce | |
| Lanes | 4 Pce | |||
| Audio | I²S | 2 Pce | ||
| Debug port | is supported | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| OS / Software | ||||
| Linux | Distribution | Debian 12 | ||
| Android | Release | 14 | ||
| Supported OS | Android, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0°C to 70°C, -40°C to 85°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Open Standard Module (OSM 1.1) | ||
| Width | 77 mm | |||
| Deep | 65 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
