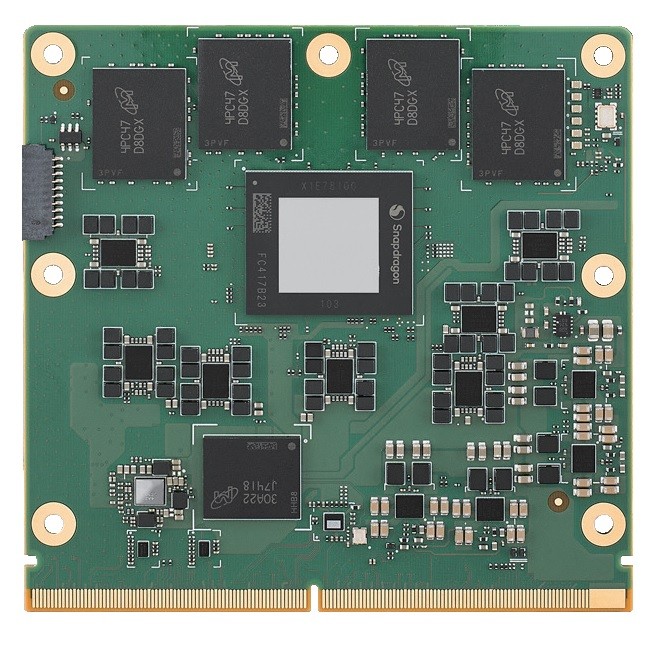

Advantech AOM-6731

SMARC

PRODUCT FEATURES

// SMARC
// Qualcomm Snapdragon X1E-78-100
// 16 GB
// 1 x G-LAN
// 6 x USB (internal)
// 2 x PCIe x1

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: Advantech AOM-6731

General information
	SKU / Item Number			AOM-6731
Product Basic Data
	Manufacturer			Advantech
System
	Processor	Series		Qualcomm Snapdragon X-Elite
		Number		Qualcomm Snapdragon X1E-78-100
		CPU cores		12 Pce
		Max Turbo Frequency		3,4 GHz
	Chipset			SoC (System on a Chip)
	Memory	Memory Type		DDR5
		DIMM data transfer rate		8400 MT/s
		Internal memory		16 GB
	Storage	Universal Flash Storage (UFS)	Memory	256 GB
Graphics
	DisplayPort	Maximum resolution		4096 x 2160 at 60 Hz
		Version		1.4A
	eDP (Embedded DisplayPort)	Maximum resolution		4096 x 2160 at 60 Hz
Extension
	PCIe x1	Generation		3
		x1 Signal (Interface)		2 Pce
	PCIe x2	Generation		3
		x2 Signal (Interface)		1 Pce
	PCIe Interfaces			2x PCIe x1, 1x PCIe x2
	Storage			SD / MMC card
Network
	G-LAN	Controller	Chipset	Realtek RTL8111E (10/100/1000 Mbps)
			Quantity	1 Pce
	Network			1x G-LAN
Internal I/O
	USB	USB 2.0	Interface	4 Pce
		USB 3.2	Generation	Gen. 2
			Interface	2 Pce
	Digital I/O	Bits	4-bit	1 Pce
	Serial Peripheral Interface (SPI)			1 Pce
	I²C (Inter-Integrated Circuit)			2 Pce
	UART	Tx/Rx		2 Pce
		Tx/Rx/CTS/RTS		2 Pce
	Image Capture Interfaces	Camera Input 1	Quantity	1 Pce
			Lanes	2 Pce
		Camera Input 2	Quantity	3 Pce
			Lanes	4 Pce
OS / Software
	Windows	Windows 11		Supported
	Supported OS			Windows
Mechanical / Environment
	Temperature	Operation		0° to 60°C
	Relative humidity	Operation		5 to 95%, non-condensing
	Dimensions	Form factor		SMARC
		Width		82 mm
		Deep		80 mm
Certificates / Conformities
	CE			Yes
	FCC	Class B		Yes
	RoHS compliant			Yes
