SMARC
// SMARC
// Rockchip RK3588
// Rockchip RK3588
// 4 GB
// 2 x G-LAN
// 6 x USB (internal)
// 2 x CAN Bus
// 32 GB eMMC
// Digital I/O (12-Bit)
// 4 x PCIe x1
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

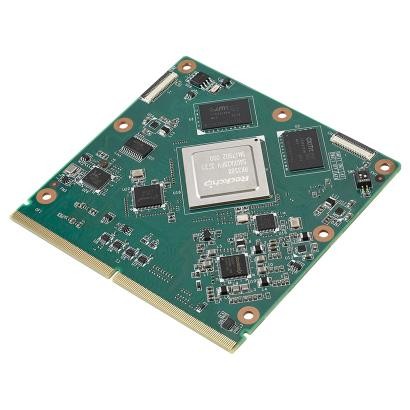

Basic Module: Advantech ROM-6881
| General information | ||||
| SKU / Item Number | ROM-6881 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | ARM Cortex-A76 | ||
| Number | Rockchip RK3588 | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 2,4 GHz | |||
| Processor 2 | Series | ARM Cortex-A55 | ||
| Number | Rockchip RK3588 | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 1,8 GHz | |||
| Memory | Memory Type | DDR4 | ||
| Maximum expansion | 32 GB | |||
| Internal memory | 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 32 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 32 GB | |||
| Graphics | ||||
| Processor | ARM Mali-G610 MP4 | |||
| Extension | ||||
| PCIe x1 | Generation | 3 | ||
| x1 Signal | 4 Pce | |||
| PCIe Interfaces | 4x PCIe x1 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8211FSI (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| USB | USB 2.0 | Interface | 3 Pce | |
| USB 3.0 | Interface | 2 Pce | ||
| USB On-The-Go (USB OTG) | Interface | 1 Pce | ||
| Display | LVDS (Low Voltage Differential Signaling) | Single channel | ||
| LVDS interface | 1 Pce | |||
| DisplayPort interface | 1 Pce | |||
| eDP (Embedded DisplayPort) lanes | 1 Pce | |||
| HDMI Interface | 1 Pce | |||
| Digital I/O | Bits | 12-bit | 1 Pce | |
| Serial Peripheral Interface (SPI) | 2 Pce | |||
| I²C (Inter-Integrated Circuit) | 5 Pce | |||
| UART | Tx/Rx | 2 Pce | ||
| Tx/Rx/CTS/RTS | 2 Pce | |||
| Image Capture Interfaces | Camera Input 1 | MIPI-CSI (Camera Serial Interface) | 2 Pce | |
| CAN bus | Version 2.0B (Interface) | 2 Pce | ||
| Audio | I²S | 1 Pce | ||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| OS / Software | ||||
| Linux | Distribution | Debian 11 | ||
| Android | Release | 13 | ||
| Supported OS | Android, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -40°C to 85°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | SMARC | ||
| Width | 82 mm | |||
| Deep | 80 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
