AI System
// AI System
// [Intel Core Ultra 3 Processor 105UL | Intel Core Ultra 5 Processor 135HL | Intel Core Ultra 7 Processor 165HL]
// 16 GB RAM
// 2 x Display
// 1 x Serial
// 6 x USB (Back side)
// 2 x G-LAN (Back side)
// 2 x M.2 Slot
// 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

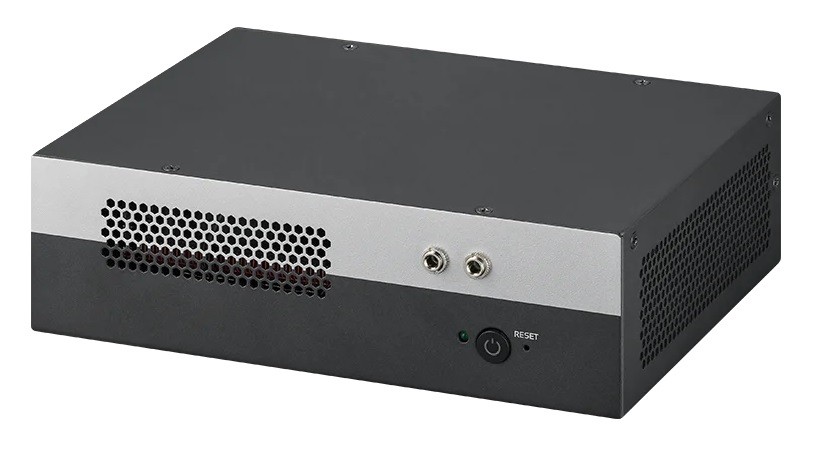

Basic Module: Innodisk APEX-E100
| General information | ||||
| SKU / Item Number | APEX-E100 | |||
| Product Basic Data | ||||
| Manufacturer | Innodisk | |||
| System | ||||
| Processor | Series | Intel Meteor Lake | ||
| Number | Intel Core Ultra 3 Processor 105UL, Intel Core Ultra 5 Processor 135HL, Intel Core Ultra 7 Processor 165HL | |||
| CPU cores | 8 Pce, 14 Pce, 16 Pce | |||
| Threads | 10 Pce, 18 Pce, 22 Pce | |||
| Socket | LGA 1851 | |||
| Performance core base clock frequency | 1,4 GHz, 1,5 GHz, 1,7 GHz | |||
| Performance Core Max Turbo Frequency | 4,2 GHz, 4,6 GHz, 5 GHz | |||
| Efficient-core base clock frequency | 0,9 GHz, 1 GHz, 1,2 GHz | |||
| Efficient-core Max Turbo Frequency | 3,5 GHz, 3,6 GHz, 3,8 GHz | |||
| Cache | 10 MB, 18 MB, 24 MB | |||
| Basic power consumption of the processor | 15 W, 45 W | |||
| Maximum Turbo Power Consumption | 57 W, 115 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 96 GB | |||
| Internal memory | 16 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 512 GB | ||
| BIOS | Insyde SPI 256 Mbit | |||
| Graphics | ||||
| Processor | Intel Arc Graphics, Intel Graphics | |||
| Performance | TOPS (INT8) | 36 | ||
| HDMI | Maximum resolution | 7680 x 4320 at 30 Hz | ||
| Version | 2.1 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen 4), SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| Image Capture Interfaces | Camera Input 1 | Connector | USB-C (MIPI-CSI) | |
| Quantity | 2 Pce | |||

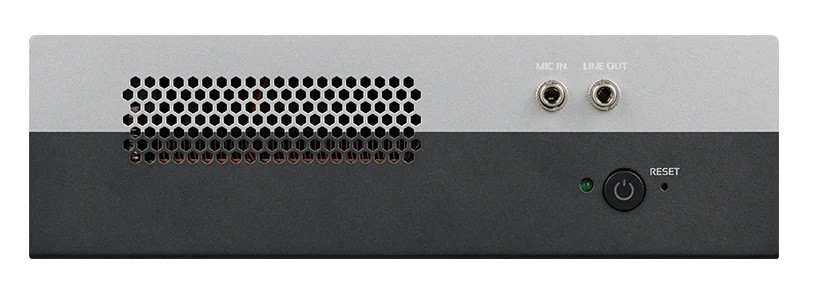

| Externe I/O (Front Panel) | ||||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||

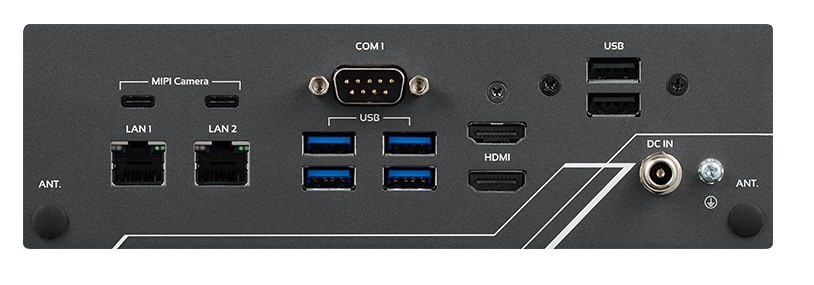

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 2 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 1) | 2 Pce | |||
| USB 3.2 (Gen 2) | 2 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | fTPM 2.0 (Firmware Simulation) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | Male connector (screw-in) | |||
| Current | 12,5 A | |||
| Power supply - Input | DC: 12V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -20° down to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | AI System | ||
| Width | 188 mm | |||
| Deep | 140 mm | |||
| Height | 56 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 30G, 18 ms | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 1600 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Power | 1 Pce | ||
| Antenna holes | 2 Pce | |||
| Color | Dark grey | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
