AI System
// AI System
// Intel Core i7-13700E
// Active (fan cooling) cooled
// 192 GB RAM
// 3 x Display
// 2 x Serial
// 9 x USB (Front page)
// 5 x G-LAN (Front page)
// 1 x PCIe x1
// 1 x PCIe x4
// 3 x PCIe x16
// 3 x M.2 Slot
// 24 to 48 volts
Please configure your desired product.
Standard Configuration
Sales only to business customers.
Delivery time: upon request

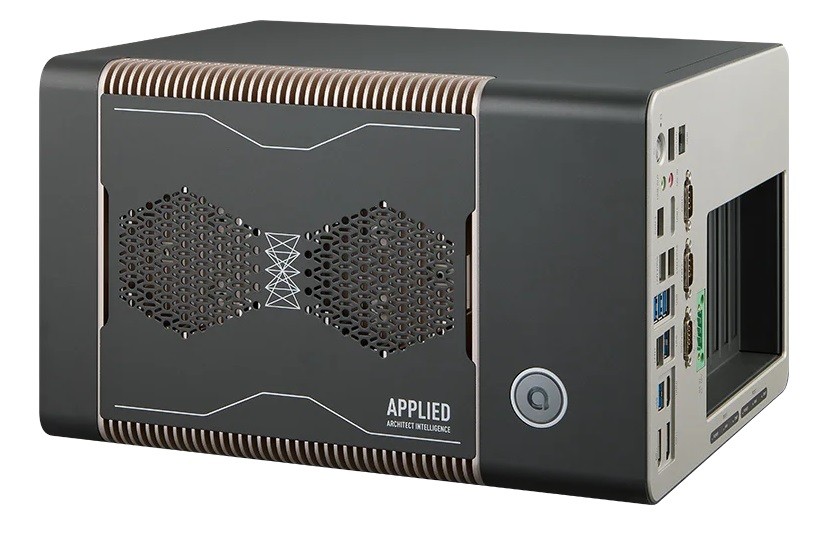

Basic Module: Innodisk APEX-X100-Q
| General information | ||||
| SKU / Item Number | APEX-X100-Q | |||
| Product Basic Data | ||||
| Manufacturer | Innodisk | |||
| System | ||||
| Processor | Series | Intel Raptor Lake | ||
| Number | Intel Core i7-13700E | |||
| CPU cores | 16 Pce | |||
| Threads | 24 Pce | |||
| Socket | LGA 1700 (H6) | |||
| Performance core base clock frequency | 1,9 GHz | |||
| Performance Core Max Turbo Frequency | 5,1 GHz | |||
| Efficient-core base clock frequency | 1,3 GHz | |||
| Efficient-core Max Turbo Frequency | 3,9 GHz | |||
| Cache | 30 MB | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 4 Pce | |||
| Maximum expansion | 192 GB | |||
| Internal memory | 192 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 2 TB | ||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| AI / AI | ||||

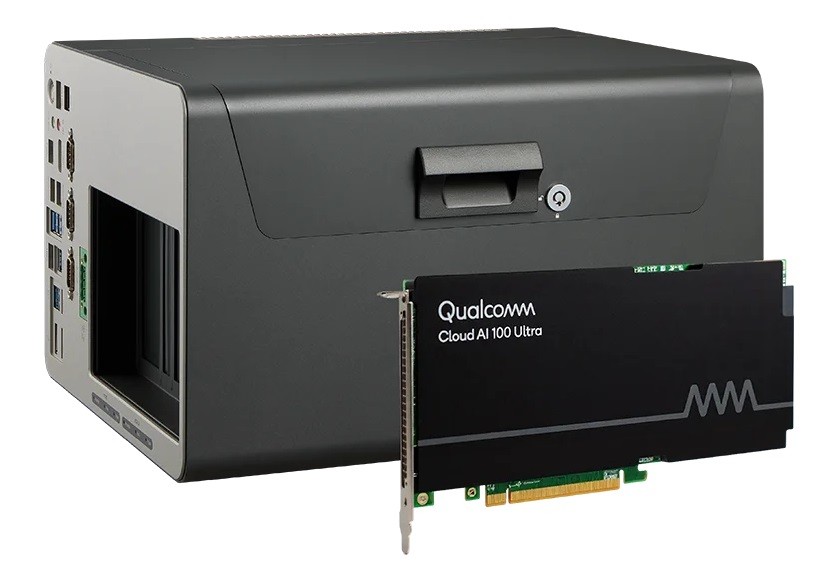

| AI Accelerator | Qualcomm Cloud AI 100 Ultra | |||
| Performance | TOPS (INT8) | 870 | ||
| Graphics | ||||
| Processor | Intel UHD Graphics 770 | |||
| Screens (Multi-display) | 4 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| Version | 2.0 | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 1.4 | |||
| Dual mode | Yes (DP++) | |||
| Extension | ||||
| PCIe x1 | Generation | 3 | ||
| x1 Signal | 1 Pce | |||
| PCIe x4 | Generation | 3 | ||
| x4 signal | 1 Pce | |||
| PCIe x16 | x4 signal | Generation | 3 | |
| Quantity | 1 Pce | |||
| x8 signal | Generation | 4 | ||
| Quantity | 1 Pce | |||
| x16 signal | Generation | 4 | ||
| Quantity | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x1, 1x PCIe x4, 3x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, USB 3.2 Gen 1 | |||
| Supported dimensions | 3052 | |||
| M.2 Key IDs | B, E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Marvell AQC113 (2.5/5/10 Gbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 3 Pce | |||
| Network | 4x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 4 Pce | ||
| RAID support | RAID 0/1/5/10 | is supported | ||
| RAID support | RAID 0/1/5/10 | |||

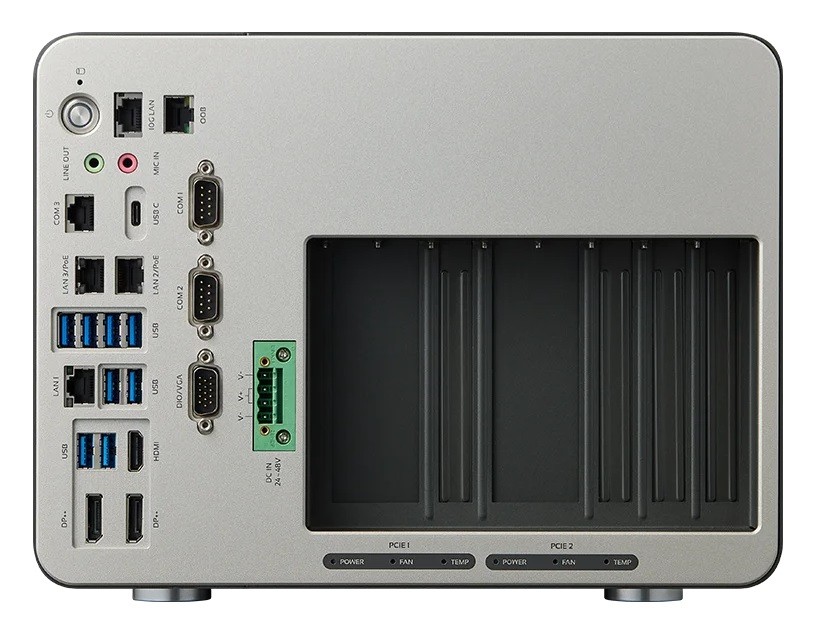

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP++ | 2 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| RJ-45 with PoE | 2 Pce | |||
| RJ-45 with OOB | 1 Pce | |||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| RS-485 | RJ-45 | 1 Pce | ||
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 8-bit | |||
| Connector | DB-9 | |||
| USB | USB 3.2 (Gen 2) | 8 Pce | ||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | dTPM 2.0 (Hardware) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 24 to 48 volts | |||
| Connector | 4-pin terminal plug | |||
| PoE (Power over Ethernet) | Connectors | 2 Pce | ||
| Protocol | IEEE 802.3at / 30W | |||
| Power supply - Input | DC: 24 to 48V | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Dimensions | Form factor | AI System | ||
| Width | 340 mm | |||
| Deep | 279 mm | |||
| Height | 215 mm | |||
| Vibration | Reference Standard | IEC 68-2-64 | ||
| with SSD | 5~500 Hz, 1G | |||
| Shock | Measurement Data | 10G, half sine wave, 11 ms duration | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 10000 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 2 Pce | |||
| System Status | 4 Pce | |||
| Antenna holes | 6 Pce | |||
| Color | Dark grey | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | UKCA | |||
| RoHS compliant | Yes | |||
