Barebone PC
// Barebone PC
// Intel Arrow Lake
// Passive cooled
// 3 x Display
// 2 x Serial
// 4 x USB (Front page)
// [0 | 1] x USB (internal)
// [2 | 4] x G-LAN (Front page)
// 1 x Mini-PCIe
// 2 x M.2 Slot
// 12~36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech MIC-780
| General information | ||||
| SKU / Item Number | MIC-780 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | Intel Arrow Lake | ||
| Socket | LGA 1851 | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | Intel H810, Intel W880 | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 6400 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 128 GB | |||
| ECC (Error-Correcting Code) | is supported, not supported | |||
| Graphics | ||||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| DisplayPort | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2242, 3042, 3052 | |||
| M.2 Key IDs | B | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps), Intel I219V PCIe (10/100/1000 Mbps) | |
| Controller | Quantity | 1 Pce, 3 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (Type-A socket) | 1 Pce, - | |
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||

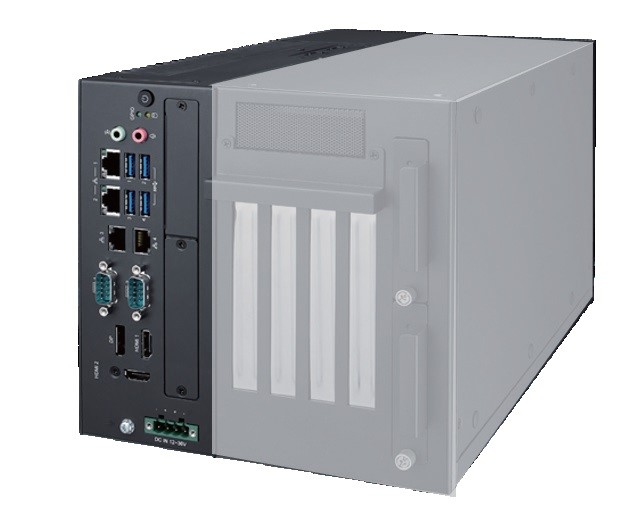

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 2 Pce | ||
| DisplayPort | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce, 4 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| USB 3.2 (Gen 2) | 2 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12~36V | |||
| Connector | 4-pin terminal plug | |||
| Power supply - Input | DC: 12-36V | |||
| Maximum power consumption | 115 W | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 2 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20°C to 50°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Barebone PC | ||
| Width | 195 mm | |||
| Deep | 80 mm | |||
| Height | 240 mm | |||
| IP Rating | IP40 (completely) | |||
| Vibration | Vibration | 2G, 5 to 500 Hz | ||
| with SSD | 10-500 Hz, IEC68-2-6 (3G) | |||
| Shock | Measurement Data | 20G, 11 ms | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 3800 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| DIO | 1 Pce | |||
| Color | Dark grey | |||
| Mounting option | DIN Rail, Wall Mount | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class A | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | BSMI, CB | |||
| RoHS compliant | Yes | |||
