Barebone PC
// Barebone PC
// AMD EPYC 4005/Ryzen 7000/9000
// Passive cooled
// 3 x Display
// 2 x Serial
// 6 x USB (Front page)
// 3 x USB (internal)
// 2 x G-LAN (Front page)
// 1 x Mini-PCIe
// 2 x M.2 Slot
// 12~36V
Sales only to business customers.
Delivery time: upon request

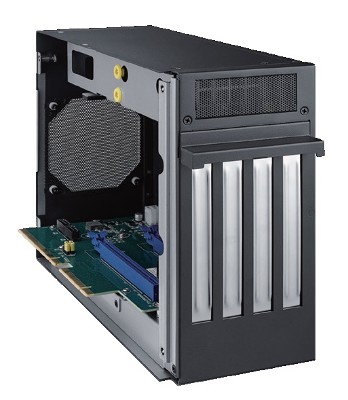

Basic Module: Advantech MIC-785
| General information | ||||
| SKU / Item Number | MIC-785 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Product ID | MIC-785-00A1 | |||
| System | ||||
| Processor | Series | AMD EPYC 4005/Ryzen 7000/9000 | ||
| Socket | LGA 1718 | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | AMD B650 | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5200 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 96 GB | |||
| BIOS | AMI SPI 256 Mbit | |||
| Graphics | ||||
| Processor | AMD Radeon Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| Version | 2.0 | |||
| DisplayPort | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| Version | 1.4 | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen. 5) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen 3), USB 2.0, USB 3.0 | |||
| Supported dimensions | 2242 | |||
| M.2 Key IDs | B, M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210IT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| Ports (Type-A socket) | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| RAID support | RAID 0/1/10 | is supported | ||

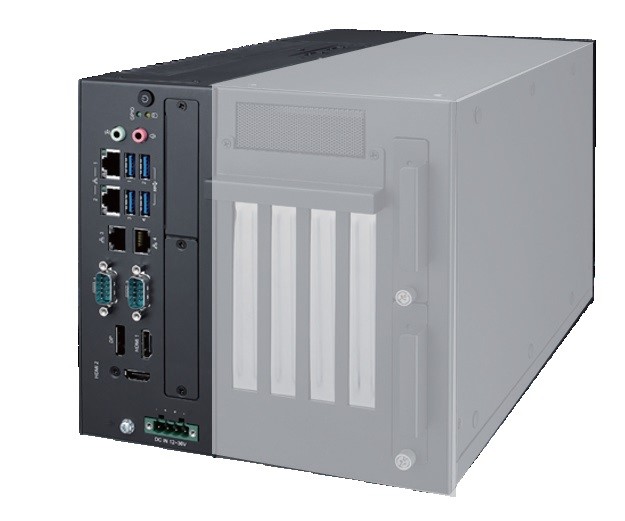

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 2 Pce | ||
| DisplayPort | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 3.2 (Gen 2) | 6 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Available Upon Request | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12~36V | |||
| Connector | 4-pin terminal plug | |||
| Power supply - Input | DC: 12-36V | |||
| Maximum power consumption | 115 W | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 2 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 45°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Barebone PC | ||
| Width | 195 mm | |||
| Deep | 80 mm | |||
| Height | 240 mm | |||
| IP Rating | IP40 (completely) | |||
| Vibration | Vibration | 2G, 5 to 500 Hz | ||
| with SSD | 10-500 Hz, IEC68-2-6 (3G) | |||
| Shock | Measurement Data | 20G, 11 ms | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 3900 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| DIO | 1 Pce | |||
| Color | Dark grey | |||
| Mounting option | DIN Rail, Wall Mount | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Windows, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class A | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | BSMI, CB | |||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
