Barebone PC
// Barebone PC
// Intel Alder Lake / Raptor Lake
// 3 x Display
// 6 x Serial
// 8 x USB (Front page)
// 3 x G-LAN (Front page)
// 3 x M.2 Slot
// 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

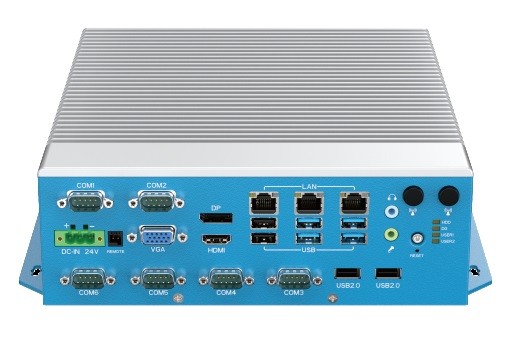

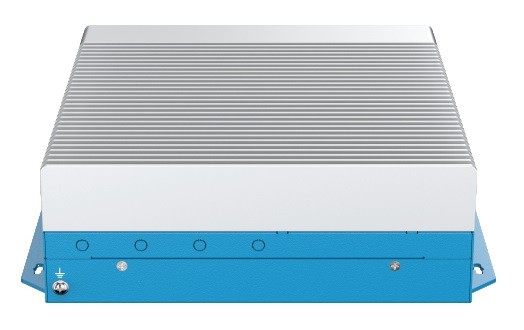

Basic Module: Darveen MIC-9100
| General information | ||||
| SKU / Item Number | MIC-9100 | |||
| Product Basic Data | ||||
| Manufacturer | Darveen | |||
| System | ||||
| Processor | Series | Intel Alder Lake / Raptor Lake | ||
| Socket | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | Intel H610, Intel Q670 | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| BIOS | AMI SPI 128 Mbit | |||
| Graphics | ||||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 1.4A | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 3 | Key ID | E | ||
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 4 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module | |||
| Supported dimensions | 3042 | |||
| M.2 Key IDs | E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | ||
| Quantity | 2 Pce | |||
| Network | 3x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| RAID support | RAID 0/1 | -, is supported | ||
| RAID support | RAID 0/1 | |||
| Externe I/O (Front Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| DisplayPort | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 3 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| RS-422 / 485 | DB-9 | 5 Pce | ||
| USB | USB 2.0 | 2 Pce, 4 Pce | ||
| USB 3.0 | 4 Pce, 6 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Available Upon Request | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 24V | |||
| Connector | 3-pin terminal connector | |||
| Power supply - Input | DC: 24V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -10°C to 50°C | ||
| Storage | -40°C to 80°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | Barebone PC | ||
| Width | 220 mm | |||
| Deep | 256 mm | |||
| Height | 76 mm | |||
| Weight | 4300 g | |||
| Controls | Power | 1 Pce | ||
| Power (terminal connection) | 1 Pce | |||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| System Status | 3 Pce | |||
| Antenna holes | 6 Pce | |||
| Color | Blue / Silver | |||
| Material | Aluminum, Steel | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
