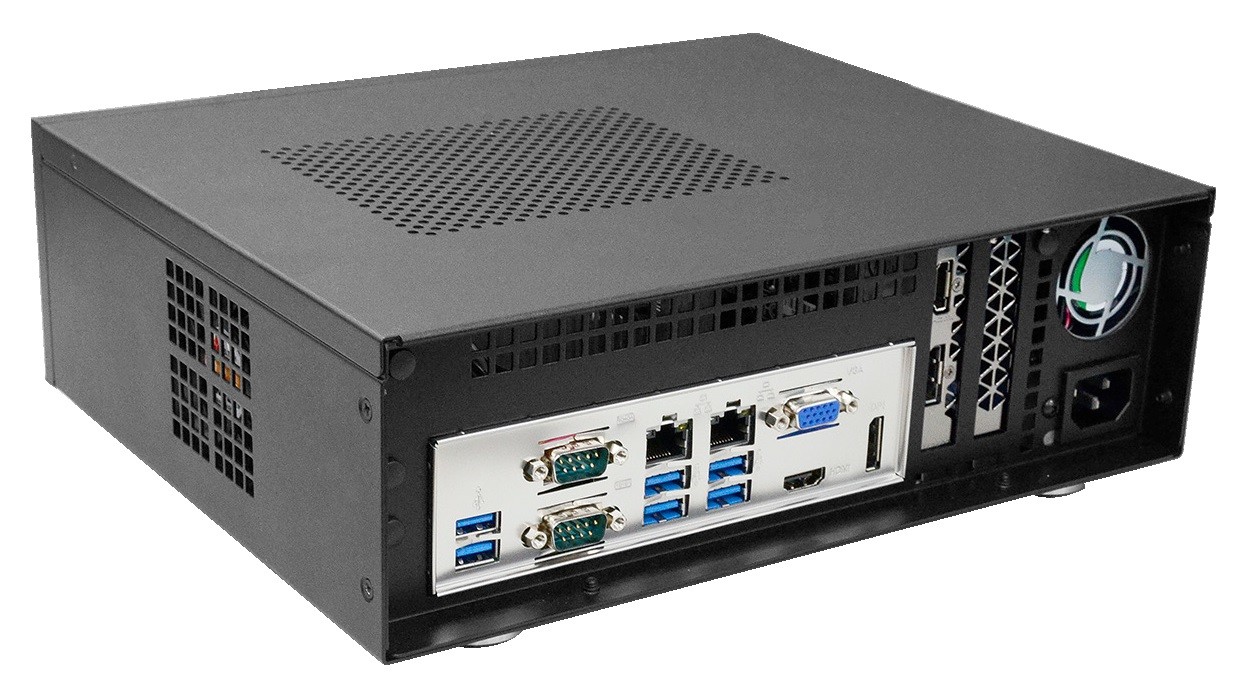

Barebone PC
// Barebone PC
// Intel Alder Lake / Raptor Lake
// Active (fan cooling) cooled
// 3 x Display
// 2 x Serial

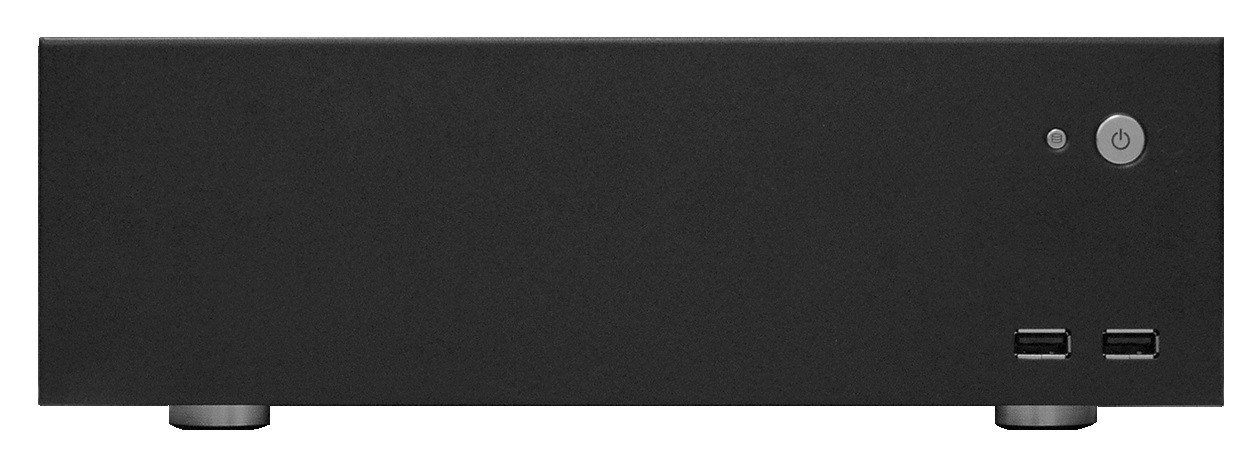

// 2 x USB (Front page)
// 6 x USB (Back side)
// 2 x G-LAN (Back side)
// 1 x PCIe x16
// 3 x M.2 Slot
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: DFI WM140-RPS
| General information | ||||
| SKU / Item Number | WM140-RPS | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Series | Intel Alder Lake / Raptor Lake | ||
| Socket | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | Intel H610E, Intel Q670E, Intel R680E | |||
| Memory | Structure | 288-pin DDR5 DIMM | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| ECC (Error-Correcting Code) | is supported, not supported | |||
| BIOS | AMI SPI 256 Mbit | |||
| Graphics | ||||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 2048 x 1536 at 60 Hz | ||
| HDMI | Maximum resolution | 3840 x 2160 at 24 Hz | ||
| DisplayPort | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| Dual mode | Yes (DP++) | |||
| Extension | ||||
| PCIe x16 | x16 signal | Generation | 5 | |
| Quantity | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4, SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | A | ||
| Supported dimensions | 3060 | |||
| M.2 Key IDs | A, E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps), Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce, 2 Pce | |||
| Controller | Chipset | -, Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce, - | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Externe I/O (Front Panel) | ||||
| USB | USB 2.0 | 2 Pce | ||

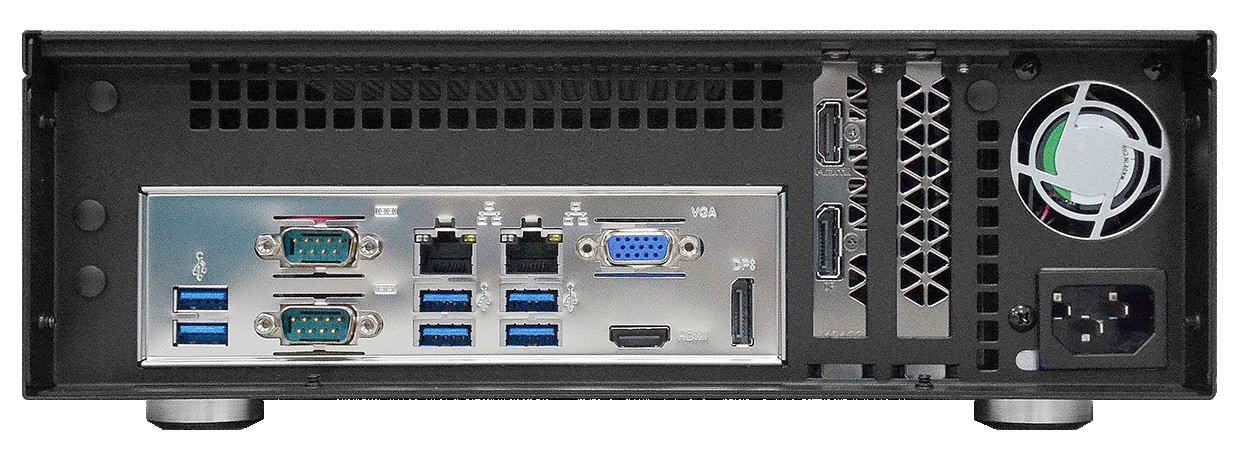

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| DP++ | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| USB | USB 2.0 | 2 Pce, - | ||
| USB 3.2 (Gen 1) | 4 Pce, 6 Pce | |||
| USB 3.2 (Gen 2) | 2 Pce, - | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | AC | Modules | 1 Pce | |
| Connector | C14 | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Active | Fan | Quantity | 1 Pce | |
| Diameter | 80 mm | |||
| filter mat | filter mat | Yes | ||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -5° to 45°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Barebone PC | ||
| Width | 280 mm | |||
| Deep | 229,9 mm | |||
| Height | 87 mm | |||
| Height units | 2 HE | |||
| Vibration | Vibration | 1G, 5 to 500 Hz | ||
| Shock | Measurement Data | 3G, half sine wave, 11 ms duration | ||
| Drop | Reference Standard | ISTA-1A | ||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Slots and Brackets | low profile | 2 Pce | ||
| Antenna holes | 4 Pce | |||
| Color | Black | |||
| Material | Steel | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | is supported | ||
| Supported OS | Windows Embedded | |||
