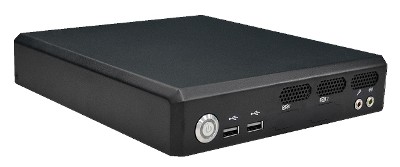

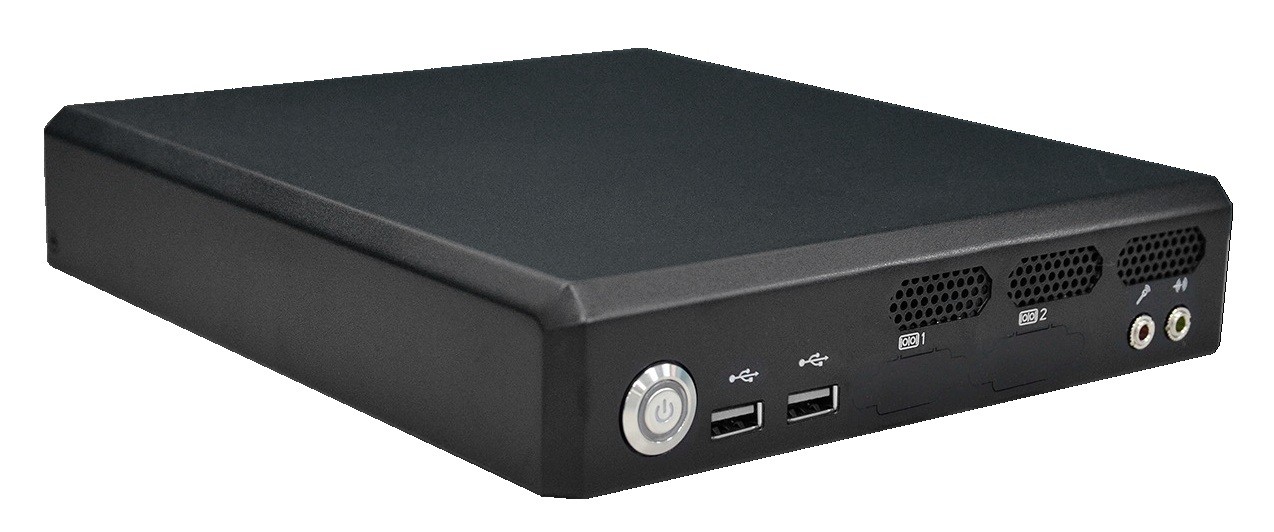

Barebone PC
// Barebone PC
// Intel Alder Lake / Raptor Lake / Raptor Lake Refresh / Bartlett Lake-S
// 1 x Display
// 2 x USB (Front page)
// 6 x USB (Back side)
// 2 x G-LAN (Back side)
// 1 x PCIe x16
// 3 x M.2 Slot
// 19V
Please configure your desired product.
Standard Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: DFI X3-BTS
| General information | ||||
| SKU / Item Number | X3-BTS | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Series | Intel Alder Lake / Raptor Lake / Raptor Lake Refresh / Bartlett Lake-S | ||
| Socket | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | Intel R680E | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 96 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| BIOS | AMI SPI 256 Mbit | |||
| Graphics | ||||
| Screens (Multi-display) | 3 displays | |||
| DisplayPort | Dual mode | Yes (DP++) | ||
| Extension | ||||
| PCIe x16 | x8 signal | Generation | 4 | |
| Quantity | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen 4), SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | PCIe ×4 (Gen. 3), SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 3 | Key ID | M | ||
| Interface | PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 4 | Key ID | E | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 5 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen 3), USB 2.0, USB 3.2 Gen 1 | |||
| Supported dimensions | 2242, 3042, 3052 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | RAID support | RAID 0/1 | is supported | |
| RAID support | RAID 0/1 | |||

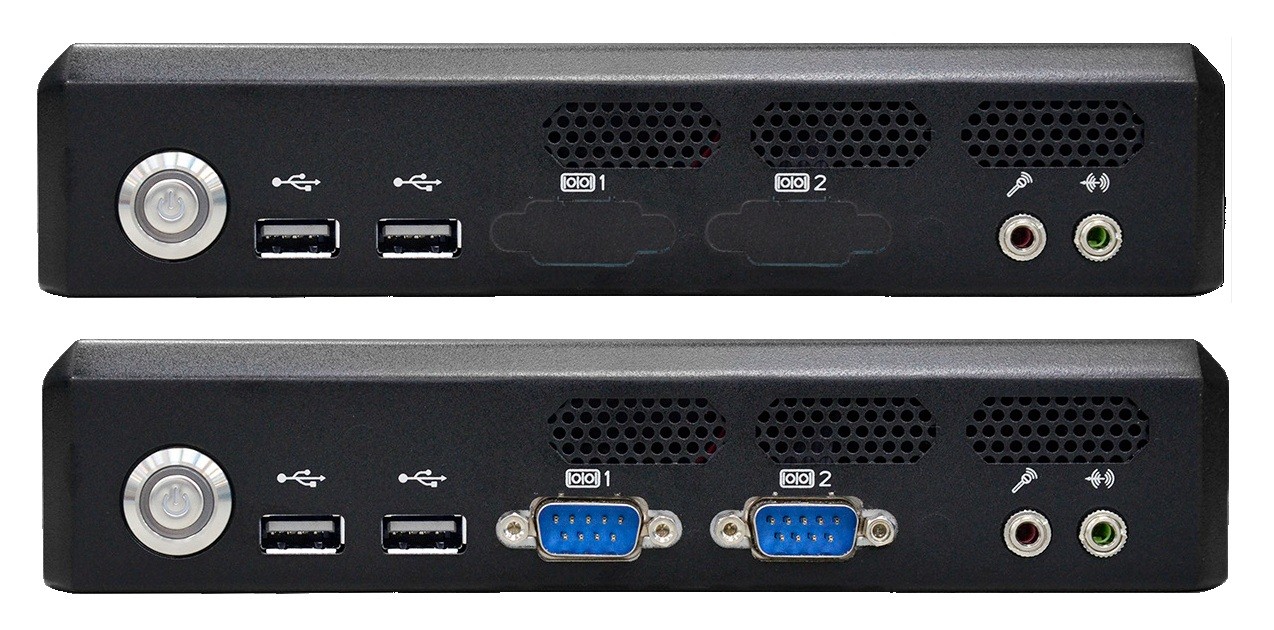

| Externe I/O (Front Panel) | ||||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| USB | USB 2.0 | 2 Pce | ||

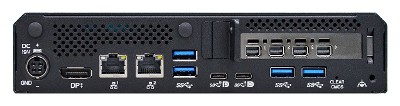

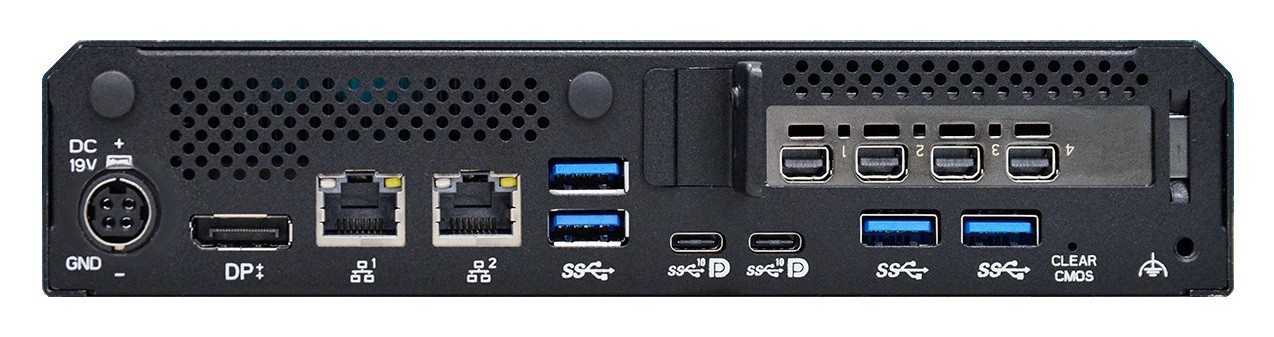

| Externe I/O (Rear Panel) | ||||
| Display | DP++ | 1 Pce | ||
| DP USB-C | 2 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 2) | 4 Pce | ||
| USB v3.2 (Gen 2, Type C) | 2 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | dTPM 2.0 (Hardware) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 19V | |||
| Connector | 4-pin connector (Kycon, Singatron, or similar) | |||
| Power supply - Input | DC: 19V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20°C to 50°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Storage | 5 to 90%, non-condensing | |||
| Dimensions | Form factor | Barebone PC | ||
| Width | 200 mm | |||
| Deep | 219 mm | |||
| Height | 43,2 mm | |||
| Vibration | Vibration | 1G, 5 to 500 Hz | ||
| Shock | Measurement Data | 3G, half sine wave, 11 ms duration | ||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Slots and Brackets | Standard | 1 Pce | ||
| Antenna holes | 2 Pce | |||
| Color | Black | |||
| Material | Steel | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Windows Embedded, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| Additional certificates / compliance approvals | UKCA | |||
| RoHS compliant | Yes | |||
