Digital Signage System
// Digital Signage System
// Qualcomm QCS6490
// Qualcomm QCS6490
// Passive cooled
// 8 GB RAM
// 2 x Display
// 2 x Serial
// 3 x USB (Back side)
// 2 x G-LAN (Back side)
// 3 x M.2 Slot
// 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

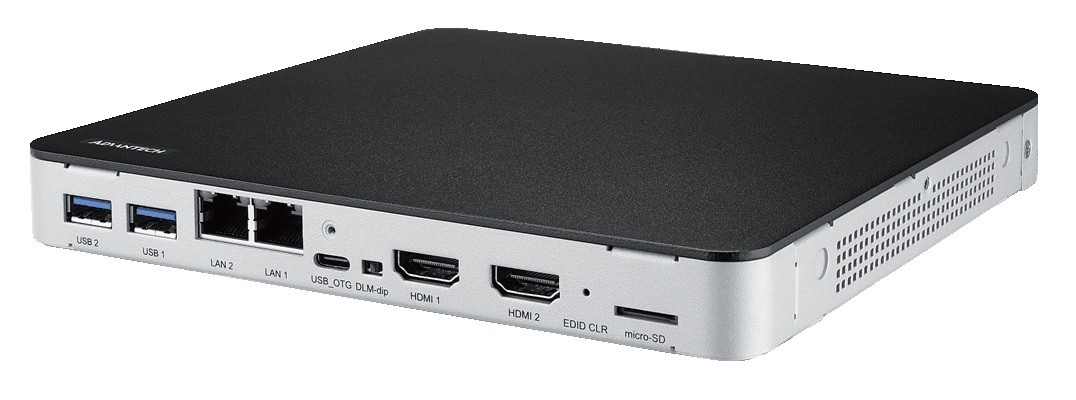

Basic Module: Advantech DS-011
| General information | ||||
| SKU / Item Number | DS-011 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | ARM Cortex-A78 | ||
| Number | Qualcomm QCS6490 | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 2,7 GHz | |||
| Processor 2 | Series | ARM Cortex-A55 | ||
| Number | Qualcomm QCS6490 | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 1,9 GHz | |||
| Memory | Memory Type | DDR5 | ||
| Internal memory | 8 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 128 GB, - | ||
| Universal Flash Storage (UFS) | Memory | 128 GB GB, - | ||
| Graphics | ||||
| Processor | Qualcomm Adreno 643 | |||
| Performance | TOPS (INT8) | 12 | ||
| Screens (Multi-display) | 2 displays | |||
| HDMI | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| Version | 2.1 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE | |||
| Supported dimensions | 3042 | |||
| Slot 3 | Key ID | E | ||
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| Storage | M.2, Micro SD (external) | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8211F (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Front Panel) | ||||
| Audio | Combo Jack | 1 Pce | ||
| Serial | RS-232 | DB-9 | 2 Pce | |
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 2 Pce | ||
| Gigabit Multimedia Serial Link | Protocol | -, GMSL2 | ||
| Quantity | 2 Pce, - | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12 to 24V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Digital Signage System | ||
| Width | 180 mm | |||
| Deep | 177 mm | |||
| Height | 23 mm | |||
| Weight | 900 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Antenna holes | 2 Pce | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows | Windows 11 (ARM64) | -, Wird unterstützt | ||
| Linux | Distribution | Yocto 4.0 | ||
| Supported OS | Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | BSMI, CB, UKCA | |||
| RoHS compliant | Yes | |||
