Digital Signage System
// Digital Signage System
// [Nvidia Jetson ORIN NANO 4G | Nvidia Jetson ORIN NANO 8G | Nvidia Jetson ORIN NX 8G | Nvidia Jetson ORIN NX 16GB]
// Active (fan cooling) cooled
// [4 GB | 8 GB | 16 GB] RAM
// 2 x Serial
// 4 x USB (Front page)2 x G-LAN
// 1 x M.2 Slot
// 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech DS-015
| General information | ||||
| SKU / Item Number | DS-015 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | ARM Cortex-A78AE | ||
| Number | Nvidia Jetson ORIN NANO 4G, Nvidia Jetson ORIN NANO 8G, Nvidia Jetson ORIN NX 8G, Nvidia Jetson ORIN NX 16GB | |||
| CPU cores | 6 Pce, 8 Pce | |||
| Max Turbo Frequency | 2 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| Internal memory | 4 GB, 8 GB, 16 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 128 GB | ||
| Graphics | ||||
| Processor | Nvidia Ampere | |||
| Cores | RT Cores | 512 Pce, 1024 Pce | ||
| Tensor | 32 Pce | |||
| Performance | TOPS (INT8) | 34, 67, 117, 157 | ||
| HDMI | Maximum resolution | 3840 x 2160 at 30 Hz, 3840 x 2160 at 60 Hz | ||
| Version | 1.4 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2, Micro SD (external) | |||
| Network | ||||
| G-LAN | Controller | Quantity | 1 Pce | |
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

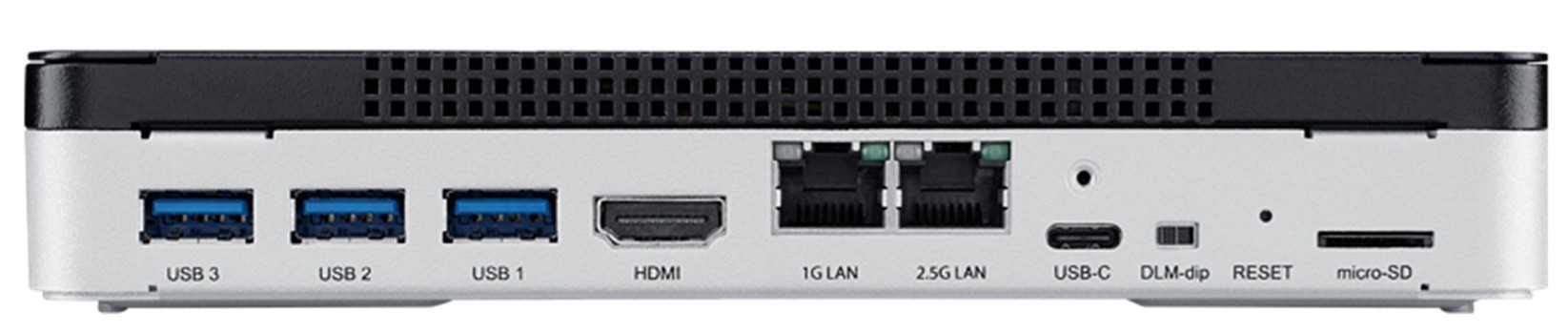

| Externe I/O (Front Panel) | ||||
| USB | USB 3.2 (Gen 1) | 3 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||

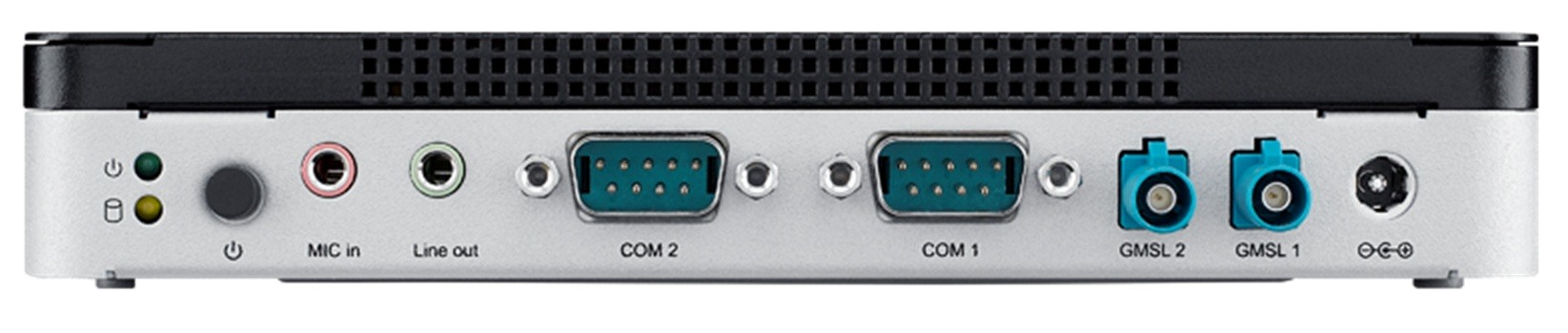

| Externe I/O (Rear Panel) | ||||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Serial | RS-232 | DB-9 | 1 Pce | |
| RS-232 / 422 / 485 | DB-9 | 1 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12 to 24V | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Digital Signage System | ||
| Width | 180 mm | |||
| Deep | 177 mm | |||
| Height | 23 mm | |||
| Weight | 900 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Color | Black / silver | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | BSMI, CB, UKCA | |||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
