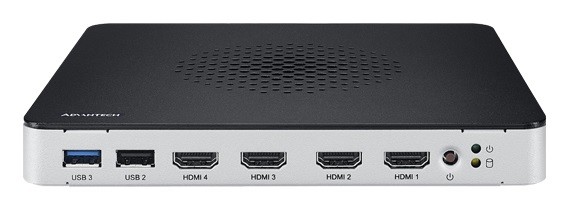

Digital Signage System
// Digital Signage System
// [AMD Ryzen Embedded 8640U | AMD Ryzen Embedded 8840U]
// [3,3 | 3,5] GHz
// Active (fan cooling) cooled
// 4 x Display
// 1 x Serial
// 2 x USB (Front page)
// 1 x USB (Back side)
// 2 x G-LAN (Back side)
// 3 x M.2 Slot
// 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech DS-054
| General information | ||||
| SKU / Item Number | DS-054 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | AMD Ryzen Embedded 8000 Series | |||
| Number | AMD Ryzen Embedded 8640U, AMD Ryzen Embedded 8840U | |||
| CPU cores | 6 Pce, 8 Pce | |||
| Threads | 12 Pce, 16 Pce | |||
| Base frequency | 3,3 GHz, 3,5 GHz | |||
| Max Turbo Frequency | 4,9 GHz, 5,1 GHz | |||
| Cache | 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 28 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 96 GB | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Graphics | ||||
| Processor | AMD Radeon 760M, AMD Radeon 780M | |||
| Screens (Multi-display) | 4 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.1 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | Wi-Fi | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | E | ||
| Interface | OOB (Out Of Box) | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | M | ||
| Interface | PCIe ×4 (Gen. 3) | |||
| Supported dimensions | 2280 | |||
| Slot 4 | Key ID | M | ||
| Interface | PCIe ×4 | |||
| Supported dimensions | 2242 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210 PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

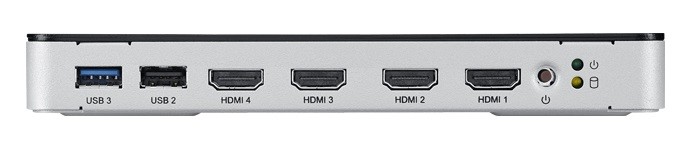

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 4 Pce | ||
| USB | USB 2.0 | 1 Pce | ||
| USB 3.2 (Gen 1) | 1 Pce | |||
| Externe I/O (Rear Panel) | ||||
| Audio | Combo Jack | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| USB | USB v3.0 (Type C) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | fTPM 2.0 (Firmware Simulation) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12 to 24V | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 40°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Digital Signage System | ||
| Width | 180 mm | |||
| Deep | 177 mm | |||
| Height | 29,9 mm | |||
| Weight | 900 g | |||
| Controls | Power | 1 Pce | ||
| Power (terminal connection) | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Antenna holes | 2 Pce | |||
| Color | Black / silver | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | BSMI, CB, UKCA | |||
| RoHS compliant | Yes | |||
