Digital Signage System
// Digital Signage System
// [Intel Core i3 Processor N355 | Intel N150]
// Passive cooled
// 8 GB RAM
// 1 x Display
// 1 x Serial
// 2 x USB (Front page)
// 1 x G-LAN (Front page)
// 2 x M.2 Slot
// 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

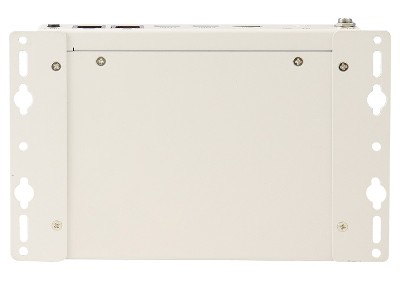

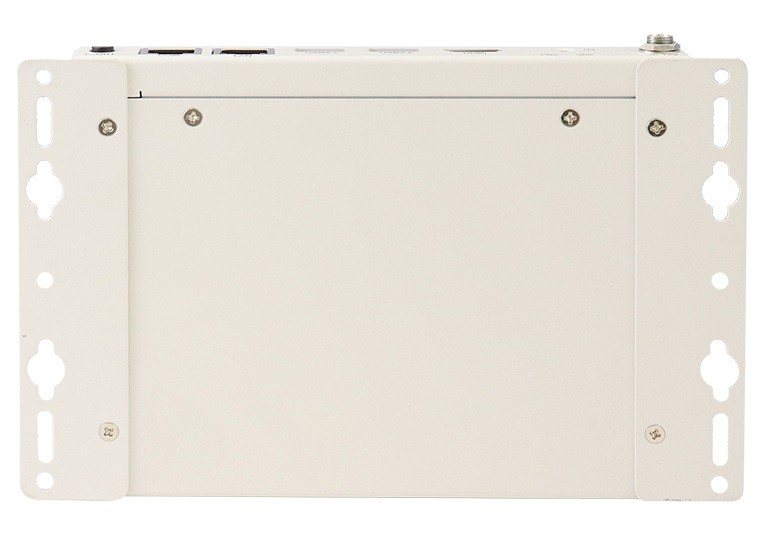

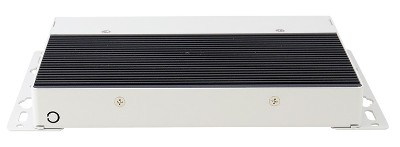

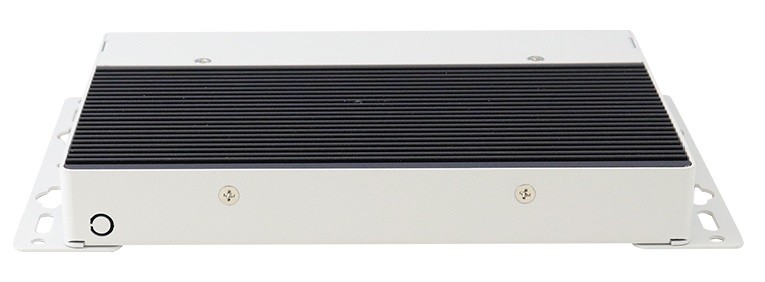

Basic Module: IBASE SI-121-N
| General information | ||||
| SKU / Item Number | SI-121-N | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | Intel Twin Lake | ||
| Number | Intel Core i3 Processor N355, Intel N150 | |||
| CPU cores | 4 Pce, 8 Pce | |||
| Threads | 4 Pce, 8 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,6 GHz, 3,9 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W, 15 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 32 GB | |||
| Internal memory | 8 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 256 GB | ||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| HDMI | Version | 2.0b | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×1 (Gen 3), SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module | |||
| Supported dimensions | 3052 | |||
| M.2 Key IDs | B, M | |||

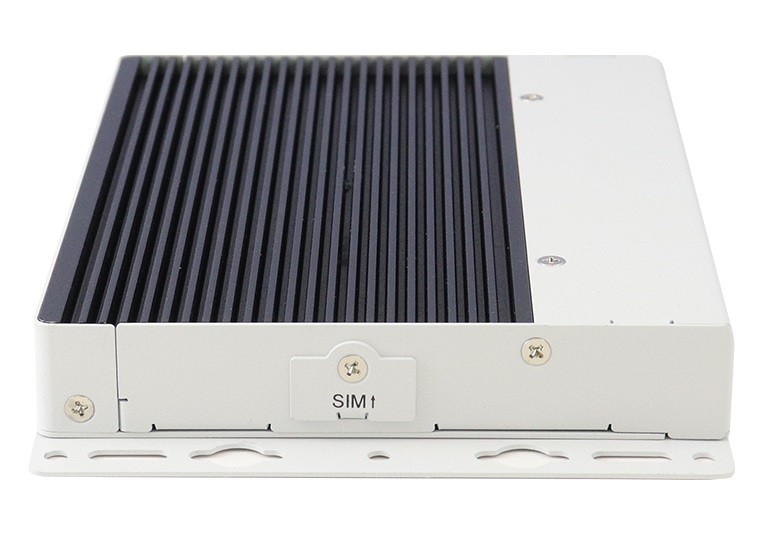

| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210IT PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||

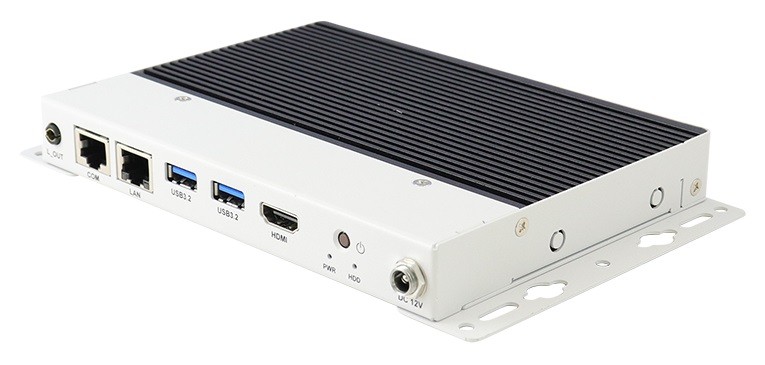

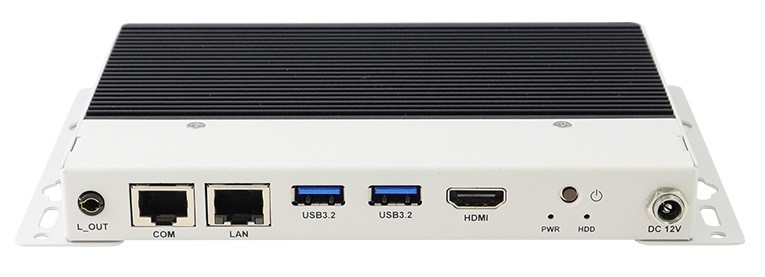

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce, - | ||
| RJ-45 with OOB | 1 Pce, - | |||
| Serial | RS-232 | RJ-45 | 1 Pce | |
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | -, v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 45°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | Digital Signage System | ||
| Width | 170 mm | |||
| Deep | 123 mm | |||
| Height | 22,5 mm | |||
| Vibration | with SSD | 5~500 Hz, 1G | ||
| Weight | 1000 g | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||

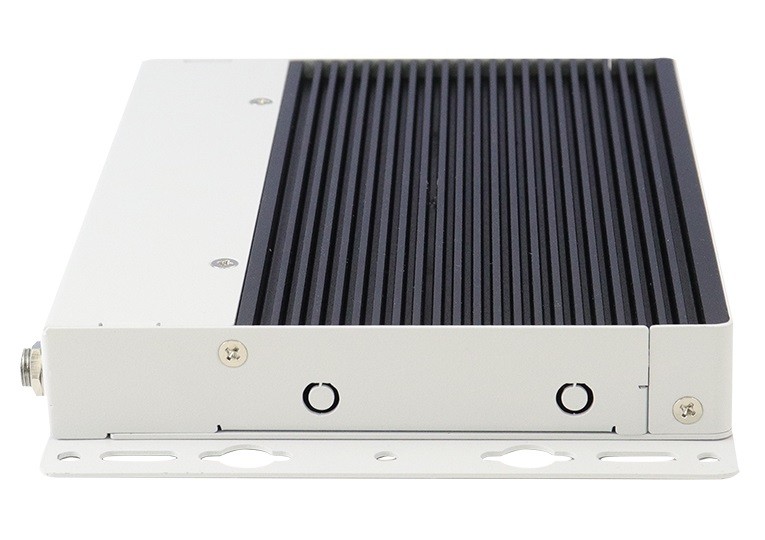

| Antenna holes | 3 Pce | |||
| Color | Black / White | |||
| Material | Aluminum, Steel | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
