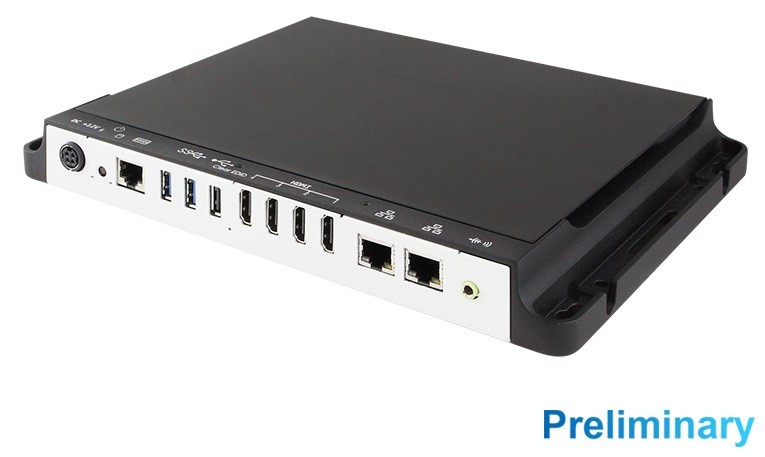

Digital Signage System
// Digital Signage System
// AMD Ryzen Embedded 8000 Series
// Passive cooled
// 4 x Display
// 1 x Serial
// 3 x USB (Front page)
// 2 x G-LAN (Front page)
// 3 x M.2 Slot
// 12V
Sales only to business customers.
Delivery time: upon request
Basic Module: IBASE SI-344
| General information | ||||
| SKU / Item Number | SI-344 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | AMD Ryzen Embedded 8000 Series | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 256 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| Graphics | ||||
| HDMI | Version | 2.1 | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module | |||
| Supported dimensions | 3052 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Quantity | 2 Pce | |
| Network | 2x G-LAN | |||

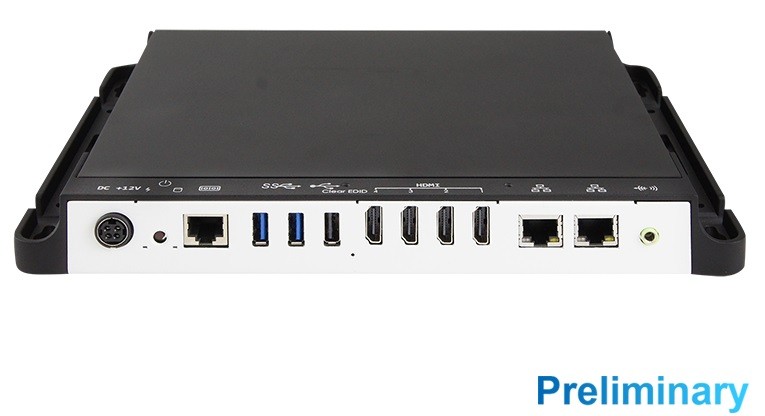

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 4 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| RJ-45 with OOB | 1 Pce | |||
| Serial | RS-232 | RJ-45 | 1 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 2) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 4-pin connector (Kycon, Singatron, or similar) | |||
| Power supply - Input | DC: 12V | |||
| iSMART | v4.0 | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 45°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | Digital Signage System | ||
| Vibration | Vibration | 5G, 5 to 500 Hz | ||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Color | Black / White | |||
| Material | Aluminum, Steel | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Windows Embedded, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | cULus 60601-1, UKCA | |||
| RoHS compliant | Yes | |||
