Edge AI System
// Edge AI System
// [Nvidia Jetson ORIN NANO 8G | Nvidia Jetson ORIN NX 8G | Nvidia Jetson ORIN NX 16GB]
// [Active (fan cooling) | Passive] cooled
// [8 GB | 16 GB] RAM
// 1 x Display
// 2 x Serial
// 5 x USB (Front page)
// 2 x G-LAN (Front page)
// 3 x M.2 Slot
// 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

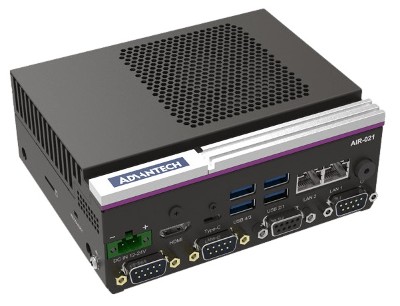

Basic Module: Advantech AIR-021
| General information | ||||
| SKU / Item Number | AIR-021 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | ARM Cortex-A78AE | ||
| Number | Nvidia Jetson ORIN NANO 8G, Nvidia Jetson ORIN NX 8G, Nvidia Jetson ORIN NX 16GB | |||
| CPU cores | 6 Pce, 8 Pce | |||
| Max Turbo Frequency | 1,5 GHz, 2 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR5 | ||
| Internal memory | 8 GB, 16 GB | |||
| Storage | Solid State Drive (NVMe SSD) | 128 GB | ||
| Graphics | ||||
| Processor | Nvidia Ampere | |||
| Cores | CUDA | 1024 Pce | ||
| Tensor | 32 Pce | |||
| Performance | TOPS (INT8) | 67, 117, 157 | ||
| HDMI | Maximum resolution | 3840 x 2160 at 30 Hz, 3840 x 2160 at 60 Hz | ||
| Version | 2.1 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, 5G / Storage Module, USB 3.2 Gen 2 | |||
| Supported dimensions | 3052 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0, WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| Slot 4 | Key ID | M | ||
| Interface | NVMe | |||
| Supported dimensions | 2242 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||

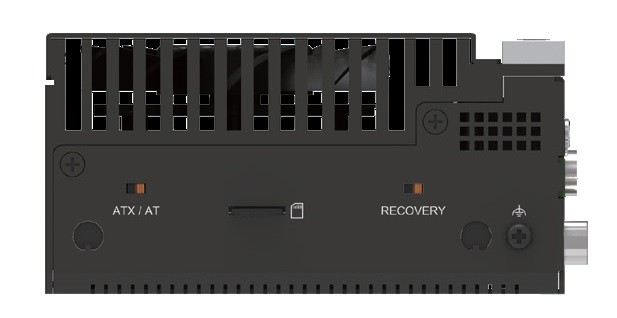

| Storage | M.2, Micro SD (external) | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8111B (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||

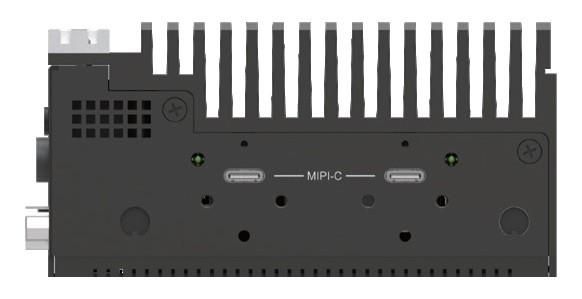

| Image Capture Interfaces | Camera Input 1 | Connector | USB-C (MIPI-CSI) | |
| Quantity | 2 Pce | |||

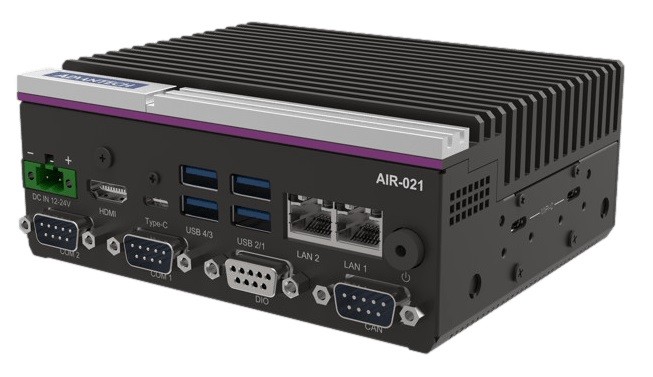

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 8-bit | |||
| Connector | DB-9 | |||
| USB | USB 3.2 (Gen 2) | 4 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| CAN bus | Connector | DB-9 | ||
| piece | 1 Pce | |||
| Baud rate | 1000 Kbps | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 12 to 24V | |||
| Cooling | ||||
| Implementation | Active (fan cooling), Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -10°C to 50°C, -20°C to 50°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Edge AI System | ||
| Width | 138 mm | |||
| Deep | 110 mm | |||
| Height | 57 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Weight | 1200 g | |||
| Antenna holes | 4 Pce | |||
| Color | Black | |||
| Mounting option | DIN Rail, Wall Mount | |||
| OS / Software | ||||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | BSMI, CB | |||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
