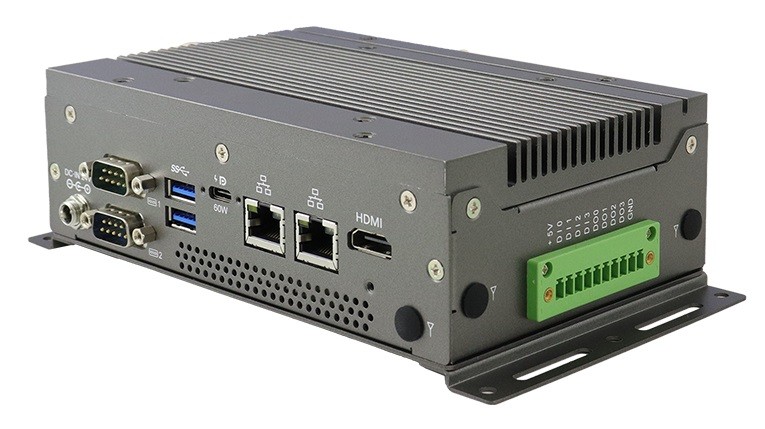

Edge AI System
// Edge AI System
// [Intel Core i3-N355 | Intel N97 | Intel N150]
// Passive cooled
// 8 GB RAM
// 1 x Display
// 2 x Serial
// 4 x USB (Front page)
// 3 x USB (Back side)
// 2 x G-LAN (Back side)
// 3 x M.2 Slot
// 19 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: IBASE ACS100
| General information | ||||
| SKU / Item Number | ACS100 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Alder Lake | |||
| Number | Intel Core i3-N355, Intel N97, Intel N150 | |||
| CPU cores | 4 Pce, 8 Pce | |||
| Threads | 4 Pce, 8 Pce, - | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,6 GHz, 3,9 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W, 12 W, 15 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| Internal memory | 8 GB | |||
| Storage | Solid State Drive (SSD) | 128 GB | ||
| Power supply - Input | Solid State Drive (SSD) 128 GB | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, 5G / Storage Module | |||
| Supported dimensions | 3052 | |||
| Slot 2 | Key ID | E | ||
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe, SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | B, E, M | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

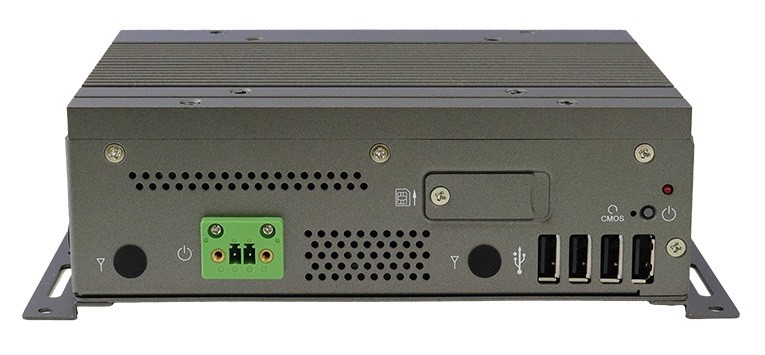

| Externe I/O (Front Panel) | ||||
| USB | USB 2.0 | 4 Pce | ||
| SIM card slot | 1 Pce | |||

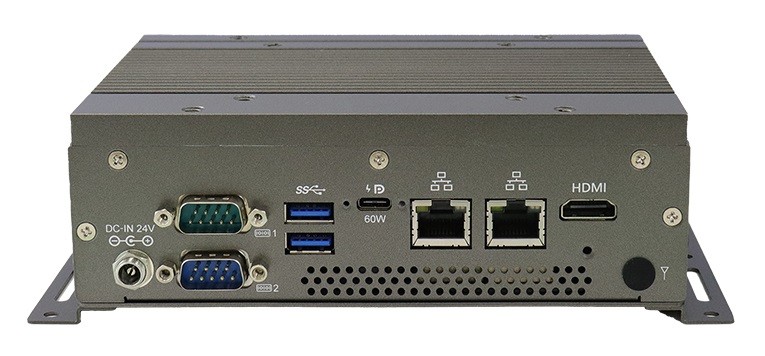

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP USB-C | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| RS-232 / 422 / 485 | DB-9 | 1 Pce | ||
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||
| External I/O (sidewise) | ||||
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 8-bit | |||
| Connector | 10-pin terminal connector | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 19 to 24V | |||
| Connector | Male connector (screw-in) | |||
| DC | Range | 5V / 9V / 12V / 15V / 20V | ||
| Connector | USB Type-C | |||
| Power supply - Input | DC: 19~24V,5V / 9V / 12V / 15V / 20V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° down to 70°C, -20° to 45°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | Edge AI System | ||
| Width | 167 mm | |||
| Deep | 110 mm | |||
| Height | 54,15 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Shock | Measurement Data | 20G, 11 ms | ||
| Weight | 1250 g | |||
| Controls | Power | 1 Pce | ||
| Power (terminal connection) | 1 Pce | |||
| Reset | 1 Pce | |||
| Status indicators | Power | 1 Pce | ||
| Antenna holes | 5 Pce | |||
| Color | Dark grey | |||
| Material | Aluminum, Steel | |||
| Mounting option | DIN Rail, VESA, Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | LVD (Low Voltage Directive) | |||
| RoHS compliant | Yes | |||
