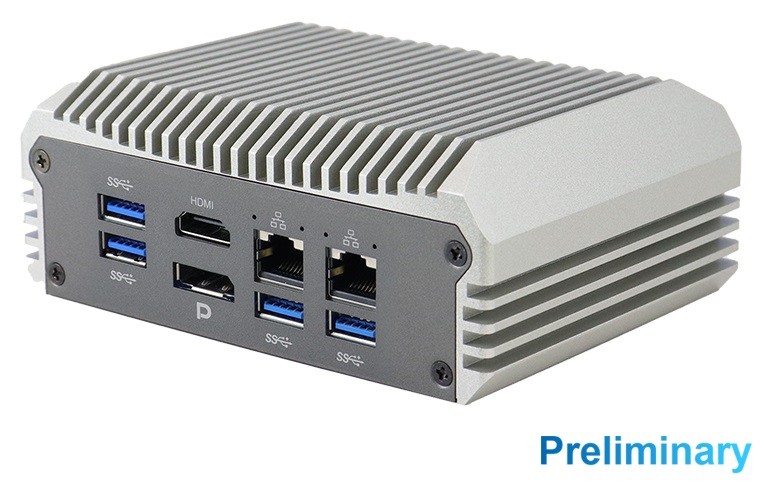

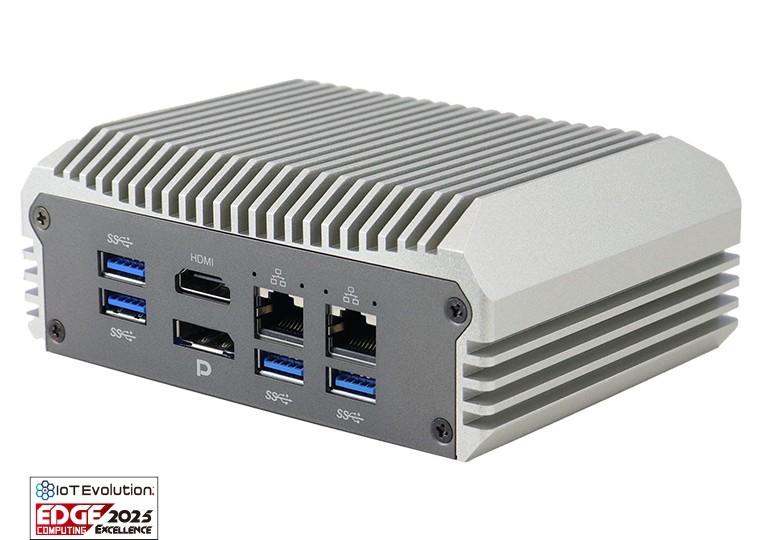

Edge AI System
// Edge AI System
// Intel Atom X7433RE
// Passive cooled
// 2 x Display
// 2 x Serial
// 4 x USB (Front page)
// 2 x G-LAN (Front page)
// 2 x M.2 Slot
// 12V
Sales only to business customers.
Delivery time: upon request
Basic Module: IBASE ASB100-PI800
| General information | ||||
| SKU / Item Number | ASB100-PI800 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Amston Lake | |||
| Number | Intel Atom X7433RE | |||
| CPU cores | 4 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,4 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 9 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | PCIe ×1 (Gen 3), SATA III | |||
| Supported dimensions | 2242 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||

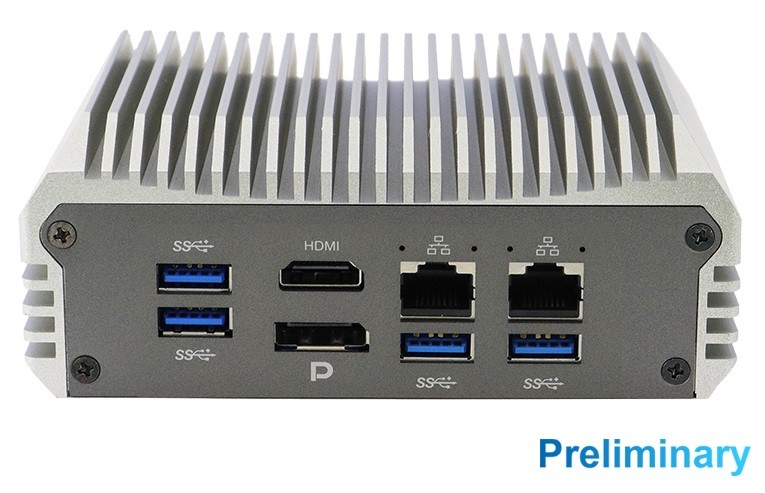

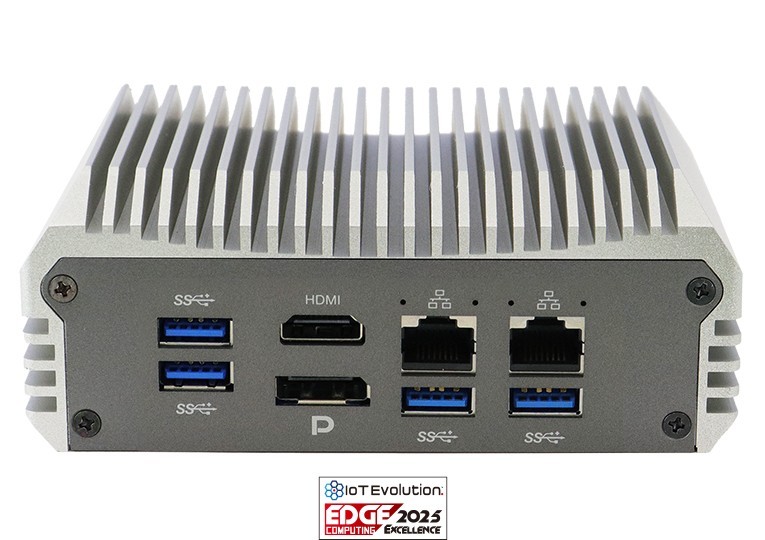

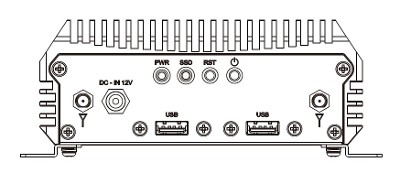

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 1) | 4 Pce | ||

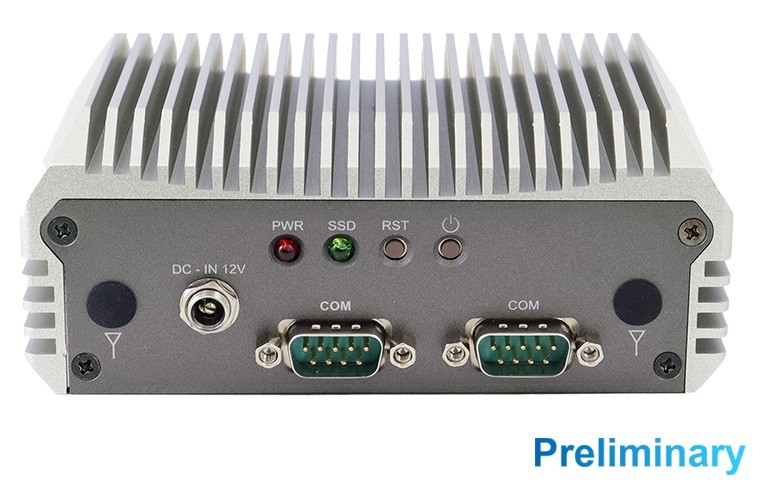

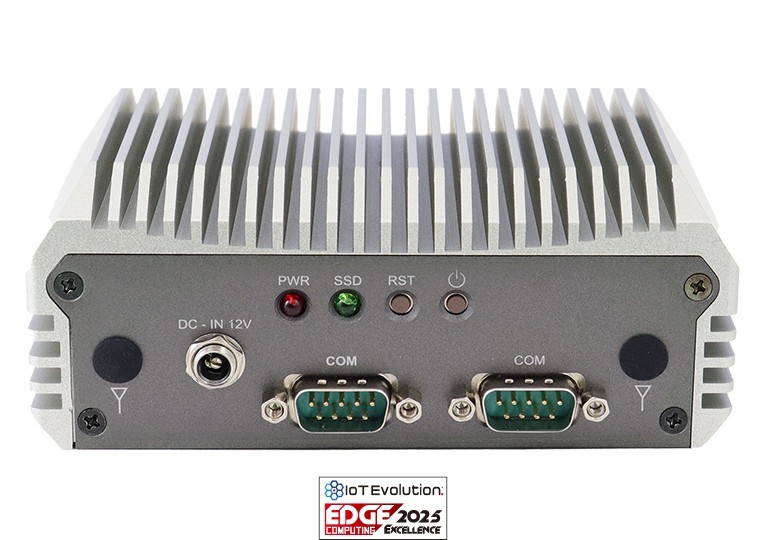

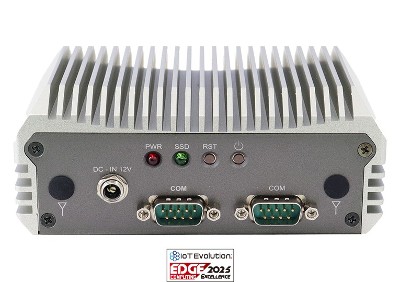

| Externe I/O (Rear Panel) | ||||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20°C to 50°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | Edge AI System | ||
| Width | 133 mm | |||
| Deep | 102,2 mm | |||
| Height | 51,5 mm | |||
| Vibration | with SSD | 5~500 Hz, 1G | ||
| Shock | Measurement Data | 20G, 11 ms | ||
| Weight | 1000 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Antenna holes | 2 Pce | |||
| Color | Silver | |||
| Material | Aluminum, Steel | |||
| Mounting option | Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | LVD (Low Voltage Directive) | |||
| RoHS compliant | Yes | |||
