Edge AI System
// Edge AI System
// Intel Alder Lake / Raptor Lake
// 2 x Display
// [2 | 4] x Serial
// 6 x USB (Front page)
// 3 x G-LAN (Front page)
// 1 x PCIe x4
// 1 x PCIe x16
// 2 x M.2 Slot
// 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: IBASE MAF801
| General information | ||||
| SKU / Item Number | MAF801 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | Intel Alder Lake / Raptor Lake | ||
| Socket | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipset | Intel R680E | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 64 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| Extension | ||||
| PCIe x4 | x4 signal | 1 Pce | ||
| PCIe x16 | x16 signal | Quantity | 1 Pce | |
| PCIe Interfaces | 1x PCIe x4, 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | B + M | |
| Interface | NVMe, SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | B + M | ||
| Interface | NVMe, SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | B + M | |||
| Storage | M.2 | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||

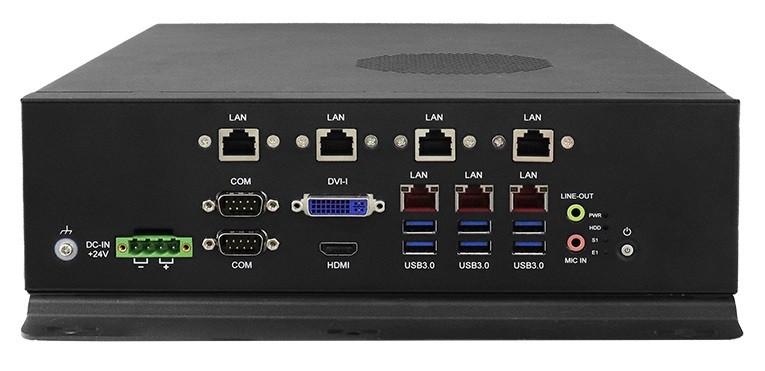

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DVI | DVI-I Signal | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 3 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 3.2 (Gen 1) | 6 Pce | ||

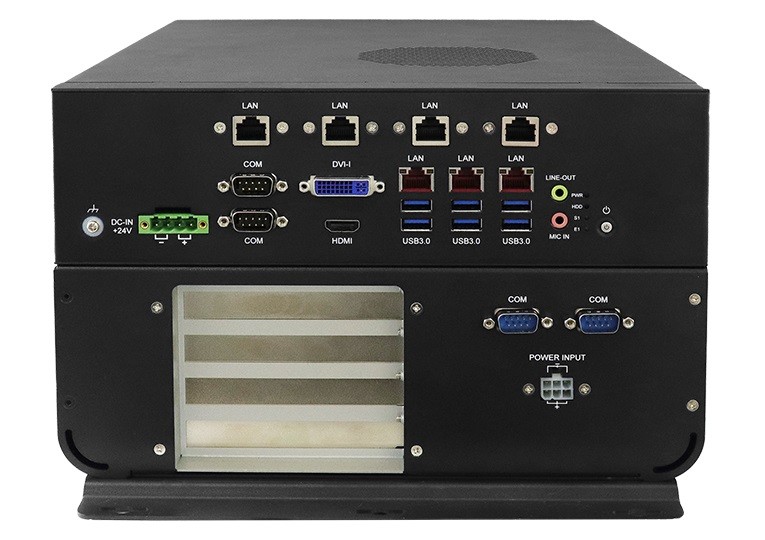

| Externe I/O (Rear Panel) | ||||
| Serial | RS-232 | DB-9 | 2 Pce, - | |
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 24V | |||
| Connector | 4-pin terminal plug | |||
| DC | Wide Range | -, No | ||
| Range | 12V, - | |||
| Connector | 6-pin PCIe ATX power connector, - | |||
| Power supply - Input | DC: 24V | |||
| Inserts | ||||
| external | 2.5" installation slot | 2 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -10°C to 50°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | Edge AI System | ||
| Width | 284 mm | |||
| Deep | 362 mm | |||
| Height | 80 mm, 178 mm | |||
| Vibration | Vibration | 1G, 5 to 500 Hz | ||
| with HDD | 0.25G, 5~300Hz, 3 axes | |||
| Shock | Measurement Data | 20G, 11 ms | ||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| System Status | 2 Pce | |||
| Slots and Brackets | Standard | 4 Pce, - | ||
| Color | Black | |||
| Material | Aluminum, Steel | |||
| OS / Software | ||||
| Windows | Windows 11 | Supported | ||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux, Windows | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
