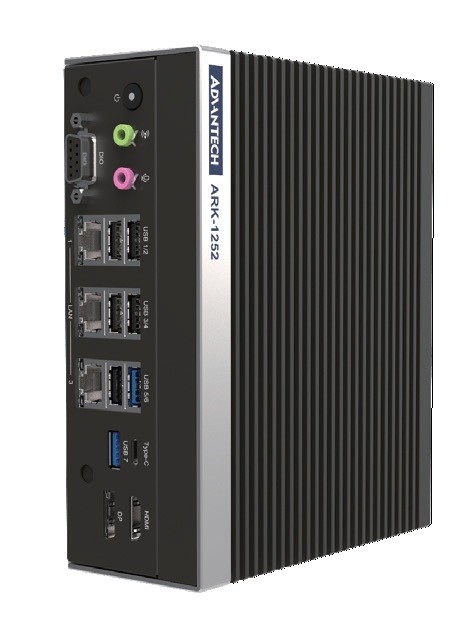

Embedded System
// Embedded System
// [Intel Core 3 Prozessor 304 | Intel Core 3 Prozessor 305]
// 2 x Display
// 4 x Serial
// 7 x USB (Front page)
// 3 x G-LAN (Front page)
// 3 x M.2 Slot
// 12 to 28V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech ARK-1252
| General information | ||||
| SKU / Item Number | ARK-1252 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | Intel Wildcat Lake | ||
| Number | Intel Core 3 Prozessor 304, Intel Core 3 Prozessor 305 | |||
| CPU cores | 5 Pce, 6 Pce | |||
| Threads | 5 Pce, 6 Pce | |||
| Socket | BGA 1516 | |||
| Performance core base clock frequency | 1,5 GHz | |||
| Performance Core Max Turbo Frequency | 4,3 GHz, 4,6 GHz | |||
| Efficient-core base clock frequency | 1,4 GHz | |||
| Efficient-core Max Turbo Frequency | 3,3 GHz, 3,4 GHz | |||
| Cache | 6 MB | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 35 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM/CSO-DIMM | |||
| DIMM data transfer rate | 6400 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 64 GB | |||
| BIOS | AMI UEFI 512 Mbit SPI | |||
| Graphics | ||||
| Processor | Intel Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.1 | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 1.4A | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, 5G / Storage Module | |||
| Supported dimensions | 3042, 3052 | |||
| Slot 2 | Key ID | E | ||
| Interface | OOB (Out Of Box), PCIe ×1 (Gen 4), USB 2.0, Wi-Fi | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe, PCIe ×2 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Controller | Chipset | Intel I210IT PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 3x G-LAN | |||

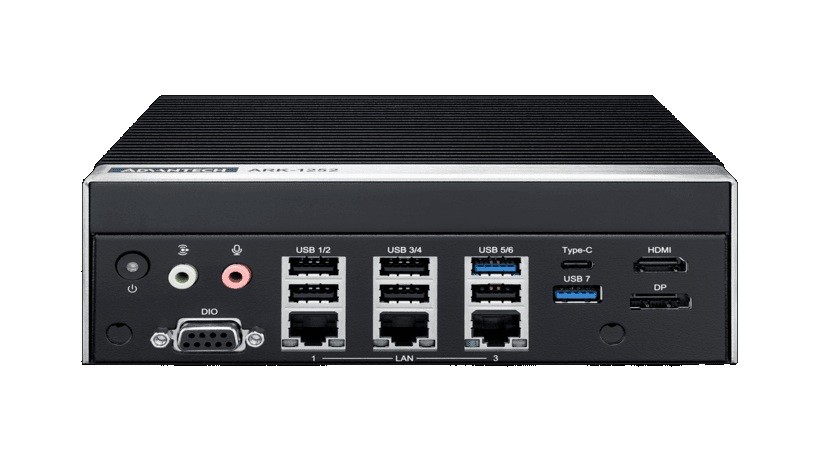

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| DP USB-C | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 3 Pce | ||
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 8-bit | |||
| Connector | DB-9 | |||
| USB | USB 2.0 | 5 Pce | ||
| USB 3.2 (Gen 1) | 2 Pce | |||
| USB v3.2 (Gen 1, Type C) | 1 Pce | |||

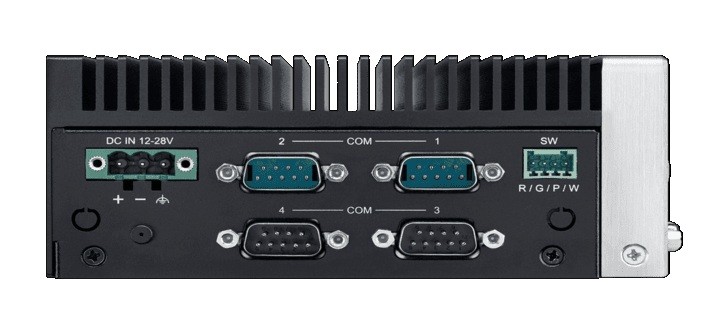

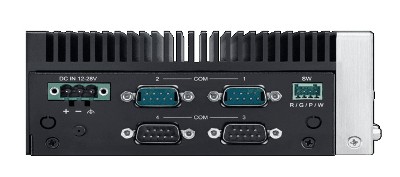

| External I/O (sidewise) | ||||
| Serial | RS-232 | DB-9 | 2 Pce | |
| RS-232 / 422 / 485 | DB-9 | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 28V | |||
| Connector | 3-pin terminal connector | |||
| Power supply - Input | DC: 12–28V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Embedded System | ||
| Width | 173 mm | |||
| Deep | 60 mm | |||
| Height | 141 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 30G, 18 ms | ||
| Reference Standard | IEC 68-2-27 | |||
| Weight | 1500 g | |||
| Controls | Power | 1 Pce | ||
| Remote | 1 Pce | |||
| Status indicators | Power | 1 Pce | ||
| Antenna holes | 6 Pce | |||
| Color | Black | |||
| Material | Aluminum | |||
| Mounting option | DIN Rail | |||
| Accessoires | made in China, made in Taiwan | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Ubuntu 24.04 | ||
| Supported OS | Linux, Windows Embedded | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | BSMI, CB, UKCA | |||
| RoHS compliant | Yes | |||
