Embedded System
// Embedded System
// [AMD Ryzen Embedded 8640U | AMD Ryzen Embedded 8845HS]
// [3,5 | 3,8] GHz
// Passive cooled
// 2 x Display
// 6 x Serial
// 8 x USB (Front page)
// 4 x G-LAN (Front page)
// 2 x M.2 Slot
// 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request
Basic Module: Advantech ARK-3535
| General information | ||||
| SKU / Item Number | ARK-3535 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | AMD Ryzen Embedded 8000 Series | |||
| Number | AMD Ryzen Embedded 8640U, AMD Ryzen Embedded 8845HS | |||
| CPU cores | 6 Pce, 8 Pce | |||
| Threads | 12 Pce, 16 Pce | |||
| Base frequency | 3,5 GHz, 3,8 GHz | |||
| Max Turbo Frequency | 4,9 GHz, 5,1 GHz | |||
| Cache | 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 28 W, 45 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 96 GB | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Graphics | ||||
| Processor | AMD Radeon 760M, AMD Radeon 780M | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| DisplayPort | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×2 (Gen 4), USB 3.2 Gen 2 | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×2 (Gen 4), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 3 Pce | |||
| Controller | Chipset | Intel I210IT PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 4x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||

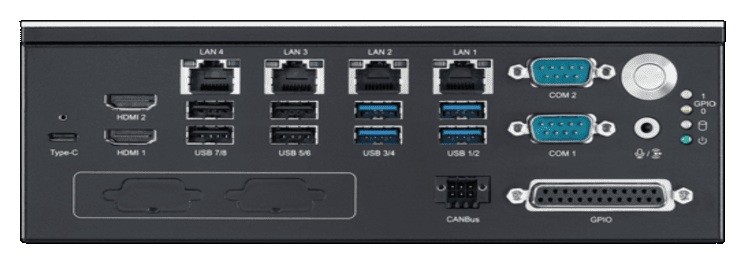

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 2 Pce | ||
| DP USB-C | 1 Pce | |||
| Audio | Combo Jack | 1 Pce | ||
| Ethernet | RJ-45 | 3 Pce | ||
| RJ-45 with OOB | 1 Pce | |||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 16-bit | |||
| Connector | 25-pin terminal connector | |||
| USB | USB 2.0 | 4 Pce | ||
| USB 3.2 (Gen 2) | 4 Pce | |||
| USB v4.0 Type C | Power Delivery | 15 W | ||
| Data transfer modes | DisplayPort v.1.4 | |||
| CAN bus | Connector | 2 x 3-pin connectors | ||
| piece | 2 Pce | |||

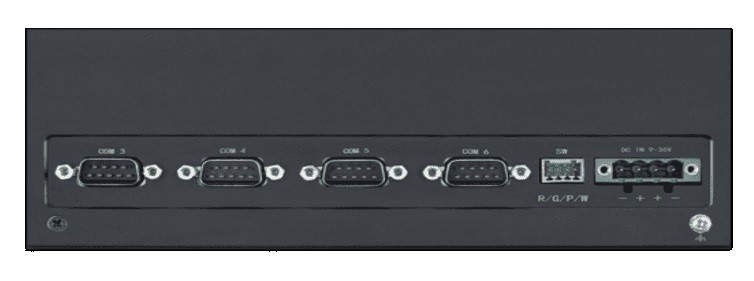

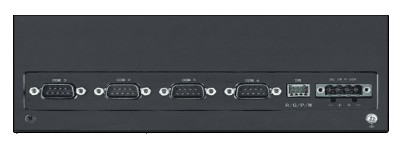

| Externe I/O (Rear Panel) | ||||
| Serial | RS-422 / 485 | DB-9 | 4 Pce | |
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Nuvoton NPCT764AABYX | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 4-pin terminal plug | |||
| Power supply - Input | DC: 9~36V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 2 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 50°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | Embedded System | ||
| Width | 200 mm | |||
| Deep | 215 mm | |||
| Height | 75 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 30G, 18 ms | ||
| Reference Standard | IEC 68-2-27 | |||
| Controls | Power | 1 Pce | ||
| Power (terminal connection) | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| DIO | 2 Pce | |||
| Antenna holes | 6 Pce | |||
| Color | Black | |||
| Material | Aluminum, Steel | |||
| Mounting option | Wall Mount | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Ubuntu 24.04 | ||
| Supported OS | Linux, Windows | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | CB, UKCA | |||
| RoHS compliant | Yes | |||
