Embedded System
// Embedded System
// [Intel Core i3-N305 | Intel N97]
// Active (fan cooling) cooled
// 1 x Display
// [2 | 6] x Serial
// [6 | 7] x USB (Front page)
// 2 x G-LAN (Front page)
// 2 x M.2 Slot
// 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

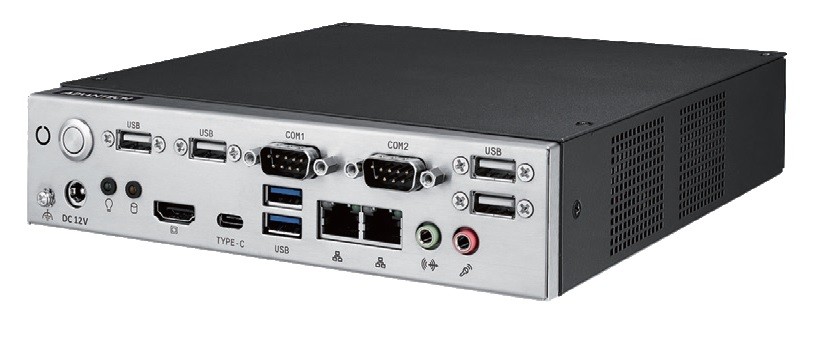

Basic Module: Advantech EPC-T4219
| General information | ||||
| SKU / Item Number | EPC-T4219 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Alder Lake | |||
| Number | Intel Core i3-N305, Intel N97 | |||
| CPU cores | 4 Pce, 8 Pce | |||
| Threads | 8 Pce, - | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,6 GHz, 3,8 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 12 W, 15 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 3200 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| ECC (Error-Correcting Code) | not supported | |||
| BIOS | AMI SPI 256 Mbit | |||
| Graphics | ||||
| HDMI | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 1.4A | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, PCIe ×1 (Gen 3) | |||
| Supported dimensions | 2242, 2280 | |||
| M.2 Key IDs | B, E | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8111K-CG (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||

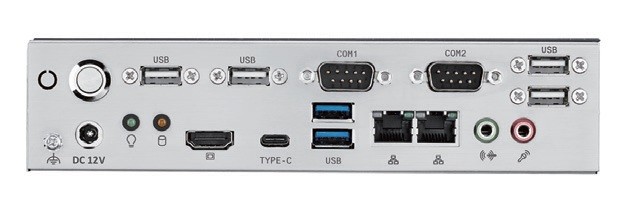

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP USB-C | 1 Pce, - | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| USB | USB 2.0 | 4 Pce | ||
| USB 3.2 (Gen 2) | 2 Pce | |||
| USB v3.2 (Gen 2, Type C) | 1 Pce, - | |||

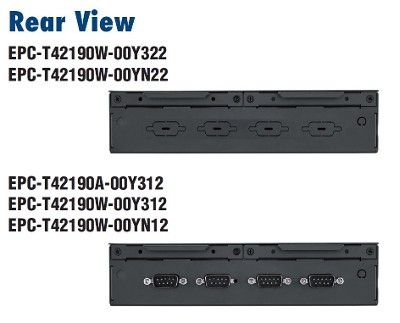

| Externe I/O (Rear Panel) | ||||
| Serial | RS-232 | DB-9 | 2 Pce, - | |
| RS-232 / 422 / 485 | DB-9 | 2 Pce, - | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Available Upon Request | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12V | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 45°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 85%, non-condensing | ||
| Dimensions | Form factor | Embedded System | ||
| Width | 188 mm | |||
| Deep | 188 mm | |||
| Height | 44,2 mm | |||
| Height units | 1 HE | |||
| Vibration | with SSD | 10-500 Hz, IEC68-2-6 (3G) | ||
| Weight | 1800 g | |||
| Controls | Power | 1 Pce | ||
| Remote | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Antenna holes | 2 Pce | |||
| Color | Black | |||
| Material | Steel | |||
| Mounting option | VESA, Wall Mount | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
