Embedded System
// Embedded System
// Intel N250
// Passive cooled
// 2 x Display
// 2 x Serial
// 4 x USB (Front page)
// 2 x G-LAN (Front page)
// 3 x M.2 Slot
// 10 to 36 volts
Sales only to business customers.
Delivery time: upon request

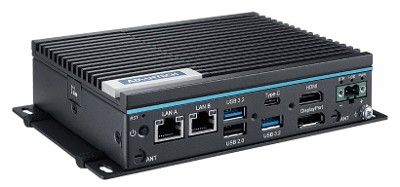

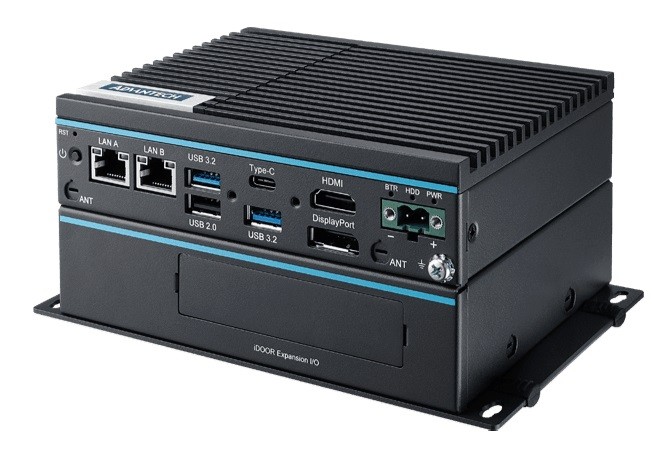

Basic Module: Advantech UNO-2372V3
| General information | ||||
| SKU / Item Number | UNO-2372V3 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| Product ID | UNO-2372V3-N2N1A | |||
| System | ||||
| Processor | Series | Intel Twin Lake | ||
| Number | Intel N250 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,8 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 4800 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| BIOS | AMI UEFI 64 Mbit SPI | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | PCIe ×1 (Gen 3), SATA III, USB 2.0, USB 3.2 Gen 1 | |||
| Supported dimensions | 3042, 3052 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×2 (Gen 3) | |||
| Supported dimensions | 2242 | |||
| Slot 3 | Key ID | E | ||
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Internal I/O | ||||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||

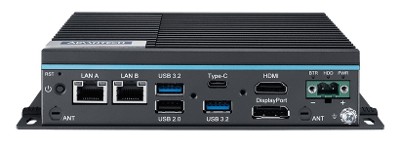

| Externe I/O (Front Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| DP USB-C | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 1 Pce | ||
| USB 3.2 (Gen 1) | 2 Pce | |||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||

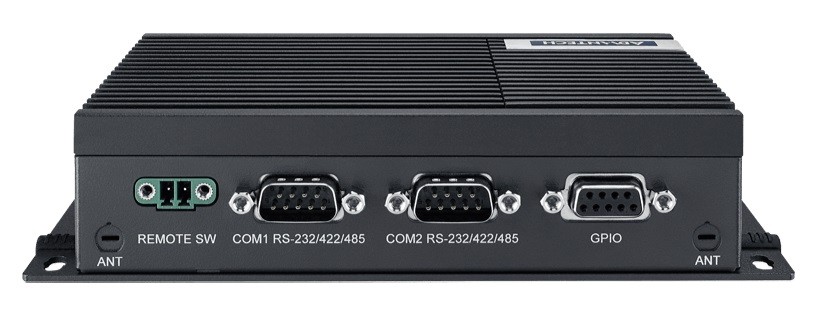

| Externe I/O (Rear Panel) | ||||
| Serial | RS-232 / 422 / 485 | DB-9 | 2 Pce | |
| Digital I/O | Quantity | 1 Pce | ||
| Bits | 8-bit | |||
| Connector | DB-9 | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 10 to 36 volts | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 10~36V | |||
| Cooling | ||||
| Implementation | Passive | |||
| Inserts | ||||
| Internal | 2.5" installation slot | 1 Pce | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | Embedded System | ||
| Width | 150 mm | |||
| Deep | 105 mm | |||
| Height | 75 mm | |||
| IP Rating | IP40 (completely) | |||
| Vibration | Vibration | 2G, 5 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Reference Standard | IEC 68-2-27 | ||
| with SSD | 50G | |||
| Weight | 1000 g | |||
| Controls | Power | 1 Pce | ||
| Power (terminal connection) | 1 Pce | |||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Battery | 1 Pce | |||
| Antenna holes | 4 Pce | |||
| Color | Dark grey | |||
| Material | Aluminum | |||
| Mounting option | DIN Rail, VESA, Wall Mount | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Windows Embedded, Linux | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| CCC | Yes | |||
| Additional certificates / compliance approvals | BSMI | |||
| RoHS compliant | Yes | |||
