Artessa IT AIT-B04

AIT-B04-I3G12, AIT-B04-I5G12, AIT-B04-I5G13, AIT-B04-I7G12, AIT-B04-I7G13, AIT-B04-IU5G14, AIT-B04-IU7G14

Embedded System

PRODUCT FEATURES

// Embedded System
// [Intel Core i3-1215U | Intel Core i5-1245U | Intel Core i5-1335U | Intel Core i7-1265U | Intel Core i7-1365U | Intel Core Ultra 5 Processor 125U | Intel Core Ultra 7 Processor 155U]
// Passive cooled
// 2 x Display
// [3 | 4] x USB (Front page)
// 2 x USB (Back side)
// 2 x G-LAN (Back side)
// 3 x M.2 Slot
// 19V

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Artessa IT AIT-B04

General information
SKU / Item NumberAIT-B04AIT-B04-I3G12, AIT-B04-I5G12, AIT-B04-I5G13, AIT-B04-I7G12, AIT-B04-I7G13, AIT-B04-IU5G14, AIT-B04-IU7G14
Product Basic Data
ManufacturerArtessa IT
System
ProcessorSeriesIntel Alder Lake, Intel Meteor Lake, Intel Raptor Lake
NumberIntel Core i3-1215U, Intel Core i5-1245U, Intel Core i5-1335U, Intel Core i7-1265U, Intel Core i7-1365U, Intel Core Ultra 5 Processor 125U, Intel Core Ultra 7 Processor 155U
CPU cores6 Pce, 10 Pce, 12 Pce
Threads8 Pce, 12 Pce, 14 Pce
Performance core base clock frequency1,3 GHz, 1,7 GHz, -
Performance Core Max Turbo Frequency4,3 GHz, 4,4 GHz, 4,6 GHz, 4,8 GHz, 5,2 GHz
Efficient-core base clock frequency0,8 GHz, 1,2 GHz, -
Efficient-core Max Turbo Frequency3,3 GHz, 3,4 GHz, 3,6 GHz, 3,8 GHz, 3,9 GHz
Cache10 MB, 12 MB
Thermal Design Power (TDP)15 W
ChipsetSoC (System on a Chip)
MemoryStructure262-pin SO-DIMM DDR5
Memory TypeDDR5
DIMM TypeUnbuffered SO-DIMM
Slots2 Pce
Maximum expansion64 GB, 96 GB
BIOSAMI UEFI BIOS
Graphics
ProcessorIntel Graphics, Intel Iris Xe Graphics, Intel UHD Graphics
Screens (Multi-display)2 displays
HDMIVersion2.1
DisplayPortVersion2.1
Extension
M.2Slot 1Key IDM
InterfaceNVMe
Supported dimensions2280
Slot 2Key IDM
InterfaceSATA III
Supported dimensions2280
Slot 3Key IDE
InterfaceWiFi + Bluetooth
Supported dimensions2230
M.2 Key IDsE, M
StorageM.2
Network
G-LANControllerChipsetRealtek RTL8111H (10/100/1000 Mbps), Realtek RTL8125BG-CG (10/100/1000/2500 Mbps)
Quantity2 Pce
Network2x G-LAN
Internal I/O
Serial ATASATA R3.0 (6 Gbit/s, 600 MB/s)1 Pce

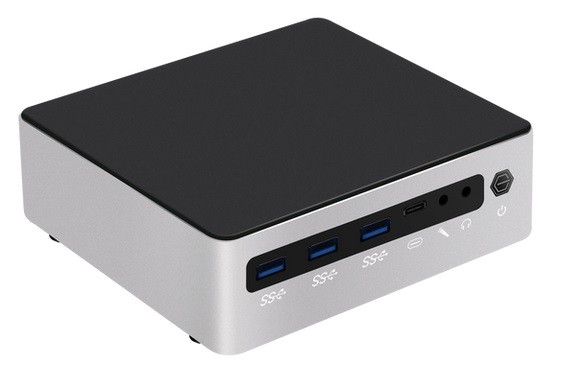

Externe I/O (Front Panel)
AudioLine Out1 Pce
Mic-In1 Pce
Thunderbolt-, Thunderbolt 4 USB Type-C
USBUSB 3.2 (Gen 2)3 Pce
USB v3.2 (Gen 2, Type C)1 Pce, -

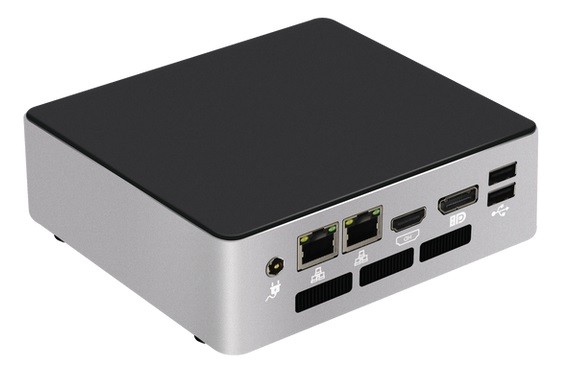

Externe I/O (Rear Panel)
DisplayHDMI1 Pce
DP++1 Pce
EthernetRJ-452 Pce
USBUSB 2.02 Pce
Watchdog Timer
Watchdog TimerYes
Watchdog timer (interval)Programmable via software (1 - 255 seconds)
Safety
Trusted Platform Module (TPM)Intel PTT (like TPM 2.0)
Power Supply
Typ (Input)DCWide RangeNo
Range19V
ConnectorDC Power Jack
Power supply - InputDC: 19V
Cooling
ImplementationPassive
Inserts
Internal2.5" installation slot1 Pce
Mechanical / Environment
TemperatureOperation-20° to 60°C
Storage-30°C to 70°C
Relative humidityOperation5 to 95%, non-condensing
DimensionsForm factorEmbedded System
Width135 mm
Deep125 mm
Height49 mm
Weight500 g
ControlsPower1 Pce
Status indicatorsPower1 Pce
ColorBlack / silver
MaterialAluminum, plastic

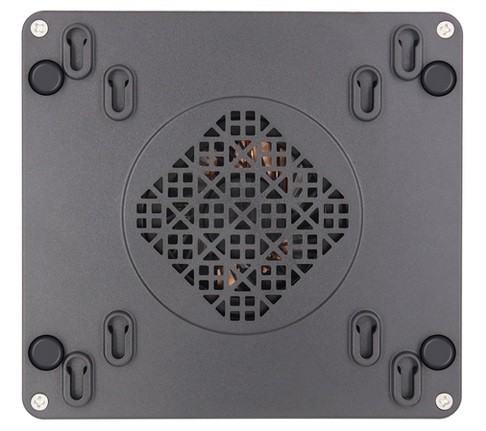

Mounting optionWall Mount
OS / Software
WindowsWindows 10 (64-bit)is supported
Windows 11Supported
LinuxDistributionLinux
Supported OSLinux, Windows
Certificates / Conformities
CEYes
FCCClass AYes
RoHS compliantYes
